SMA Male Stainless Steel RF Connector For MF147A / MF147B Cable
SMA Male Stainless Steel RF Connector For MF147A / MF147B Cable
SMA Male Stainless Steel RF Connector For MF147A / MF147B Cable
SMA Male Stainless Steel RF Connector For MF147A / MF147B Cable
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMA-J416G-1
Certification :
ISO-9001-2015
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1,000,00 Pieces Per Month
Delivery Time :
Within 5-7 workdays(for stocks)
Packaging Details :
Standard Export Carton
Item :
SMA RF Connector
Plating :
Passivated
Gender :
Male
Impedance :
50Ω
Frequency :
DC~18GHz
Lifetime :
500 Cycles
Body :
Brass
Application :
audio/vedio/microwave
Description

SMA Male Stainless Steel RF Connector for MF147A/MF147B Cable

The SMA RF coaxial connector, a compact high-frequency coaxial connector, is engineered in compliance with MIL-C-39012.
It boasts a small form factor, broad bandwidth capabilities, exceptional mechanical and electrical performance, and high reliability, among other benefits. Recognized as the most commonly utilized RF coaxial connector, it sees widespread application in areas such as microwave communication and microwave measurement apparatus. The superior series of connectors produced by our company supports frequencies up to 20GHz.

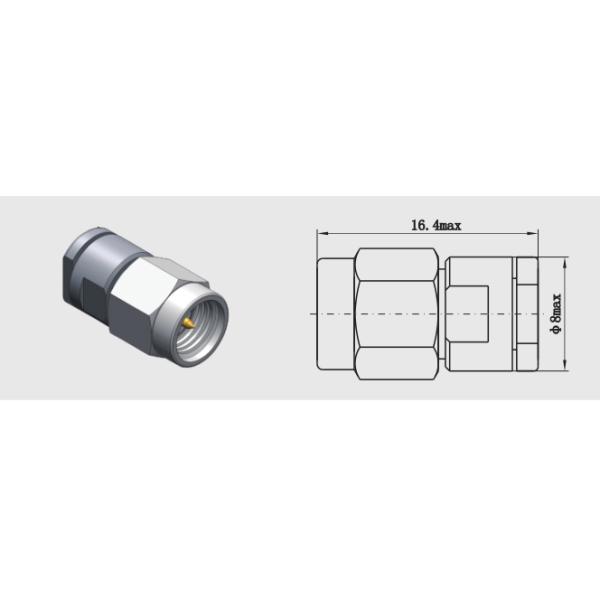

Detailed drawing:

SMA Male Stainless Steel RF Connector For MF147A / MF147B Cable

Model Cable Note
SMA-J416G-1 MF147A, MF147B Clamp

Key Features:

1.Ultra-miniature design: As an ultra-miniature coaxial cable connector, SMA is advantageous in size, making it suitable for applications where space is limited.
2.High-frequency applications: SMA connectors are commonly used in electronic systems operating at frequencies up to 18 GHz or even higher, making them popular for high-frequency RF connections.
3.Hexagonal interface: The external mating interface of the SMA connector is threaded and hexagonal in shape, allowing the use of a wrench for tightening to ensure a secure connection.

Specification of SMA Rf Connectors:

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance 50 Ohm
Frequency Range DC~18GHz
Rated Voltage 335 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance 1000 VRMS (Maximum sea-level)
Insulation Resistance ≥5000MOhm
Contact Resistance Outer conductor ≤2 mΩ
Center conductor ≤3 mΩ

Application:

In summary, SMA connectors are widely used in the RF and microwave fields due to their compact design, high-frequency signal support, variety of types, and good environmental adaptability.

Product Cataloge:

RF Adapter
SMA RF Connector
SSMP RF Connector
TNC RF Connector
N Type RF Connector
MCX/MMCX RF Connector
Millimeter Wave Connectors(2.4mm, 2.92mm)
RF Cable Assemblies
Waveguide To Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints

Interface Dimentions:

SMA Male Stainless Steel RF Connector For MF147A / MF147B Cable

Other Products:

SMA male stainless steel RF connector

SMA Male Stainless Steel RF Connector For MF147A / MF147B Cable

Model Cable Note
SMA-J416G-2 MF147A, MF147B Clamp

SMA male RF connector with Spring-loaded Armor

SMA Male Stainless Steel RF Connector For MF147A / MF147B Cable

Model Cable Note
SMA-J416G-2 MF147A, MF147B Clamp, With Spring-loaded Armor

NOTE:
We have over 10,000 types of SMA Connectors, if the connector you are using is not found, please contact us with your details.
