High Reliability SSMA(mini SMA)Female Right-angle bulkhead Connectors

SSMA series RF coaxial connectors are miniaturized versions of SMA connectors, characterized by their compact size, broad frequency bandwidth, and high reliability. They are extensively used in various sectors such as aviation, aerospace, and microwave communications.

Features:

1. Miniaturized Size: SSMA connectors are smaller than their SMA counterparts, making them suitable for applications where space is at a premium.

2. Broad Frequency Bandwidth: SSMA connectors are designed to operate over a wide range of frequencies, typically supporting up to 18 GHz or even higher.

3. High Reliability: These connectors are engineered to maintain stable connections in demanding environments, including high temperatures and vibration.

4. Low Reflection Loss: The design of SSMA connectors helps to minimize signal reflections, reducing losses and providing improved performance.

Specification of SSMA RF Connectors:

Note:The frequency of the model are based on the data in the product specification sheet.

Electronic and Material Characteristics
Impedance 50Ω
Frequency Range DC～30GHz
Rated Voltage 250 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance 750 VRMS (Maximum sea-level)
Insulation Resistance ≥5000MΩ
Center conductor Male Copper Alloy gold plated
Female Beryllium Bronze gold plated
Shell and other metal parts Copper Alloy gold plated
Crimping Sleeve Copper Alloy Nickel Plated
Insulator PTFE
Seal ring Silicon rubber
Durability 500 Cycles

Application:

1. Wireless Communication: In microwave links, point-to-point communication, and cellular base station antenna systems, SSMA connectors are used to connect RF (radio frequency) components.

2. Aerospace & Aeronautics: SSMA connectors are used in a variety of communication and navigation systems within the aerospace industry due to their high reliability and ability to withstand extreme conditions.

3. Test Equipment: In RF test and measurement equipment, SSMA connectors can be used to connect testing instruments with the equipment under test (EUT) or other RF components.

Product Cataloge:

RF Adapter
SMA RF Connector
SSMP RF Connector
TNC RF Connector
N Type RF Connector
MCX/MMCX RF Connector
Millimeter Wave Connectors(2.4mm, 2.92mm)
RF Cable Assemblies
Waveguide To Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints

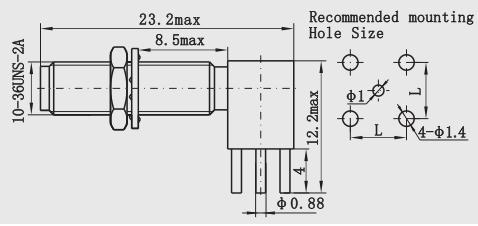

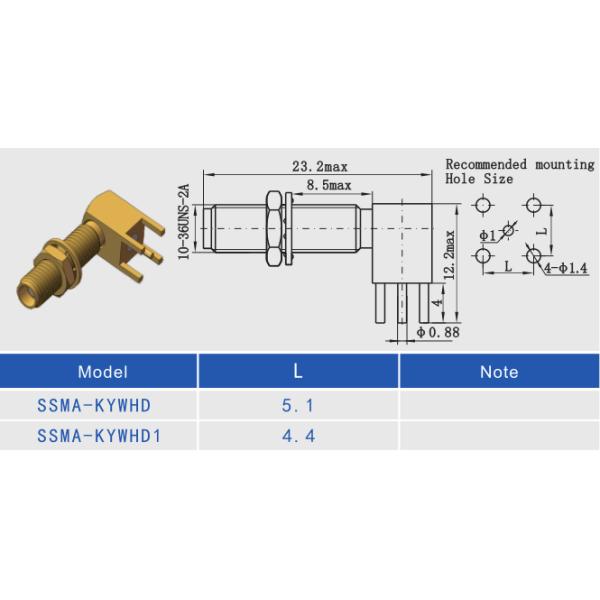

Outline Drawing:(Unit:mm)

High Reliability SSMA（mini SMA）Female Right-angle bulkhead Connectors

Related Product

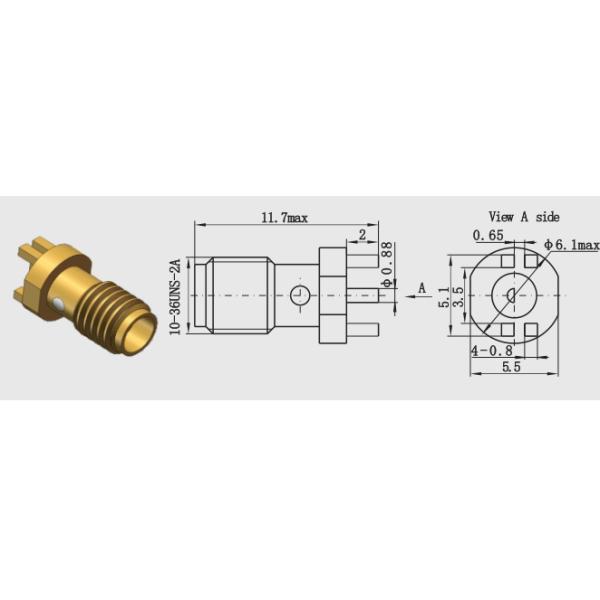

1.Mini SMA Microstrip Right-angle Connector for PCB

High Reliability SSMA（mini SMA）Female Right-angle bulkhead Connectors

Model No. Note
SSMA-KWHD41

2.SSMA Female RF Microstrip Connector for PCB

High Reliability SSMA（mini SMA）Female Right-angle bulkhead Connectors

Model No. Note
SSMA-KHD4

NOTE:
We have over 10,000 types of SMA Connectors, if the connector you are using is not found, please contact us with your details.
