Gold Plated SSMA Female 2-hole Flange RF Connector For 2#Semi-rigid / Semi-flexible Cable
Gold Plated SSMA Female 2-hole Flange RF Connector For 2#Semi-rigid / Semi-flexible Cable
Gold Plated SSMA Female 2-hole Flange RF Connector For 2#Semi-rigid / Semi-flexible Cable
Gold Plated SSMA Female 2-hole Flange RF Connector For 2#Semi-rigid / Semi-flexible Cable
Specifications
Brand Name :
ELT (Elite)
Model Number :
SSMA-KFB2-13
Certification :
ISO-9001-2015
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1,000,00 Pieces Per Month
Delivery Time :
Within 5-7 workdays(for stocks)
Packaging Details :
Standard Export Carton
Item :
SSMA RF Connector
Plating :
Gold-plated
Gender :
Female
Impedance :
50Ω
Type :
SSMA
Lifetime :
500Cycles
Body :
Brass
Application :
Audio/Vedio/Microwave
Description

Gold Plated SSMA Female 2-hole Flange RF Connector for 2#Semi-rigid/Semi-flexible Cable

SSMA series RF coaxial connectors represent the miniaturized versions of SMA connectors, distinguished by their reduced dimensions, wide frequency range, and high dependability. These connectors are widely deployed across diverse sectors including aviation, aerospace, and microwave communication technologies.

Key Features:

1. Good Mechanical Strength: Despite their reduced size, SSMA connectors still offer sufficient mechanical strength to ensure secure connections and resistance to pulling forces.

2. Compatibility: SSMA connectors are usually compatible with SMA and other similar connectors, offering flexibility between different systems.

3. Low Insertion Loss: The electrical design of SSMA connectors ensures low insertion loss within their operating frequency range, meaning that there is minimal loss of signal as it passes through the connector.

4. Sealing Ability: Some SSMA connectors are designed to provide a sealed connection, which is critical for applications that need to keep moisture and contaminants out in harsh environments.

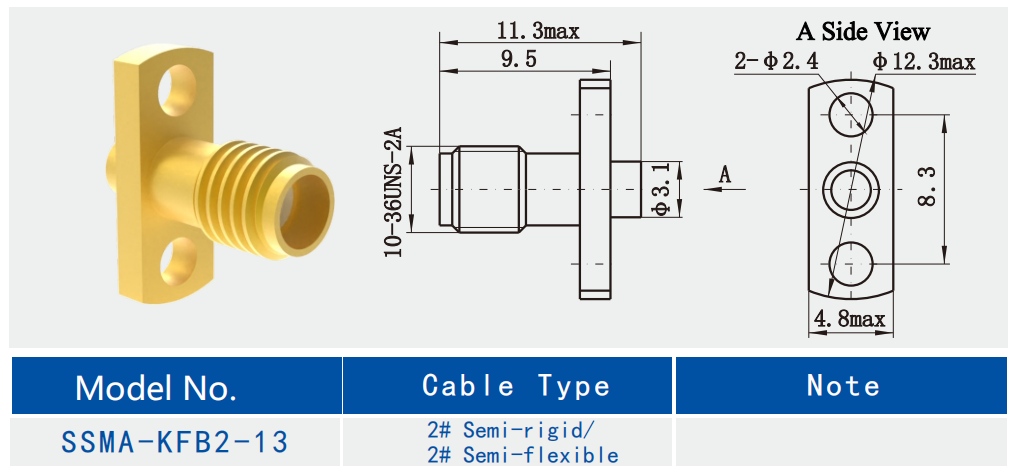

Outline Drawing:

Gold Plated SSMA Female 2-hole Flange RF Connector For 2#Semi-rigid / Semi-flexible Cable

Specifiacation of SSMA RF Connectors:

Note:The frequency of the model are based on the data in the product specification sheet.

Electronic and Material Characterials
Impedance 50Ω
Frequency Range DC~30GHz
Rated Voltage 250 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance 750 VRMS (Maximum sea-level)
VSWR ≤1.3
Insulation Resistance ≥5000MΩ
Center conductor Male Copper Alloy gold plated
Female Beryllium Bronze gold plated
Elastic Contact Beryllium Bronze Nickel Plated
Shell and Other Metal Parts Copper Alloy Gold Plated
Crimping Sleeve Copper Alloy Nickel Plated
Insulator PTFE
Seal ring Silicon rubber
Durability 500 Cycles

Application:

1. Research and Laboratory Applications: In scientific research settings, SSMA connectors can be used for building and testing high-frequency circuits and antenna designs.

2. RFID (Radio-Frequency Identification): Between RFID readers and tags, SSMA connectors can be used to improve signal quality and reading distances.

3. Broadcasting and Streaming: In broadcast television and streaming transmission equipment, SSMA connectors help ensure high-quality signal transmission.

Related Product:


1.Mini SMA (SSMA) Microstrip 4 Holes Flange Connector

Gold Plated SSMA Female 2-hole Flange RF Connector For 2#Semi-rigid / Semi-flexible Cable

Model Note
SSMA-KFD104 Microstrip flat parallel to either side of flange

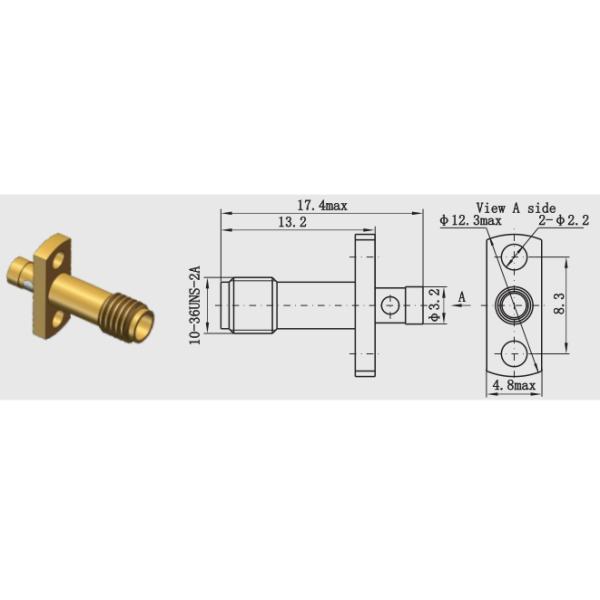

2.SSMA Female Flange RF Connectors for cable CXN3506

Gold Plated SSMA Female 2-hole Flange RF Connector For 2#Semi-rigid / Semi-flexible Cable

Model Cable
SSMA-KF506-2 CXN3506

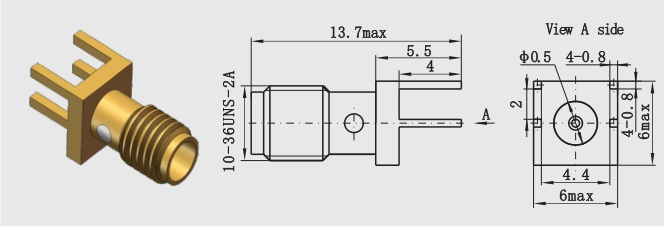

3.SSMA (Mini SMA) Microstrip KHD (female PCB) Connector

Gold Plated SSMA Female 2-hole Flange RF Connector For 2#Semi-rigid / Semi-flexible Cable

Model Note
SSMA-KHD

NOTE:
We have over 10,000 types of SMA Connectors, if the connector you are using is not found, please contact us with your details.
