SSMP Female Gold Plated 2-hole Flange RF Connector for CXN3506/MF108A Cable
SSMP Female Gold Plated 2-hole Flange RF Connector for CXN3506/MF108A Cable
SSMP Female Gold Plated 2-hole Flange RF Connector for CXN3506/MF108A Cable
SSMP Female Gold Plated 2-hole Flange RF Connector for CXN3506/MF108A Cable
Specifications
Brand Name :
ELT (Elite)
Model Number :
SSMP-KF506-3
Certification :
ISO-9001-2015
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1,000,000pcs per month
Delivery Time :
Within 5-7 workdays(for stocks)
Packaging Details :
Standard Export Carton
Product name :
SSMP Connector
Gender :
Female
Material :
Brass
Plating :
Gold Plated
Impedance :
50Ω
Frequency Range :
DC~50GHz
Rated Voltage :
170VRMS*
Insulation Resistance :
≥2000MΩ
Description

SSMP Female Gold Plated 2-hole Flange RF Connector for CXN3506/MF108A Cable

The SSMP interconnect system utilizes a floating female-to-female adapter, commonly known as a "bullet," to facilitate the stacking of boards equipped with an SSMP male PCB connector. The robust construction and capacity to tolerate radial and axial misalignment enable a blind-mate interconnect solution that can endure numerous mating/unmating cycles without any deterioration in electrical performance.

Specification
Note:The specific data of the model are based on the data in the product specification sheet.
Electrical Characteristics
Impedance 50Ω
Frequency Range DC~50GHz
Rated Voltage 170VRMS*
Dielectrics Voltage-resistance 500VRMS*
Insulation Resistance ≥2000MΩ
Center Resistance Outer conductor Normal≤3.5mΩ, Sealing≤5mΩ
Center conductor Normal≤8mΩ, Sealing≤30mΩ
DC~18GHz 18~26.5GHz 26.5~40GHz 40~50GHz
VSWR ≤1.25 ≤1.3 ≤1.4 ≤1.5
Material & Mechanical Characteristics
Center Conductor Male Sn-P Bronze/Kovar, Gold plated
Female Beryllium bronze, Gold plated
Elastic Contact Beryllium bronze Gold plated
Shell and other Metal Parts

Brass/Kovar Gold plated

Stainless steel Passivation
Insulators Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate ≤1.01325×10-3Pa·cm3/s

Features

1. High-Performance Computing (HPC): For HPC applications requiring large amounts of memory and high-speed data access, SSMP connectors offer an efficient way to configure high-capacity memory solutions.
2. Industrial and Medical Devices: In space-constrained industrial and medical applications, SSMP connectors help designers integrate more functionality into a smaller space while maintaining reliability and durability.

3.Telecommunications Equipment: Wireless and wired communication equipment can use SSMP connectors to increase spectral processing capabilities and signal processing abilities, supporting more complex communication protocols and higher data transfer speeds.

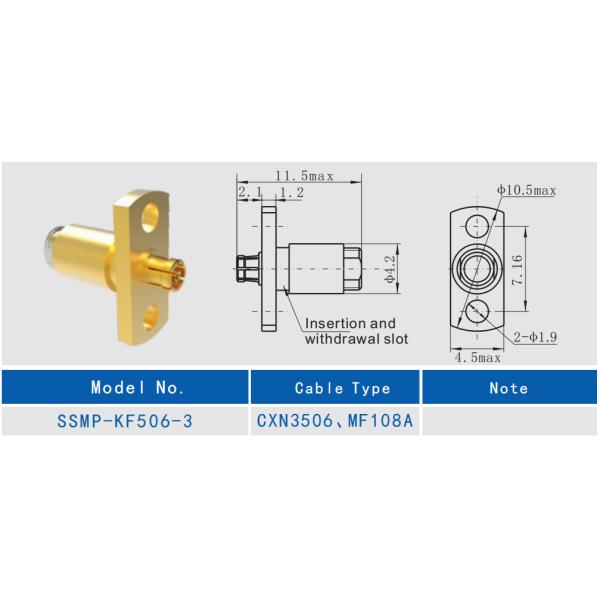

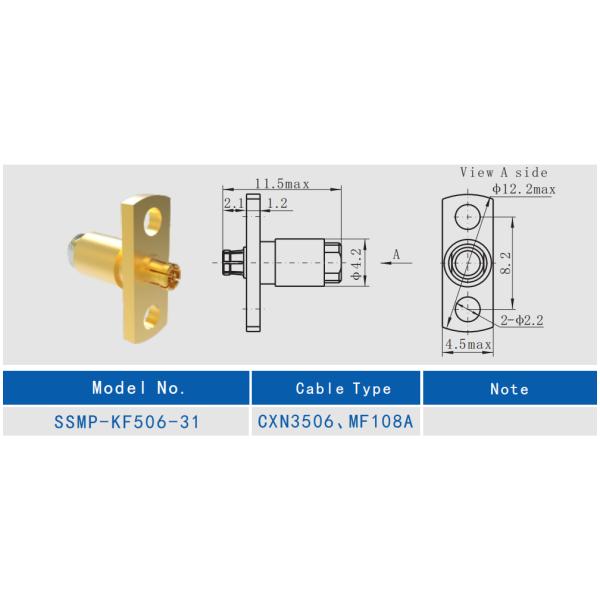

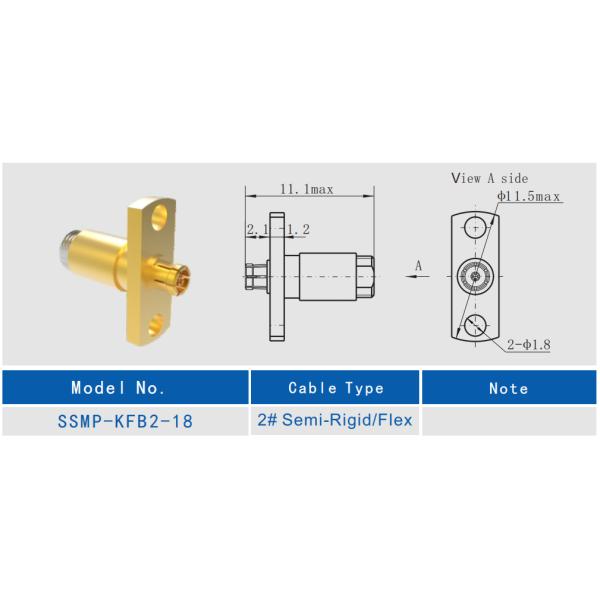

Detailed Drawing

SSMP Female Gold Plated 2-hole Flange RF Connector for CXN3506/MF108A Cable

Application:

1. Embedded Systems: In embedded systems, SSMP connectors can be used to increase I/O capabilities, enabling the system to handle more input/output operations and improve overall performance.

2. Storage Solutions: In the storage domain, SSMP connectors can be used to connect more storage modules, thereby increasing storage capacity and access speeds.

Related Products:

1.

SSMP Female Gold Plated 2-hole Flange RF Connector for CXN3506/MF108A Cable

SSMP Female Cable Connector for 1#Semi-Rigid/Flex Flange Mount Type

2.

SSMP Female Gold Plated 2-hole Flange RF Connector for CXN3506/MF108A Cable

SSMP Female Cable Right Angle Connector for 1#Semi-Rigid/Flex Flange Mount Type

3.

SSMP Female Gold Plated 2-hole Flange RF Connector for CXN3506/MF108A Cable

SSMP Female Cable Connector for 2#Semi-Rigid/Flex Flange Mount Type

4.

SSMP Female Gold Plated 2-hole Flange RF Connector for CXN3506/MF108A Cable

SSMP Female RF Cable Connector for CXN3506/MF108A Cable Flange Mount Type

5.

SSMP Female Gold Plated 2-hole Flange RF Connector for CXN3506/MF108A Cable

SSMP Female RF Cable Connector for CXN3506/MF108A Cable Flange Mount Type

6.

SSMP Female Gold Plated 2-hole Flange RF Connector for CXN3506/MF108A Cable

SSMP Female Right Angle(RA) for CXN3506/MF108A with Active Flange Mounting Type

Product Cataloge:

RF Adapter
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
RF Cable Assemblies
SMA/SSMA RF Connector
SMP/SSMP RF Connector
MCX/MMCX RF Connector
TNC RF Connector
N Type RF Connector
BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

Packaging Details:


* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
