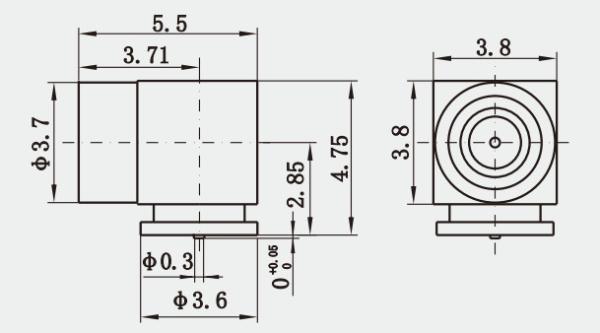

Brass PCB Mount Full Detent RF Connector SSMP Male Right Angle
Brass PCB Mount Full Detent RF Connector SSMP Male Right Angle
Brass PCB Mount Full Detent RF Connector SSMP Male Right Angle
Brass PCB Mount Full Detent RF Connector SSMP Male Right Angle
Specifications
Brand Name :
ELT (Elite)
Model Number :
SSMP-JWHD4
Certification :
CE ROHS
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1,000,000pcs per month
Delivery Time :
Within 3 weeks
Packaging Details :
Standard Export Carton
Interface depth :
2.11mm
Rated Voltage :
85VRMS*
Material :
Brass
Plating :
Gold Plated
Impedance :
50Ω
Frequency Range :
DC~50GHz
Interface :
Full Detent
Lifespan :
500Cycles
Description

Premium SSMP Male Right Angle PCB Mount Full Detent RF Connector: Superior Performance and Reliability

SSMPis a sub-miniature push-on RF coaxial connector, which has the characters of small size(compared with SMP), light weight,
wide working broadband, etc. Apply for the couple usage of board to board interconnect, for the situation of modular intensive
mounting, and the plug has two interface form -full detent and smooth bore.

Features

* Frequency Range: DC - 50GHz
* 50Ω Impedance; Blindmateable configuration
* Ability to withstand Radial/Axial Misalignment
* Board-mount, Field-replaceable, Bullets, Hermetic and Cable Connector configurations
* Custom Connectors Available​

Specification
Electrical Characteristics
Impedance 50Ω
Frequency Range DC~60GHz
Rated Voltage 85VRMS*
Dielectrics Voltage-resistance 250VRMS*
Insulation Resistance ≥2000MΩ
Center Resistance Outer conductor Normal≤2mΩ, Sealing≤5mΩ
Center conductor Normal≤6mΩ, Sealing≤25mΩ
DC~18GHz 18~26.5GHz 26.5~40GHz 40~50GHz
VSWR ≤1.25 ≤1.3 ≤1.35 ≤1.4
Material & Mechanical Characteristics
Center Conductor Male Sn-P Bronze/Kovar, Gold plated
Female Beryllium bronze, Gold plated
Elastic Contact Beryllium bronze Gold plated
Shell and other Metal Parts

Brass/Kovar Gold plated

Stainless steel Passivation
Insulators Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate ≤1.01325×10-3Pa·cm3/s

Brass PCB Mount Full Detent RF Connector SSMP Male Right Angle

Application:

1. Wide Range of RF Applications: SMPM connectors are suitable for various RF applications, including wireless communications, radar systems, aerospace, medical equipment, and more.

2. High-Performance Transmission: SMPM connectors offer excellent electrical performance, enabling high-speed and low-loss signal transmission to meet the demands of high-frequency applications.

3. Compact Design: With a PCB mounting style, SMPM connectors occupy minimal space, making them ideal for integration into compact electronic devices.

4. Excellent Mechanical Stability: Featuring a full-toothed slot design, SMPM connectors provide stable connections and high mechanical strength, making them suitable for harsh environmental conditions.

5. Easy Installation and Maintenance: SMPM connectors utilize threaded locking mechanisms for simple installation and reusability, reducing maintenance costs.

6. Reliable Sealing Performance: SMPM connectors employ high-quality sealing materials to ensure excellent sealing performance in harsh environments such as high pressure, high temperature, and chemical corrosion.

Product Cataloge:

RF Adapter
Waveguide to Coaxial Adapter
TNC RF Connector
N Type RF Connector
Microwave Rotary Joints
RF Cable Assemblies
SMA/SSMA RF Connector
SMP/SSMP RF Connector
MCX/MMCX RF Connector
J30J Series Connector
Glass-to-metal Hermetic Seals
BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm)

Packaging Details:


* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
