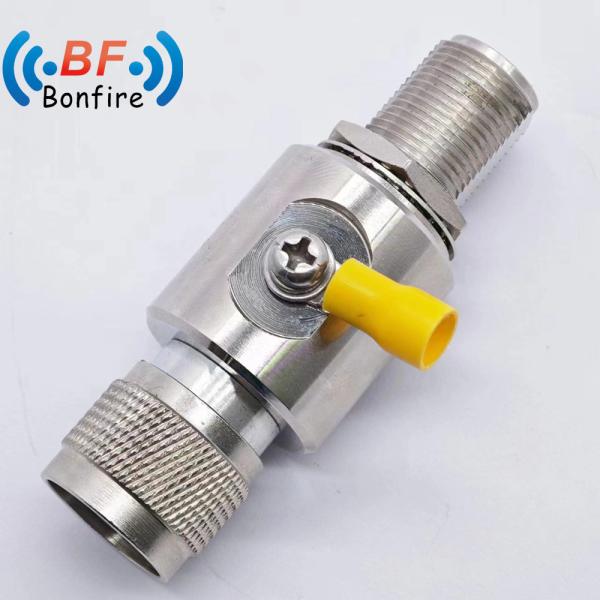

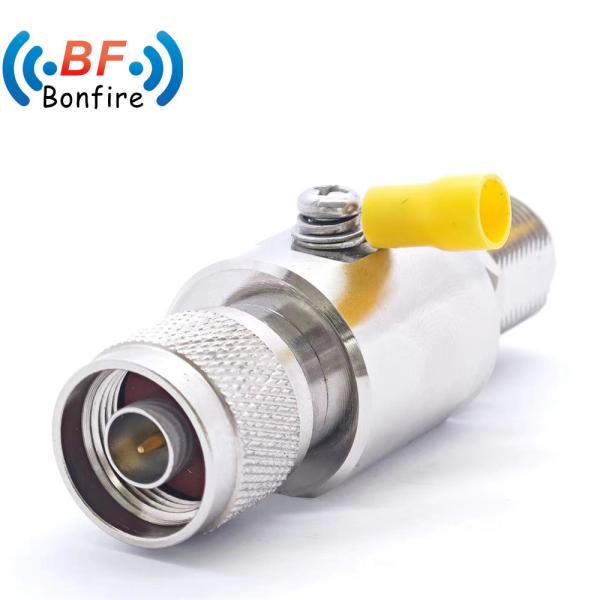

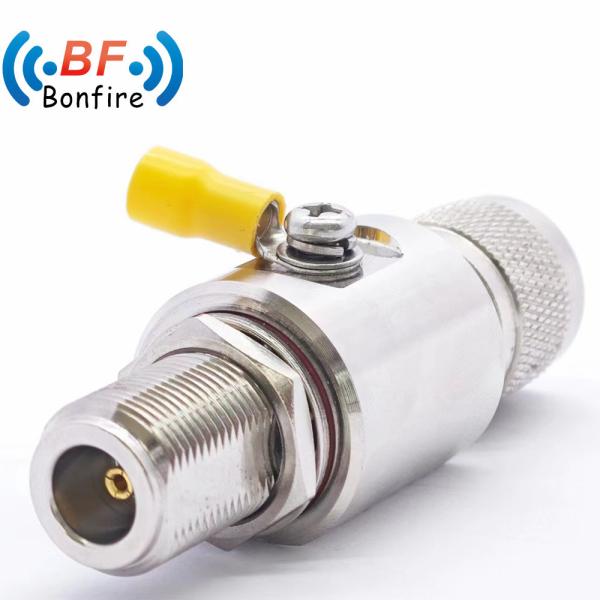

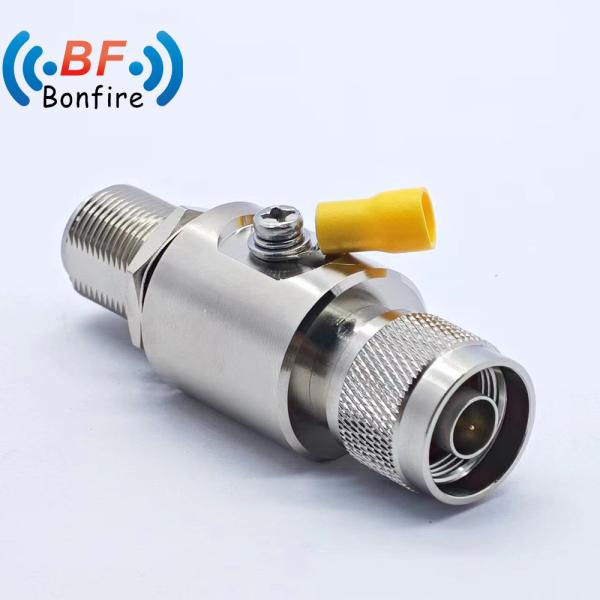

RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial
RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial
RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial
RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial
RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial
RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial
RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial
RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial
RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial
RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial
RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial
RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial
Specifications
Model NO. :
BLQ-XXXXX
Color :
Grey/Red/Black/Customized
Capality :
Ibs/Das Overall Project Delivery Capability
Interface :
N-M to N-F
Application :
Indoor/Outdoor(IP65)
Transport Package :
Carton/Palletizing
Specification :
see below data table
Trademark :
BF TECH
Origin :
China
Supply Ability :
1000000PCS/Year
Package Size :
8.00cm * 4.00cm * 4.00cm
Package Gross Weight :
0.220kg
Description

RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug CoaxialFEATURES:
★Wide frequency band, wide coverage.
★PIM optimized design.
★Ideal for all kind of IBS/DAS/PDAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.

Specifications:

Frequency Range(MHz) DC-6000
VSWR DC-6G≤1.2
Insertion Loss DC-6G≤0.25
Dielectric Withstanding Voltage ≥2500V RMS, 50HZ at sea level
Working Voltage ≤1000V RMS, 50HZ at sea level
Rated DC voltage(V) 90
Maximum Impluse Discharge Current(KA) 15
Ground Wire Diameter(mm²) 4
Dielectric Resistance(MΩ) ≥ 5000
Contact Resistance(mΩ) Center Contact ≤ 0.4
Out Contact ≤ 0.4
Durability ≥ 500
Transmission Power(W) 200
Impedance(Ω) 50
RF Connector In: N-M/Out: N-F
Color Custom
Relative humidity 5%~95%
Operating Temperature(°C) -40 ~ +85
Applications Indoor/Outdoor(IP67)

RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug CoaxialRF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial


RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug CoaxialRF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial

RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial
RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial
RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial
RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial
RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial
RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial
RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial
RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial
RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial

RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial

All our products can satisfy :

1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid

All our products category :

RF Antenna , RF combiner, Power Splitter , Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.

We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .


Customers we served :

HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.

Cooperate Once, Replace Never !

RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial

RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug CoaxialRF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial

RF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug CoaxialRF Arrester Protector UHF Jack So239 Female Bulkhead to UHF Male Pl259 Plug Coaxial
