DuPont IntegraTec XP 77 IGe High-Flux PVDF Membrane for Large-Scale Water Treatment

• Product Description:

  The DuPont IntegraTec XP 77 IG ultrafiltration module delivers industry-leading performance for demanding industrial water treatment applications. Engineered with advanced PVDF hollow-fiber technology, it combines exceptional filtration efficiency with robust durability to reduce operational costs and system footprint.

  Key Features

  1. Superior Filtration Efficiency

     • 0.03 µm nominal pore size: Effectively removes bacteria, viruses, colloids, and particulates, providing optimal protection for downstream processes like reverse osmosis (RO).

     • High-flux design: 35% higher permeability than previous-generation modules, achieving a filtrate flux of 40–110 LMH (24–65 gfd) at 25°C for increased productivity.

  2. Robust Construction & Reliability

     • PVDF hollow-fiber membrane: Exceptional mechanical strength and chemical resistance (pH 2–11) for extended service life in aggressive water conditions.

     • U-PVC housing: Eliminates the need for external pressure vessels, reducing installation costs and complexity.

  3. Optimized Operational Economics

     • Outside-in flow configuration: Tolerates feedwater with high suspended solids (up to 300 µm), minimizing pretreatment requirements and reducing backwash volume by 30% compared to inside-out designs

     • Innovative end-cap design: Enables direct inter-module connections, simplifying piping and saving space.

  4. Industrial-Grade Resilience

     • Max feed pressure: 6.25 bar (90.65 psi) at 20°C, withstanding demanding industrial environments.

     • Chemical tolerance: Compatible with ≤2,000 mg/L NaOCl for intensive cleaning

Product Specifications

Figure 1: XP77 and XP77 IG (8-inch diameter)

Operating Parameters

The difference between 28XX and 26XX

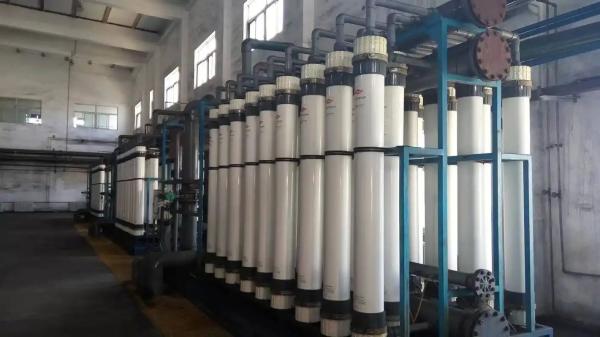

MODULE INSTALLATION

For application cases, please click:https://www.fgwater.com/Industries/
