Reverse Osmosis Pre -Treatment Tanks High-Pressure Resistant For Industrial Water Treatment
Reverse Osmosis Pre -Treatment Tanks High-Pressure Resistant For Industrial Water Treatment
Reverse Osmosis Pre -Treatment Tanks High-Pressure Resistant For Industrial Water Treatment
Reverse Osmosis Pre -Treatment Tanks High-Pressure Resistant For Industrial Water Treatment
Specifications
Brand Name :
Fenigal
Model Number :
3696
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Supply Ability :
60000 Units per Month
Packaging Details :
standard export packing
Size(inch) :
3687
Diam&Height(mm) :
φ900×2400
Opening(inch) :
Top&Bottom Opening 6" Thread
Design Flow Rate(T/H) :
13.2～16.2
Description

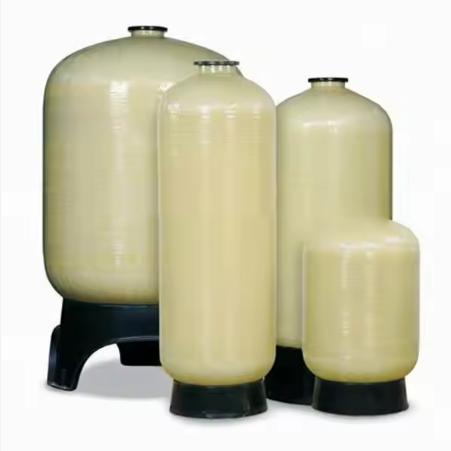

Reverse osmosis pre-treatment tanks are constructed with high-quality composite HDPE liners, crafted using blow molding technology to deliver a continuous, seamless inner shell. The epoxy resin system and fiberglass filament-wound outer shell reinforce the liner, providing exceptional strength for high-pressure applications—critical for reliable performance in water treatment processes.

Operating at a maximum temperature of 49℃, these tanks undergo rigorous testing: 250,000 pressure cycle tests from 10psi to 150psi, ensuring durability under fluctuating pressure conditions. They are available in a range of colors—natural, blue, gray, black, green, yellow, red—with custom colors offered on request, adapting to diverse industrial aesthetics.

Their applications are versatile: ideal for multi-layer media industrial water treatment, water softening, sand-water filtration, and activated carbon filtration. This flexibility makes them a staple in sectors requiring precise water purification.

A notable industrial application is a chemical plant that integrated reverse osmosis pre-treatment tanks (size 3696 inches, φ900×2400mm, top&bottom 6" flange openings) into its water treatment system. Operating at 13.2～16.2 T/H, the tanks pre-treated water with sand and activated carbon, removing impurities before reverse osmosis. Over a year, the system maintained stable flow rates, with the tanks’ seamless design preventing leaks and reducing maintenance by 30% compared to traditional steel tanks.

Size(inch)

Diam&Height(mm)

Opening(inch)

Design Flow Rate(T/H)

3696

φ900×2400

Top&Bottom Opening 6" Flange

13.2～16.2
