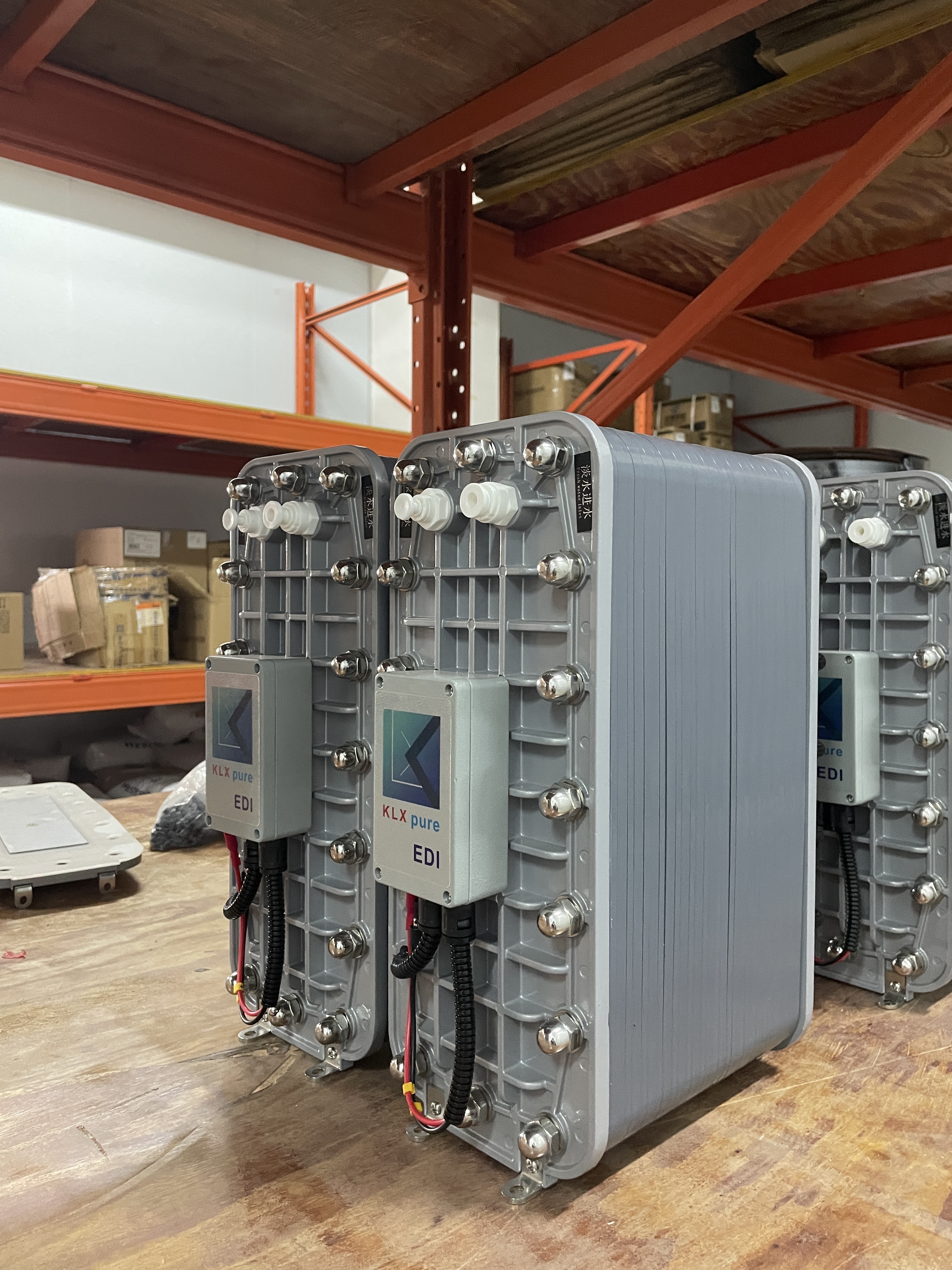

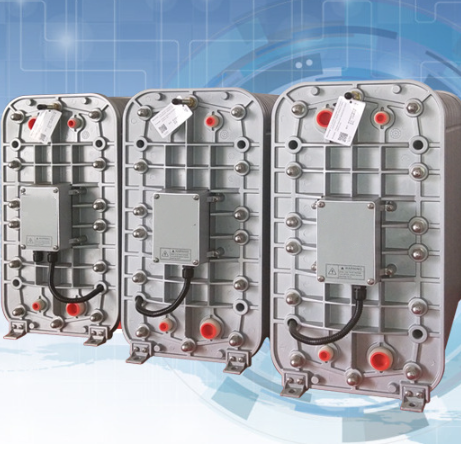

KXA-600 EDI Module 5-6.5 M3/H Zero Chemical Process for Electronics
KXA-600 EDI Module 5-6.5 M3/H Zero Chemical Process for Electronics
KXA-600 EDI Module 5-6.5 M3/H Zero Chemical Process for Electronics
KXA-600 EDI Module 5-6.5 M3/H Zero Chemical Process for Electronics
KXA-600 EDI Module 5-6.5 M3/H Zero Chemical Process for Electronics
KXA-600 EDI Module 5-6.5 M3/H Zero Chemical Process for Electronics
Specifications
Brand Name :
China brand
Model Number :
KXA-600
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Supply Ability :
60000 Units per Month
Delivery Time :
5- 8 work days
Packaging Details :
standard export packing
Water production flow(m³/h) of this stack :
5-6.5
Standard water production flow(m³/h) of this stack :
6
EDI Module Resistivity of produced water (MO·cm) :
15-18.25
The Module Stack Silicon and boron removal rate (%) :
90-95
This Module Advantages :
optimize costs, ​​Zero-Chemical Process
Main Application :
Electronics/Semiconductors
Origin :
China
Description
China EDI Modules KXA Series KXA-600 5-6.5 M3/H Zero Chemical Process
Product Specifications
Attribute Value
Water production flow(m³/h) of this stack 5-6.5
Standard water production flow(m³/h) of this stack 6
EDI Module Resistivity of produced water (MO·cm) 15-18.25
The Module Stack Silicon and boron removal rate (%) 90-95
This Module Advantages optimize costs, Zero-Chemical Process
Main Application Electronics/Semiconductors
Origin China
Product Overview

Cost-effective choice EDI Modules KXA Series KXA-600 5-6.5 M3/H For Electronics/Semiconductors

KXA-600 EDI Module 5-6.5 M3/H Zero Chemical Process for Electronics

EDI is a revolutionary ultra-pure water technology developed in the 1990s, representing a significant advancement in pure water production. EDI replaces traditional ion exchange technology to produce stable deionized water without chemical regeneration or downtime for resin addition. This enables continuous water production with stable quality while minimizing equipment investment and operating costs.

Key Advantages of Chinese EDI Technology

Chinese-made EDI membrane stacks combine precision engineering, materials science, and sustainable innovation - proven in demanding global industries:

1. Engineered for Extreme Performance

Chinese stacks like KXA-series achieve stabilized 18.2 MΩ*cm output by solving core technical challenges:

  • Ionic "Dead Zones" Defeated: Patented Full-Chamber Resin Injection™ fills all fluid pathways, boosting ion transfer efficiency by 90%
  • Membrane Breakthroughs: Nano-ceramic reinforced ion-exchange membranes tolerate 10x higher TDS shocks
  • Corrosion Immunity: Ruthenium-iridium alloy electrodes withstand 0.1 ppm chlorine residuals
2. Built-In Sustainability
  • Concentrate Minimization: Intelligent polarity reversal enables <5% wastewater vs. 10-15% in conventional systems
  • Carbon-Neutral Manufacturing: 78% of production powered by renewables
  • Circular Design: 95% material recovery rate (resins, titanium, polymers)
3. Proven Reliability
  • Operates at 45°C ambient temperature with zero purity decay
  • 28+ months operation without cleaning or membrane changes
  • Maintains <1 ppb silica at -25°C inlet temperatures
KXA-600 EDI Module 5-6.5 M3/H Zero Chemical Process for Electronics
Key Features
  • Full filling technology of the middle partition for superior water quality
  • No salt addition or concentrate water circulation required
  • Excellent electrical performance with high current efficiency
  • Low voltage operation with minimal energy consumption
  • Parallel pipeline design with standard threaded interfaces
  • Leak-proof structural design
KXA-600 EDI Module 5-6.5 M3/H Zero Chemical Process for Electronics KXA-600 EDI Module 5-6.5 M3/H Zero Chemical Process for Electronics
Applications
  • Purified water production
  • Feed to WFI (Water For Injection) stills
  • Steam generation / boiler feed during power generation
  • Microelectronics/semiconductor production
  • High quality makeup demineralized water
  • Biomedical and laboratory use
  • Pharmaceutical compounds pretreatment
  • Surface finishing
  • Chemical manufacturing
  • Food and beverage industry
Product Specifications
Product name KXA Series
Feature The middle partition is fully filled with technology, and the water quality is good.
Brand China brand
Usage Water Filter
Model KXA-50 KXA-100 KXA-200 KXA-300 KXA-400 KXA-500 KXA-600 KXA-700
Water flow range(m³/h) 0.3-0.7 0.5-1.4 1.5-2.5 2.5-3.5 3-4.5 4.5-5 5-6.5 5.5-7.5
Standard water flow rate(m³/h) 0.5 1.0 2.0 3.0 4.0 5.0 6.0 7.0
Resistivity of produced water (MO*cm) 15-18.25 15-18.25 15-18.25 15-18.25 15-18.25 15-18.25 15-18.25 15-18.25
Silicon and boron removal rate (%) ≥99 ≥99 ≥99 ≥99 ≥99 ≥99 ≥99 ≥99
Recovery rate% 90-95 90-95 90-95 90-95 90-95 90-95 90-95 90-95
About FG Water Technologies

FG Water Technologies (www.fgwater.com) is part of Wuxi Fenigal Science and Technology Co. Ltd., a high-tech entity specializing in water treatment equipment design, manufacturing, and global distribution for industrial sectors.

We focus on water treatment technology research, equipment development, manufacturing, and international shipment. Our product range includes seawater reverse osmosis (SWRO) systems, brackish water reverse osmosis (BWRO), ultrafiltration (UF) systems, EDI equipment, and ion exchange softeners.

Our systems serve food and beverage, pharmaceutical, chemical, power, and municipal water treatment industries across more than 20 countries worldwide.
