PRO-FD40160 1TPH Brackish Water Reverse Osmosis System SS304 Skid Mount 2.1kW TDS
PRO-FD40160 1TPH Brackish Water Reverse Osmosis System SS304 Skid Mount 2.1kW TDS
PRO-FD40160 1TPH Brackish Water Reverse Osmosis System SS304 Skid Mount 2.1kW TDS
PRO-FD40160 1TPH Brackish Water Reverse Osmosis System SS304 Skid Mount 2.1kW TDS
Specifications
Brand Name :
Fenigal
Model Number :
PRO-FD40160
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Supply Ability :
60000 Units per Month
Packaging Details :
standard export packing
Equipment Installed Power :
1.7kW-380-415V, 50Hz
Operating Pressure :
150-300 psi
Total Weight :
680KG
Electrical Power :
3.0kW-380-415V,50HZ
Size :
Depends,1750*550*1650mm
Pretreatment :
2xSS304 Tanks
Equipment Process :
SF-ACF-RO
Weight :
220
System Material :
Stainless steel 304 Tank, UPVC pipe
Voltage :
3.0kW-380-415V,50HZ
Power Supply Required :
5.5kW-380-415V, 50Hz
Water Temp :
5~35˚C
Core Components :
Pump, RO membrane,Tanks
Capacity :
Varies depending on model
Product Origin :
China
Description

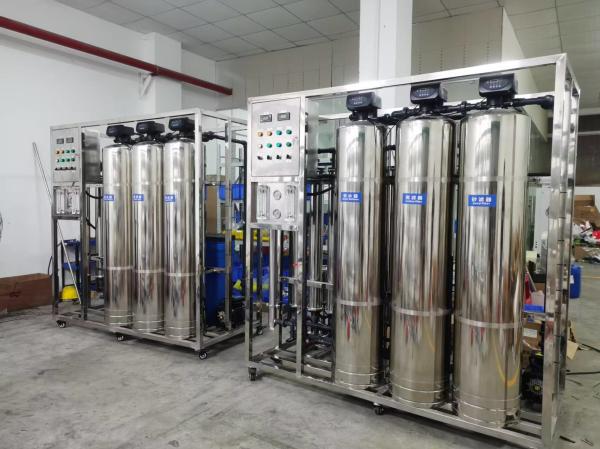

Brackish Water Reverse Osmosis System PRO-FD40160: Efficient Solution for Clean Water Production

In today’s water-scarce landscape, the PRO-FD40160 Brackish Water Reverse Osmosis (RO) System emerges as a reliable solution for converting high-TDS water into potable or industrial-grade water. Designed to handle feed water with TDS levels up to 2000ppm, this skid-mounted unit combines durability, efficiency, and user-friendly operation, making it ideal for commercial, industrial, and remote water treatment applications.

Key Features & Technical Specifications

  • Output Capacity: 1 TPH (6,400 GPD), suitable for mid-scale water needs.
  • Membrane Configuration: Single-pass 4"x4 membranes (optional Filmtec/Hyranautics), ensuring high rejection rates for salts and impurities.
  • Construction: SS304 skid-mount frame for corrosion resistance and easy installation.
  • Power & Voltage: 2.1kW, 380-415V/50Hz (custom voltages available).
  • Pretreatment System: Dual FRP tanks with SF-ACF (sand filter - activated carbon filter) process, removing suspended solids and organic matter.

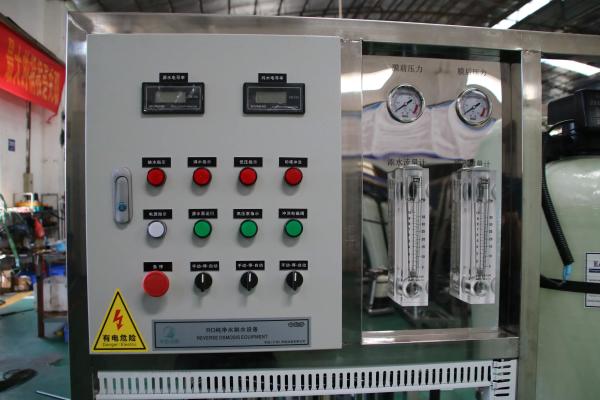

  • Control & Monitoring: IC control unit, TDS indicator, pressure gauges, flow meters, and LP/HP switches for safe, automated operation.
  • Pipework: uPVC water pipes for chemical resistance and long-term durability.

Process Flow & Efficiency

The PRO-FD40160 employs a streamlined SF-ACF-RO process:


  1. Pretreatment: Feed water first passes through sand filters to remove particulates, followed by activated carbon filters to adsorb organic compounds and chlorine, protecting the RO membrane from damage.
  2. Reverse Osmosis: The core stage uses high-pressure pumps to drive water through the RO membrane, rejecting up to 99% of dissolved solids, salts, and contaminants.
  3. Control & Monitoring: Real-time TDS monitoring and pressure switches ensure optimal performance, while operational indicators simplify maintenance.


This design minimizes energy consumption (2.1kW installed power) and maximizes water recovery, making it an eco-friendly choice for brackish water treatment.

Applications & Benefits

  • Industrial Use: Boiler feed water, cooling tower make-up, and process water in manufacturing.
  • Municipal & Community Systems: Small-scale drinking water supply for remote areas or islands.
  • Commercial Settings: Hotels, resorts, and hospitals requiring consistent water quality.
Key Benefits:UYJHMNI]K,
  • Compact skid-mount design reduces installation time and space requirements.
  • High-quality SS304 and uPVC materials ensure longevity and low maintenance.
  • Flexible voltage options and modular components allow customization for global markets.
  • Compliance with feed water TDS<2000ppm makes it suitable for a wide range of brackish water sources.


The PRO-FD40160 Brackish Water Reverse Osmosis System balances performance, durability, and energy efficiency, addressing critical water treatment needs in various sectors. Its robust design and advanced controls make it a smart investment for organizations seeking reliable, high-quality water production. For inquiries or customizations, contact our team to explore how this system can meet your specific requirements.

PRO-FD40160 1TPH Brackish Water Reverse Osmosis System SS304 Skid Mount 2.1kW TDS<2000ppm
