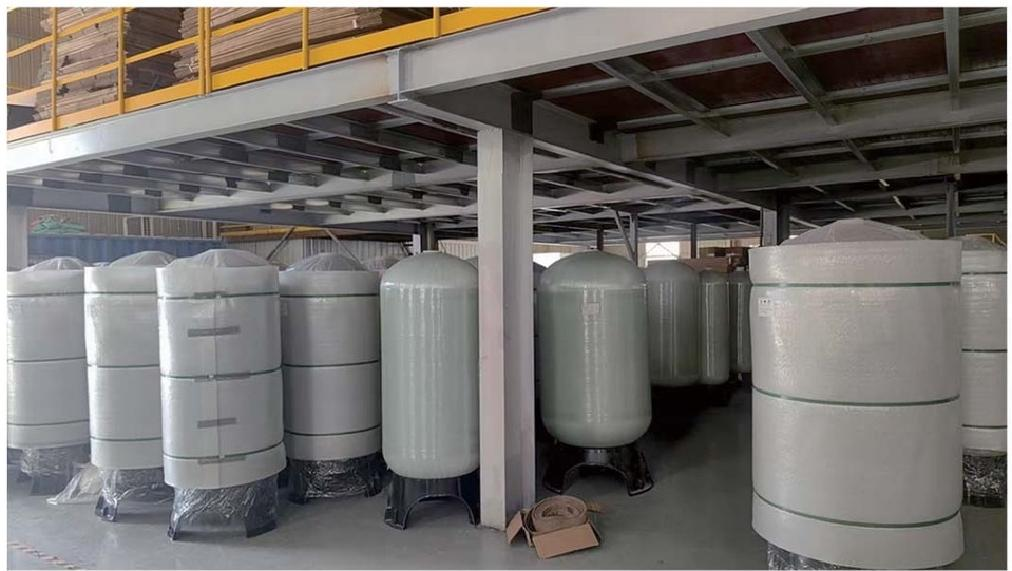

Industrial Grade Water Treatment FRP Tank With Flange High Strength Connection
Industrial Grade Water Treatment FRP Tank With Flange High Strength Connection
Industrial Grade Water Treatment FRP Tank With Flange High Strength Connection
Industrial Grade Water Treatment FRP Tank With Flange High Strength Connection
Industrial Grade Water Treatment FRP Tank With Flange High Strength Connection
Industrial Grade Water Treatment FRP Tank With Flange High Strength Connection
Specifications
Brand Name :
China brand
Model Number :
Various models available
Certification :
CE/UL/NSF
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10,000 set per month
Delivery Time :
5-8 working days after payment received
Packaging Details :
Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized
Nominal Size(inch) :
Various size available
Body Dimensions ⌀×H :
Multiple options
Opening Size(inch) :
Multiple options
Design Flow Rate(T/H) :
Multiple options
The Original of the tank :
China
Key Benefits :
Easy Maintenance And Upkeep,Corrosion resistant and no leak
Product Main Material :
FRP or reinforced PP
Usage :
Industry, Agriculture, Chemical，Water Softener，Industrial Water Treatment
Description

Industrial Grade Water Treatment FRP Tank With Flange High Strength Connection

Industrial Grade Water Treatment FRP Tank With Flange High Strength Connection

Industrial Grade Water Treatment FRP Tank With Flange High Strength Connection

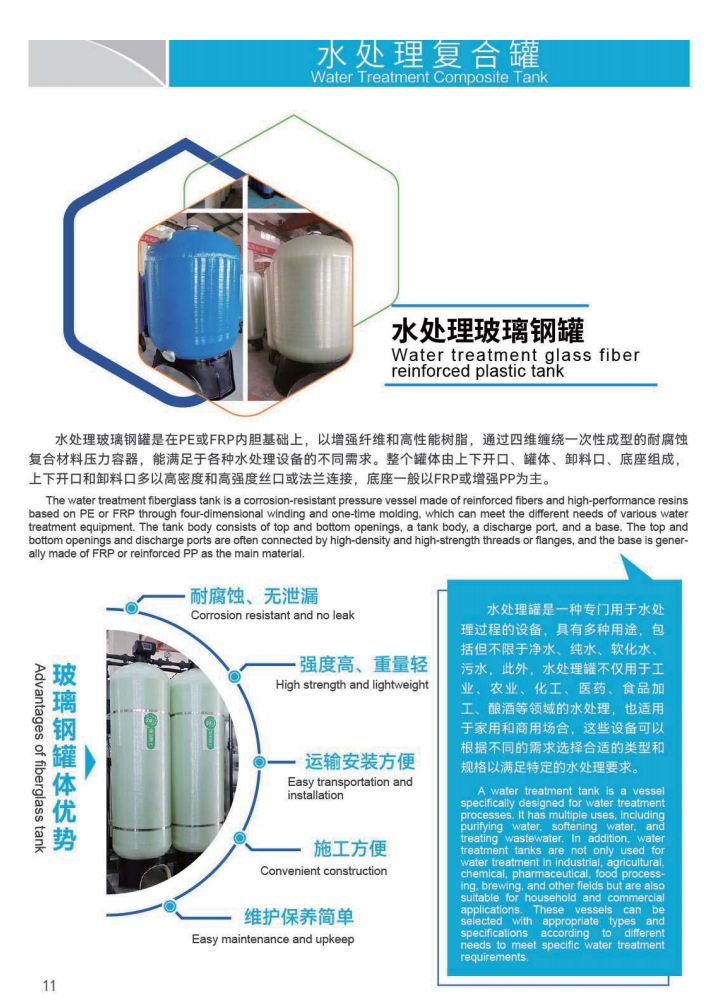

Water treatment tanks are core components in purification systems, engineered for processes including filtration, softening, desalination, and wastewater treatment. Utilizing physical/chemical separation technologies, they efficiently remove contaminants (e.g., sediments, heavy metals, pathogens) to produce water ranging from industrial ultrapure grades to potable drinking water.

Key Applications

Sector Functions
Industry Boiler feed water, cooling tower treatment, electroplating effluent purification
Energy/Tech Semiconductor UPW, PV cell rinsing, nuclear plant coolant systems
F&B Brewing water softening, bottling line sterilization, FDA/NSF-compliant process water
Pharma Pharmaceutical PW/WFI, bioreactor media preparation
Municipal Household purification, commercial drinking stations, greywater recycling
Agriculture Irrigation desalination, aquaculture water treatment, hydroponic solutions

Technical Adaptability

  • Material Options:

    • Industrial: FRP tank + PE liner (chemical resistance), 316L stainless steel (hygienic)

    • Residential: Food-grade PP, reinforced engineering plastics

  • Functional Extensions:

    • Integrated pressure ports, automatic backwash, multi-tank parallel systems

    • Compatible with activated carbon/ion exchange/RO/UV modules

  • Customization:

    • Capacity: 50L~50m³ | Pressure: 0.6~2.5MPa | Vertical/horizontal configurations

These tanks deliver corrosion resistance, extended service life, and minimal maintenance, serving as critical infrastructure for sustainable water reuse across industries.

Industrial Grade Water Treatment FRP Tank With Flange High Strength Connection

尺寸(英寸)

直径&高度(mm)

开口(英寸)

设计流量(T/ H )

0818

φ200×450

顶部开口2.5英寸螺纹

0.1～0.2

0835

φ200×890

顶部开口2.5英寸螺纹

0.2～0.4

0844

φ200×1100

顶部开口2.5英寸螺纹

0.2～0.5

1035

φ250×890

顶部开口2.5英寸螺纹

0.5～1.0

1054

φ250×1400

顶部开口2.5英寸螺纹

0.5～1.5

1254

φ300×1400

顶部开口2.5英寸螺纹

1.6～2.2

1265

φ300 ×1650

顶部开口2.5英寸螺纹

2.0～2.5

1354

φ325 ×1400

顶部开口2.5英寸螺纹

2.0～2.5

1365

φ325×1650

顶部开口2.5英寸螺纹

2.0～2.5

1454

φ350×1400

顶部开口2.5英寸螺纹

2.5～3.0

1465

φ350×1650

顶部开口2.5英寸螺纹

2.5～3.0

1654

φ400×1400

顶部开口2.5英寸螺纹

3.2～4​​.5

1665

φ400×1650

顶部开口2.5英寸螺纹

3.2～4​​.5

2069

φ500×1750

顶部开口4英寸螺纹

4.5～6.0

2069

φ500×1750

顶部和底部开口 4” 螺纹

4.5～6.0

2474

φ600 ×1900

顶部开口4英寸螺纹

6.2～8.2

2474

φ600×1900

顶部和底部开口4英寸螺纹

6.2～8.2

3074

φ750×1900

顶部开口4英寸螺纹

7.2～12.2

3074

φ750×1900

顶部和底部开口4英寸螺纹

7.2～12.2

3674

φ900×1900

顶部开口4英寸螺纹

13.2～16.2

3674

φ900×1900

顶部和底部开口4英寸螺纹

13.2～16.2

3687

φ900×2200

顶部开口4英寸螺纹

13.2～16.2

3687

φ900×2200

顶部和底部开口4英寸螺纹

13.2～16.2

3696

φ900×2400

顶部和底部开口6英寸法兰

13.2～16.2

4074

φ1000×1900

顶部和底部开口4英寸螺纹

17.0～23.0

4074

φ1000×1900

顶部和底部开口4英寸螺纹

17.0～23.0

4087

φ1000×2200

顶部和底部开口4英寸螺纹

17.0～23.0

4096

φ1000×2400

顶部和底部开口6英寸法兰

18.0～25.0

4887

φ1200×2200

顶部和底部开口6英寸法兰

28.0～38.0

4896

φ1200×2400

顶部和底部开口6英寸法兰

28.0～38.0

6096

φ1500×2400

顶部和底部开口6英寸法兰

38.0～55.0

6396

φ1600×2400

顶部和底部开口6英寸法兰

38.0～55.0

7296

φ1800×2400

顶部和底部开口6英寸法兰

55.0～80.0

8096

φ2000×2400

顶部和底部开口6英寸法兰

80.0～100.0

80102

φ2000×2600

顶部和底部开口6英寸法兰

80.0～100.0
