Affordable FRP Water Softener Tank For Industrial Residential Water Treatment Systems
Affordable FRP Water Softener Tank For Industrial Residential Water Treatment Systems
Affordable FRP Water Softener Tank For Industrial Residential Water Treatment Systems
Affordable FRP Water Softener Tank For Industrial Residential Water Treatment Systems
Affordable FRP Water Softener Tank For Industrial Residential Water Treatment Systems
Affordable FRP Water Softener Tank For Industrial Residential Water Treatment Systems
Specifications
Brand Name :
China brand
Model Number :
Various models available
Certification :
CE/UL/NSF
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10,000 set per month
Delivery Time :
5-8 working days after payment received
Packaging Details :
Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized
Product Size options(inch) :
Various size available
Product Diam&Height options(mm) :
Multiple options
Product Opening options(inch) :
Top&Bottom Opening 4"Thread
Product design Flow Rate(T/H) :
Multiple options
The Original of the tank :
China
Key Benefits :
Easy Maintenance And Upkeep,Corrosion resistant and no leak
Product Main Material :
FRP or reinforced PP
Usage :
Industry, Agriculture, Chemical，Water Softener，Industrial Water Treatment
Description

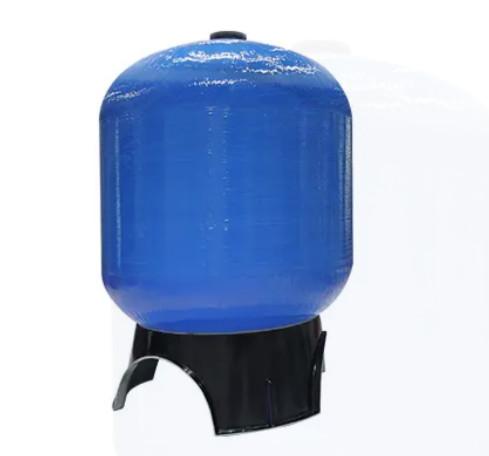

Affordable FRP Water Softener Tank for Industrial and Residential Water Treatment Systems

Affordable FRP Water Softener Tank For Industrial Residential Water Treatment Systems

Affordable FRP Water Softener Tank For Industrial Residential Water Treatment Systems

FRP Vessels for Water Treatment​​ are corrosion-resistant composite pressure containers manufactured via ​​automated 4-axis filament winding​​. Based on ​​polyethylene (PE)​​ or ​​fiber-reinforced plastic (FRP) liners​​, they integrate ​​reinforcing fibers (e.g., fiberglass/carbon fiber)​​ with ​​high-performance thermoset resins (epoxy/vinyl ester)​​ to form monolithic structures in a single forming cycle. This advanced process eliminates seams, creating vessels with:

  • Extreme corrosion resistance (pH 1-14 compatibility)
  • Pressure rating: 0.6-4.0 MPa
  • Service life: 20+ years

​​Structural Components:​​

  1. ​​Axial Ports​​: Molded top/bottom openings with ​​high-density threaded fittings (NPT/BSP)​​ or ​​ANSI/DIN flanges​​ (PN16 rating, DN15-DN500 compatible)
  2. ​​Cylindrical Shell​​: 4D-wound composite wall (3-25mm thickness), inner surface smoothness Ra≤0.4μm (FDA/NSF compliant)
  3. ​​Discharge Outlet​​: Angled (45°/90°) anti-clog design, flow capacity 5-500m³/h
  4. ​​Base Assembly​​:
    • ​​FRP Base​​: Continuous wound construction, compressive strength ≥250MPa
    • ​​Reinforced PP Base​​: 20%-30% glass-fiber reinforced, operating range -30°C to 100°C

​​Technical Advantages:​​

  • Temperature resilience: -40°C to 80°C operation
  • Modular integration: Supports IoT pressure sensors/automatic valves

Affordable FRP Water Softener Tank For Industrial Residential Water Treatment Systems

尺寸(英寸)

直径&高度(mm)

开口(英寸)

设计流量(T/ H )

0818

φ200×450

顶部开口2.5英寸螺纹

0.1～0.2

0835

φ200×890

顶部开口2.5英寸螺纹

0.2～0.4

0844

φ200×1100

顶部开口2.5英寸螺纹

0.2～0.5

1035

φ250×890

顶部开口2.5英寸螺纹

0.5～1.0

1054

φ250×1400

顶部开口2.5英寸螺纹

0.5～1.5

1254

φ300×1400

顶部开口2.5英寸螺纹

1.6～2.2

1265

φ300 ×1650

顶部开口2.5英寸螺纹

2.0～2.5

1354

φ325 ×1400

顶部开口2.5英寸螺纹

2.0～2.5

1365

φ325×1650

顶部开口2.5英寸螺纹

2.0～2.5

1454

φ350×1400

顶部开口2.5英寸螺纹

2.5～3.0

1465

φ350×1650

顶部开口2.5英寸螺纹

2.5～3.0

1654

φ400×1400

顶部开口2.5英寸螺纹

3.2～4​​.5

1665

φ400×1650

顶部开口2.5英寸螺纹

3.2～4​​.5

2069

φ500×1750

顶部开口4英寸螺纹

4.5～6.0

2069

φ500×1750

顶部和底部开口 4” 螺纹

4.5～6.0

2474

φ600 ×1900

顶部开口4英寸螺纹

6.2～8.2

2474

φ600×1900

顶部和底部开口4英寸螺纹

6.2～8.2

3074

φ750×1900

顶部开口4英寸螺纹

7.2～12.2

3074

φ750×1900

顶部和底部开口4英寸螺纹

7.2～12.2

3674

φ900×1900

顶部开口4英寸螺纹

13.2～16.2

3674

φ900×1900

顶部和底部开口4英寸螺纹

13.2～16.2

3687

φ900×2200

顶部开口4英寸螺纹

13.2～16.2

3687

φ900×2200

顶部和底部开口4英寸螺纹

13.2～16.2

3696

φ900×2400

顶部和底部开口6英寸法兰

13.2～16.2

4074

φ1000×1900

顶部和底部开口4英寸螺纹

17.0～23.0

4074

φ1000×1900

顶部和底部开口4英寸螺纹

17.0～23.0

4087

φ1000×2200

顶部和底部开口4英寸螺纹

17.0～23.0

4096

φ1000×2400

顶部和底部开口6英寸法兰

18.0～25.0

4887

φ1200×2200

顶部和底部开口6英寸法兰

28.0～38.0

4896

φ1200×2400

顶部和底部开口6英寸法兰

28.0～38.0

6096

φ1500×2400

顶部和底部开口6英寸法兰

38.0～55.0

6396

φ1600×2400

顶部和底部开口6英寸法兰

38.0～55.0

7296

φ1800×2400

顶部和底部开口6英寸法兰

55.0～80.0

8096

φ2000×2400

顶部和底部开口6英寸法兰

80.0～100.0

80102

φ2000×2600

顶部和底部开口6英寸法兰

80.0～100.0
