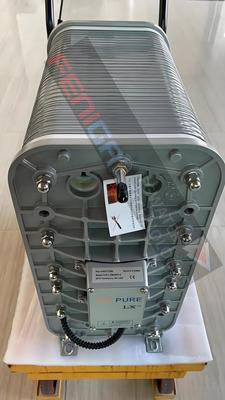

Ionpure LX-Z IP-LXM30Z-5 CEDI Module Revolutionizing Thermal Power Plant Water Treatment
Ionpure LX-Z IP-LXM30Z-5 CEDI Module Revolutionizing Thermal Power Plant Water Treatment
Ionpure LX-Z IP-LXM30Z-5 CEDI Module Revolutionizing Thermal Power Plant Water Treatment
Ionpure LX-Z IP-LXM30Z-5 CEDI Module Revolutionizing Thermal Power Plant Water Treatment
Ionpure LX-Z IP-LXM30Z-5 CEDI Module Revolutionizing Thermal Power Plant Water Treatment
Ionpure LX-Z IP-LXM30Z-5 CEDI Module Revolutionizing Thermal Power Plant Water Treatment
Specifications
Brand Name :
IONPURE
Model Number :
IP-LXM30Z-5
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
60000 Units per Month
Delivery Time :
5- 8 work days
Packaging Details :
standard export packing
30Z-5 Minimum Flow Rate M3/hr (gpm): :
1.70 (7.5)
30Z-5 Design Flow Rate M3/hr (gpm): :
3.3-5.11 (15.0-22.5)
30Z-5 Shipping Weight Kg (lbs)**: :
132 (291)
30Z-5 Operating Weight Kg (lbs): :
110 (243)
30Z-5 Recovery: :
90–95%
30Z-5 Advantages: :
High-Purity Water
Stack Temperature: :
5–45˚C (41–113˚F)
Stack Inlet Pressure: :
1.4–6.9 Bar (20–100 Psig)
Application: :
Industrial Use
Highlight: :
chemical-free EDI module, high-purity water CEDI module, industrial Ionpure LX-Z module
Description
In the thermal power plant water treatment industry, where achieving high - purity water is crucial for the efficient and safe operation of power - generating equipment, the Ionpure LX-Z IP-LXM30Z-5 CEDI Module stands out as an advanced solution.
Product Introduction: The Ionpure LX-Z IP-LXM30Z-5 CEDI Module is a cutting - edge Continuous Electrodeionization (CEDI) product designed to meet the stringent water purity requirements of thermal power plants. It combines the principles of ion exchange and electrodialysis to produce high - quality deionized water. By eliminating the need for chemical regeneration, it offers a more sustainable and cost - effective alternative to traditional ion - exchange resin systems.
Process: The module operates through a process where raw water enters the module and passes through a series of ion - exchange resin beds and ion - selective membranes. An electric field is applied across the module, which drives the ions in the water through the membranes, separating them from the water. This results in the production of highly purified water, with the ability to remove both cations and anions effectively.
Uses: In thermal power plants, the Ionpure LX-Z IP-LXM30Z-5 CEDI Module is primarily used for boiler feedwater treatment. High - purity water is essential to prevent scaling, corrosion, and other issues in the boiler system. Additionally, it can be used for water treatment in turbine cooling systems, ensuring that the cooling water does not cause any damage due to the presence of impurities.

Key Specifications of Ionpure LX-Z IP-LXM30Z-5 CEDI Module

Parameter Value
Nominal Flow Rate 5 m³/h
Maximum Operating Pressure 6.9 bar
Maximum Operating Temperature 45°C
Power Consumption Varies based on flow and water quality
Dimensions (L×W×H) Specific dimensions provided by the manufacturer
Inlet Water Conductivity ≤40 μS/cm
Advantages: One of the most significant advantages of the Ionpure LX-Z IP-LXM30Z-5 CEDI Module is its chemical - free operation, which reduces environmental impact and the cost associated with chemical handling and disposal. It offers high - quality water production with consistent performance, ensuring the reliability of power plant operations. The module has a long service life and requires minimal maintenance compared to traditional water treatment methods. Its compact design also saves valuable space in the power plant, making it easier to integrate into existing water treatment systems. Overall, the Ionpure LX-Z IP-LXM30Z-5 CEDI Module is an ideal choice for thermal power plants looking to upgrade their water treatment capabilities for better efficiency and sustainability.
