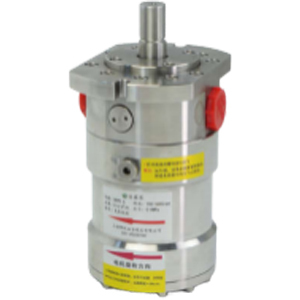

DHP 0.8 Axial Piston Pump - High-Pressure Water Treatment Consumables for Small/Medium Seawater Industrial Desalination
DHP 0.8 Axial Piston Pump - High-Pressure Water Treatment Consumables for Small/Medium Seawater Industrial Desalination
DHP 0.8 Axial Piston Pump - High-Pressure Water Treatment Consumables for Small/Medium Seawater Industrial Desalination
DHP 0.8 Axial Piston Pump - High-Pressure Water Treatment Consumables for Small/Medium Seawater Industrial Desalination
DHP 0.8 Axial Piston Pump - High-Pressure Water Treatment Consumables for Small/Medium Seawater Industrial Desalination
DHP 0.8 Axial Piston Pump - High-Pressure Water Treatment Consumables for Small/Medium Seawater Industrial Desalination
Specifications
Brand Name :
Fenigal
Model Number :
DHP 0.8
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Supply Ability :
60000 Units per Month
Packaging Details :
standard export packing
Product Model :
DHP 0.8
Geometric Displacement :
4.82 cm³/rev
Rated Flow at Rated Speed (3000 rpm) :
0.81 m³/h (equivalent to 13.5 L/min in minute flow rate)
Minimum Outlet Pressure :
10 Bar
Maximum Continuous Outlet Pressure :
80 Bar (For higher or lower pressure requirements, please contact FENIGAL sales representative)
Description
The DHP 0.8 Axial Piston Pump is a core high-pressure water treatment consumable tailored for industrial reverse osmosis scenarios—ideal for small and medium-sized seawater desalination, industrial wastewater desalination, and resource recovery. It specializes in transporting low-viscosity corrosive fluids like seawater and industrial saline wastewater, solving pollution and efficiency pain points in water treatment systems.


Operating on the axial piston principle, it uses the transported fluid as a lubricant, eliminating the need for a traditional oil tank and completely avoiding oil leakage—critical for water treatment’s high cleanliness demands. Weighing only 3.7 kg, its compact structure saves installation space, while the integrated flushing check valve simplifies reverse osmosis membrane system design, cutting costs.


Key components are crafted from 2205 duplex stainless steel (SAF 2205/EN 1.4462/UNS 31803), boasting excellent corrosion resistance to high-salinity media. With low vibration and noise (≤74 dB(A) per EN ISO 3744-2010), it suits environment-sensitive industrial sites. As a fixed-displacement pump, its flow rate is proportional to speed: at 3000 rpm (rated speed), flow reaches 0.81 m³/h, and motor speed can be adjusted via the formula Selected Motor Speed = (Required Flow Rate × 3000)/0.81 to match diverse system needs.


For reliable operation, strict installation and operation steps apply. During installation, distinguish the "I" (inlet) and "O" (outlet) ports, keep 3-5 mm clearance between pump and motor coupling, and use a vibration-damping base. In water treatment scenarios, install a 10 μm absolute filter at the inlet (prohibiting low-efficiency filters) to protect internal parts; add low-pressure (1 Bar) and high-pressure (70 Bar) control switches plus a safety valve to prevent idling and overpressure damage. After shutdown, flush the pump cavity with fresh water (or bactericide for long shutdowns) to avoid brine crystallization and corrosion.


Power varies with pressure: 3.0 kW at 80 Bar (ideal for seawater desalination, 70-80 Bar) and 2.2 kW below 60 Bar (suitable for low-pressure industrial desalination). It comes with a 1-year basic warranty (excluding man-made damage) and an 8000-hour maintenance-free warranty (max 18 months) under standard operation. The manufacturer, WUXI FENIGAL SCIENCE AND TECHNOLOGY CO., LTD., offers on-site maintenance and spare parts support to ensure uninterrupted water treatment.

Core Technical Parameters of DHP 0.8

Parameter Category Specific Value
Product Model DHP 0.8
Geometric Displacement 4.82 cm³/rev
Rated Flow (3000 rpm) 0.81 m³/h (13.5 L/min)
Minimum Outlet Pressure 10 Bar
Maximum Continuous Outlet Pressure 80 Bar (customizable via FENIGAL sales)
Minimum/Maximum Inlet Pressure 1 Bar / 5 Bar
Continuous Operating Speed Range 700～3450 rpm
Operating Noise (EN ISO 3744-2010) ≤74 dB(A) (measured at max pressure/speed)
Power (3000 rpm) 2.2 kW (60/70 Bar), 3.0 kW (80 Bar)
Medium Temperature 2～50 ℃ (depends on NaCl concentration)
Ambient Temperature 0～50 ℃
Overall Weight 3.7 kg
Integrated Component Flushing Check Valve
Core Application Small/medium seawater desalination, industrial wastewater desalination/resource recovery

Inlet & Outlet Dimensions of DHP 0.8

Piston Pump Model Inlet Size Outlet Size
DHP 0.8 G1/2〞, Depth 13 mm G1/2〞, Depth 13 mm

Overall Dimensions of DHP 0.8 (Unit: mm)

Piston Pump A B H K P AD HD C D L G IEC Motor
DHP 0.8 140 100 90 10 200 165 255 133 100 340 573 1.5 kW - 2P
DHP 0.8 140 125 90 10 200 165 255 133 100 365 598 2.2 kW - 2P
DHP 0.8 160 140 100 12 250 175 275 133 120 405 658 3.0 kW - 2P

Manufacturer Contact Information

Item Details
Company WUXI FENIGAL SCIENCE AND TECHNOLOGY CO., LTD. (FG Water Technologies)
Address Chuangyi Industrial Park, No. 100 Dicui Road, Binhu District, Wuxi City, Jiangsu Province, P. R. China
Tel +86-510-85163211
Mobile +86-13646187144
Email

sales@fgwater.com
