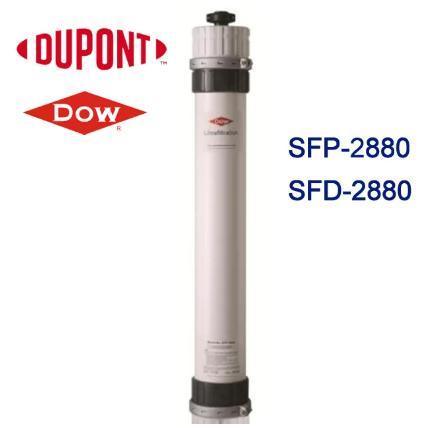

SFD-2880 High-Flux UF Membrane Module with 77 m² Membrane Area and 0.03 µm Pore Diameter for Drinking Water Treatment
SFD-2880 High-Flux UF Membrane Module with 77 m² Membrane Area and 0.03 µm Pore Diameter for Drinking Water Treatment
SFD-2880 High-Flux UF Membrane Module with 77 m² Membrane Area and 0.03 µm Pore Diameter for Drinking Water Treatment
SFD-2880 High-Flux UF Membrane Module with 77 m² Membrane Area and 0.03 µm Pore Diameter for Drinking Water Treatment
SFD-2880 High-Flux UF Membrane Module with 77 m² Membrane Area and 0.03 µm Pore Diameter for Drinking Water Treatment
SFD-2880 High-Flux UF Membrane Module with 77 m² Membrane Area and 0.03 µm Pore Diameter for Drinking Water Treatment
Specifications
Filtrate Flux Of This Model :
40-120
Product Max. Inlet Module Pressure :
6.25 Bar
MOQ :
1 Set
Delivery Time :
7 work days
Product Nominal Pore Diameter :
0.03 µm
Certification :
ISO 14001， CE ，ISO 9001
Product Membrane Area :
77 M²
Model Number :
SFP-2860 / SFD-2860
Product Flow Direction Settings :
External Pressure Structure, Dead End Filtration
Payment Terms :
T/T,Western Union,Paypal etc.
Diameter Of This Model :
8 Inch
Price :
Negotiable
Product Max. Operating TMP :
2.1 Bar
Core Certifications :
ISO 9001, NSF, CE
Supply Ability :
200 Units per Month
Product Flow Range :
3.1 – 9.3 M3 /hr
Brand Name :
DOW
Membrane Operating PH :
2-11
Packaging Details :
Standard Export Wood Crate/Carton or Naked wrapped by film
Core Material :
PVDF
Place of Origin :
China
Description
SFD-2880 High-Flux UF Membrane Module – Drinking Water Ultrafiltration Solution
Advanced Ultrafiltration Solution for Drinking Water Treatment

The SFD-2880 High-Flux Ultrafiltration (UF) Membrane Module is designed for high-performance drinking water purification and advanced filtration applications requiring reliable contaminant removal and stable water quality.

Featuring a large membrane area and efficient hollow fiber filtration technology, the module effectively removes suspended particles, colloids, microorganisms, and organic impurities while maintaining excellent permeability and operational stability.

Designed for large-scale water treatment systems, the SFD-2880 provides high filtration capacity with low energy consumption and simplified maintenance requirements. Its robust membrane structure allows reliable operation under demanding conditions, making it suitable for municipal drinking water treatment, industrial pretreatment, and water reuse applications.

The module delivers consistently high-quality filtrate with low turbidity and low SDI values, providing excellent protection for downstream processes such as reverse osmosis systems.

Key Advantages
High Flux Filtration Performance
  • Large effective membrane area: 77 m² (829 ft²)
  • High production capacity for large-scale applications
  • Maintains stable filtration efficiency during continuous operation
Excellent Water Quality Improvement

Effectively removes:

  • Suspended solids
  • Colloidal particles
  • Bacteria and microorganisms
  • Organic contaminants

Typical filtrate quality:

  • Turbidity: ≤0.1 NTU
  • SDI: ≤2.5
Drinking Water Application Capability
  • Suitable for potable water treatment
  • Designed for applications requiring reliable filtration performance
  • Supports high-quality water production standards
Durable & Easy Maintenance
  • Strong hollow fiber membrane structure
  • Wide chemical tolerance range
  • Supports regular cleaning procedures
  • Designed for long service life
Energy-Efficient Operation
  • Low operating pressure requirements
  • Reduced chemical demand
  • Suitable for sustainable water treatment systems
Product Specifications
Parameter Specification
Product Model SFD-2880
Technology Ultrafiltration (UF)
Application Drinking Water Treatment
Membrane Type Hollow Fiber UF Membrane
Membrane Area 77 m²
Membrane Area 829 ft²
Module Volume (Empty / Filled) 39 L / 10.3 gal
Weight (Dry / Filled) 61 kg / 100 kg
Module Diameter 8 inch
Flow Configuration Outside-In, Dead-End Filtration
Operating Parameters
Parameter Specification
Filtrate Flux at 25°C 40-120 L/m²*h
Flow Range 3.1-9.3 m³/h
Operating Temperature 1-40°C
Maximum Inlet Pressure 6.25 bar
Maximum Operating TMP 2.1 bar
Maximum Backwash Pressure 2.5 bar
Maximum Air Scour Flow 12 Nm³/h
Operating pH Range 2-11
Maximum NaOCl Concentration 2,000 mg/L
Maximum TSS 100 mg/L
Maximum Turbidity 300 NTU
Maximum Particle Size 300 μm
Feed Water & Filtration Performance
Parameter Performance
Expected Filtrate Turbidity ≤0.1 NTU
Expected Filtrate SDI ≤2.5
Flow Mode Outside-In Dead-End Operation
Typical Applications

The SFD-2880 UF Membrane Module is widely used in:

  • Municipal drinking water purification
  • Surface water treatment
  • Industrial raw water filtration
  • Reverse osmosis pretreatment
  • Wastewater reclamation
  • Food and beverage water processing
  • Power plant water treatment
  • Industrial process water purification
Product Benefits
Feature Benefit
Large Membrane Area Higher water production capacity
High Flux Design Improved system efficiency
Fine Filtration Accuracy Produces cleaner feed water
Stable Operation Suitable for continuous treatment
Compact Module Structure Easy system integration
Low Energy Requirement Reduced operating costs
SFD-2880 UF Membrane Module - High-Capacity Filtration for Clean Water Applications

The SFD-2880 provides an efficient ultrafiltration solution for drinking water and industrial water treatment systems. With high membrane capacity, reliable filtration performance, and excellent water quality control, it is an ideal choice for modern purification and pretreatment applications.
