4TPH Industrial Brackish Water Reverse Osmosis Plant with SS304 Pretreatment Tanks and 5.5kW Power
4TPH Industrial Brackish Water Reverse Osmosis Plant with SS304 Pretreatment Tanks and 5.5kW Power
4TPH Industrial Brackish Water Reverse Osmosis Plant with SS304 Pretreatment Tanks and 5.5kW Power
4TPH Industrial Brackish Water Reverse Osmosis Plant with SS304 Pretreatment Tanks and 5.5kW Power
4TPH Industrial Brackish Water Reverse Osmosis Plant with SS304 Pretreatment Tanks and 5.5kW Power
4TPH Industrial Brackish Water Reverse Osmosis Plant with SS304 Pretreatment Tanks and 5.5kW Power
Specifications
Feed Water TDS Of The Device :
<2000 Ppm
MOQ :
1 Set
Delivery Time :
30-40 work days
Process :
SF-ACF-RO
Certification :
ISO 9001
Power :
5.5kW-380-415V, 50Hz
Place of Origin :
China
The Number And Material Of Tanks :
2xSS304 Tanks
Model Number :
Brackish Water Reverse Osmosis Water Plant
RO Membrane :
Filmtec/Hydranautics
Payment Terms :
T/T,Western Union,Paypal etc.
Material :
Stainless Steel 304 Tank, UPVC Pipe
Price :
Negotiable
Other Configurations Of The Equipment :
Flower Meter & Pressure Gauge; LP&HP Switch;operational Status Indicators ;IC Control Unit & TDS Indicator
Supply Ability :
20 Units per Month
Capacity Of The Device :
4TPH
Brand Name :
Fenigal
Packaging Details :
Standard Export Wood Crate/Carton or Naked wrapped by film
Description

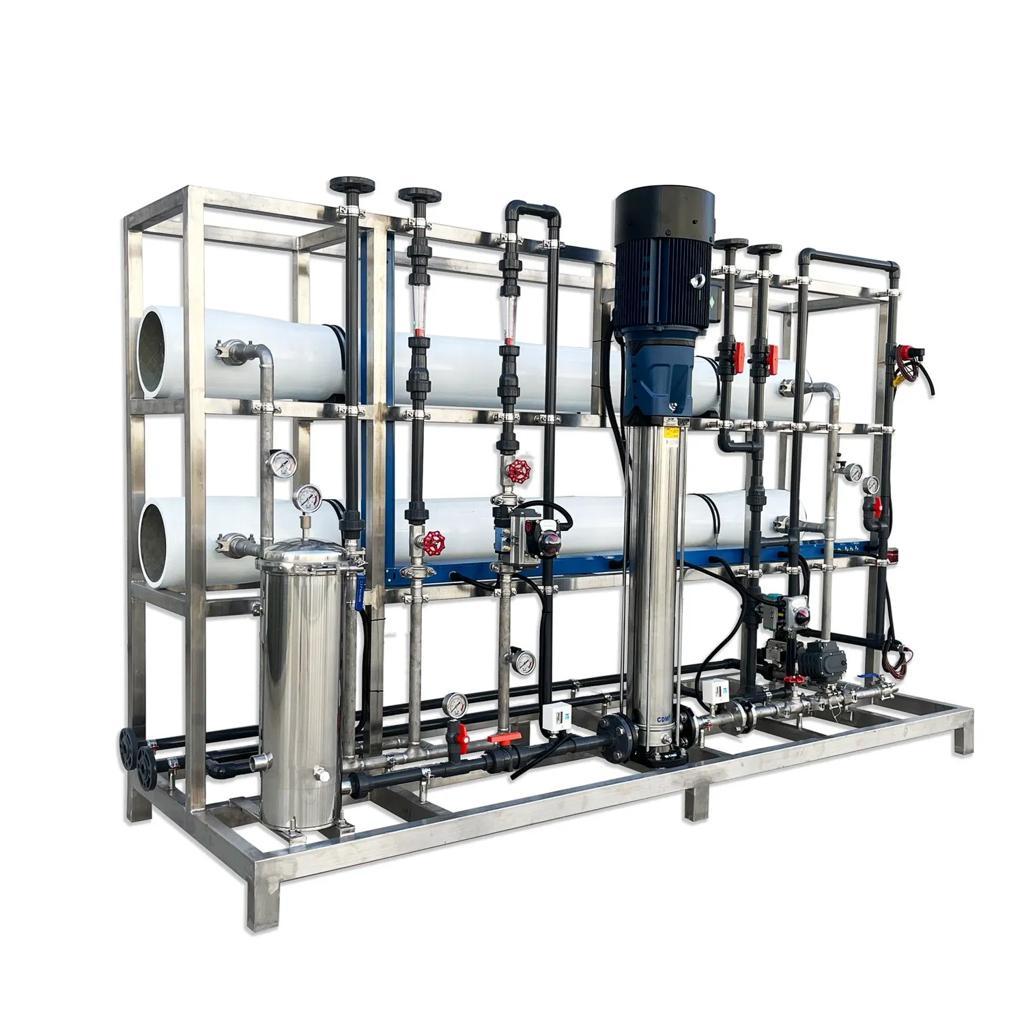

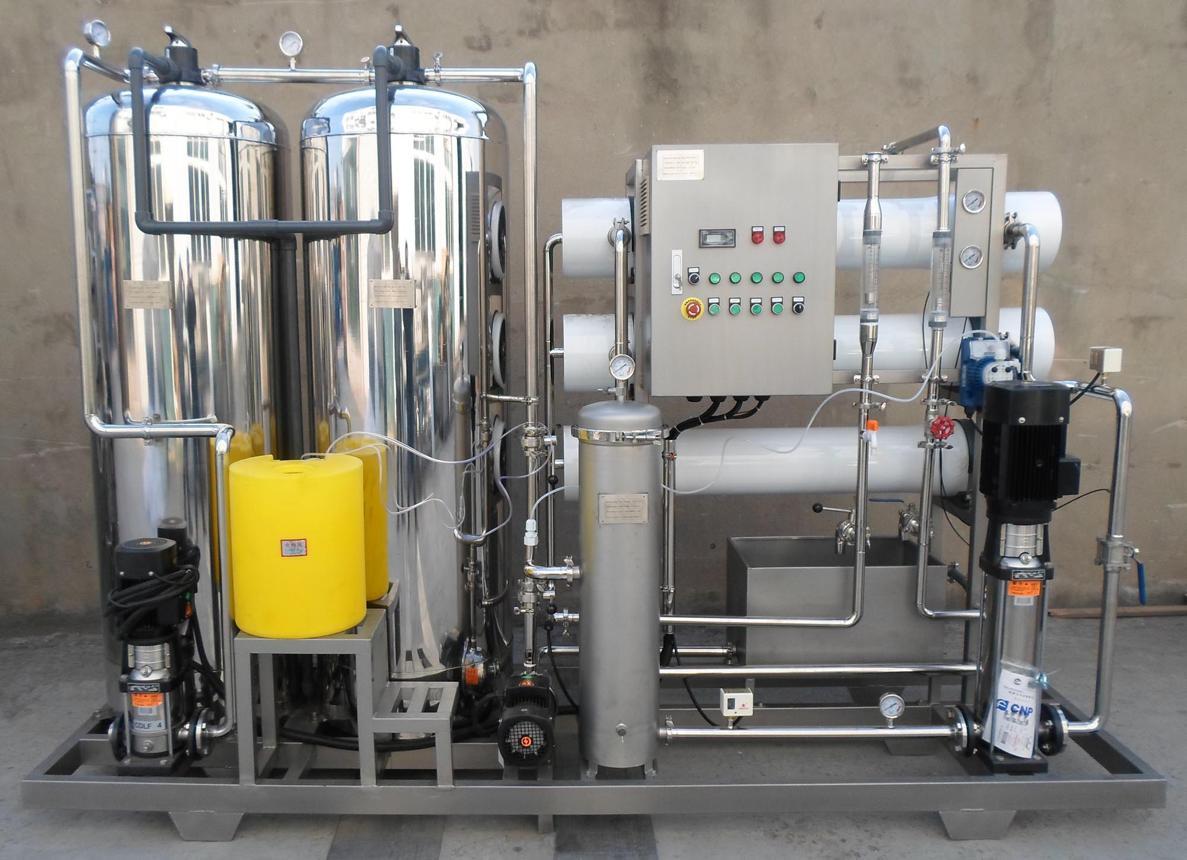

4TPH Industrial Brackish Water Reverse Osmosis Plant with SS304 Pretreatment Tanks
4TPH 5.5kW 380-415V 2xSS304 Tanks Brackish Water Reverse Osmosis Water Plant

Brackish Water Reverse Osmosis Water Treatment System

Brackish Water Reverse Osmosis (BWRO) system is designed to remove dissolved salts, heavy metals, organic substances, bacteria and other impurities from high salinity water sources. It is suitable for groundwater, well water and coastal brackish water treatment.

The system uses high-quality RO membranes, SUS316L high-pressure pumps, SS304 skid structure and advanced pretreatment technology. It can remove more than 97% of dissolved contaminants and provide stable high-quality purified water.

FG Water Technologies provides customized BWRO solutions according to different raw water conditions, ensuring efficient operation, long service life and reliable water quality.

Main Features
  • SS304 skid-mounted structure
  • High efficiency RO membrane filtration
  • Suitable for brackish water TDS up to 20,000ppm
  • Automatic control and monitoring system
  • Optional Filmtec/Hydranautics membranes
  • Customized design according to water quality
Technical Parameters
Model Configuration Size (L*W*H cm) Weight
250L/h (1,600 GPD) SS304 skid, 4"x1 RO membrane, 1.7kW-380-415V, SF-ACF-RO, 2x SS304 tanks, flow meter, pressure gauge, LP/HP switch, IC control, TDS meter 160*78*170 220KG
250L/h (1,600 GPD) SS304 skid, 4"x1 RO membrane, 1.7kW-380-415V, SF-ACF-IXF-RO, 3x SS304 tanks, automatic control system 160*78*170 240KG
500L/h (3,200 GPD) SS304 skid, 4"x2 RO membrane, 1.7kW-380-415V, SF-ACF-RO, 2x SS304 tanks, automatic control system 160*78*170 220KG
500L/h (3,200 GPD) SS304 skid, 4"x2 RO membrane, 1.7kW-380-415V, SF-ACF-IXF-RO, 3x SS304 tanks, automatic control system 160*78*170 240KG
1TPH (6,400 GPD) SS304 skid, 4"x4 RO membrane, 2.1kW-380-415V, SF-ACF-RO, 2x SS304 tanks 160*78*170 230KG
2TPH (12,800 GPD) SS304 skid, 8"x2 RO membrane, 3.0kW-380-415V, SF-ACF-RO, 2x SS304 tanks 260*80*170 280KG
3TPH (19,200 GPD) SS304 skid, 8"x3 RO membrane, 5.5kW-380-415V, SF-ACF-RO, 2x SS304 tanks 260*80*170 340KG
4TPH (25,600 GPD) SS304 skid, 8"x4 RO membrane, 5.5kW-380-415V, SF-ACF-RO, 2x SS304 tanks 280*85*170 380KG
5TPH (32,000 GPD) SS304 skid, 8"x5 RO membrane, 7.4kW-380-415V, SF-ACF-RO, 2x SS304 tanks 160*85*170 400KG
6TPH (38,400 GPD) SS304 skid, 8"x6 RO membrane, 7.9kW-380-415V, SF-ACF-RO, 2x SS304 tanks 280*85*170 430KG
8TPH (51,200 GPD) SS304 skid, 8"x8 RO membrane, 14kW-380-415V, SF-ACF-RO, 2x SS304 tanks 280*85*180 500KG
10TPH (64,000 GPD) SS304 skid, 8"x10 RO membrane, 19kW-380-415V, SF-ACF-RO, 2x SS304 tanks 280*85*190 680KG
Standard Configuration
  • Pretreatment: Sand Filter + Activated Carbon Filter + Optional Ion Exchange Filter
  • RO membrane: Filmtec / Hydranautics optional
  • Pipe material: uPVC
  • Pump: SUS316L high-pressure pump
  • Control: Automatic IC control system
  • Monitoring: Pressure gauge, flow meter, TDS indicator
  • Safety: Low/high pressure protection
About FG Water Technologies

FG Water Technologies is a professional water treatment equipment manufacturer specializing in RO systems, BWRO systems, SWRO systems, UF systems, EDI equipment, media filters and water softening systems.

With advanced manufacturing facilities and experienced technical teams, FG provides customized water purification solutions for industrial, commercial and municipal applications worldwide.

Our products are widely used in food & beverage, pharmaceutical, chemical, power generation, municipal water supply and industrial wastewater treatment industries.
