IntegraTec™ XP 51 IG Compact UF Membrane Module with 0.03 μm Pore Size and PVDF Hollow Fiber Technology
IntegraTec™ XP 51 IG Compact UF Membrane Module with 0.03 μm Pore Size and PVDF Hollow Fiber Technology
IntegraTec™ XP 51 IG Compact UF Membrane Module with 0.03 μm Pore Size and PVDF Hollow Fiber Technology
IntegraTec™ XP 51 IG Compact UF Membrane Module with 0.03 μm Pore Size and PVDF Hollow Fiber Technology
IntegraTec™ XP 51 IG Compact UF Membrane Module with 0.03 μm Pore Size and PVDF Hollow Fiber Technology
IntegraTec™ XP 51 IG Compact UF Membrane Module with 0.03 μm Pore Size and PVDF Hollow Fiber Technology
Specifications
Module Operating Process :
Dead-end
XP 51 IG Weight Empty :
48 Kg
MOQ :
1 Set
Delivery Time :
7 work days
XP 51 IG Membrane Material :
PVDF (Polyvinylidene Fluoride
Certification :
ISO 14001， CE ，ISO 9001
XP 51 IG Membrane Type :
Hollow Fiber
Model Number :
IntegraTec™ XP 51/ XP 51 IG(previously SFD/SFP-2860XP)
Other Wetted Module Components :
Polyurethane, Polyethylene, And Polyamide
Price :
Negotiable
XP 51 IG Shipping Weight :
60 Kg
Application Of The Product :
Wastewater Treatment
Supply Ability :
2000 Units per Month
XP 51 IG Mode Of Filtration :
Out-In Pressurized
Brand Name :
DOW
XP 51 IG Active Membrane Area :
51 M²
XP 51 IG Advantages :
Suitable For System Designs With Limited Height Or Space
Payment Terms :
T/T,Western Union,Paypal etc.
XP 51 IG Membrane Pore Size :
Approx. 0.03 µm
Place of Origin :
China
Weight Filled :
83 Kg
Packaging Details :
Standard Export Wood Crate/Carton or Naked wrapped by film
Description

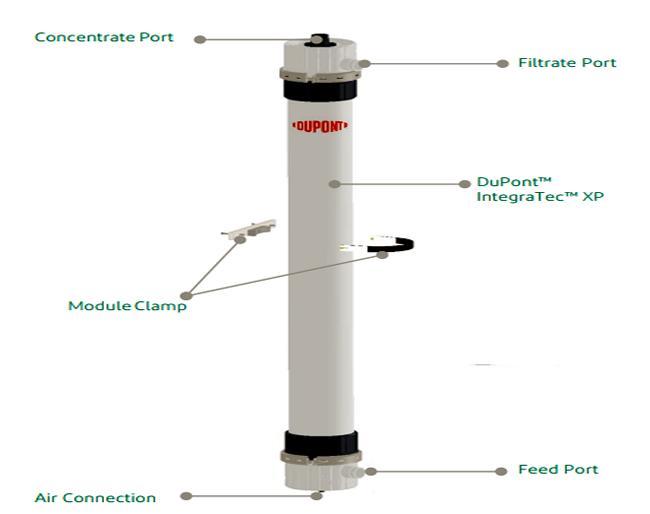

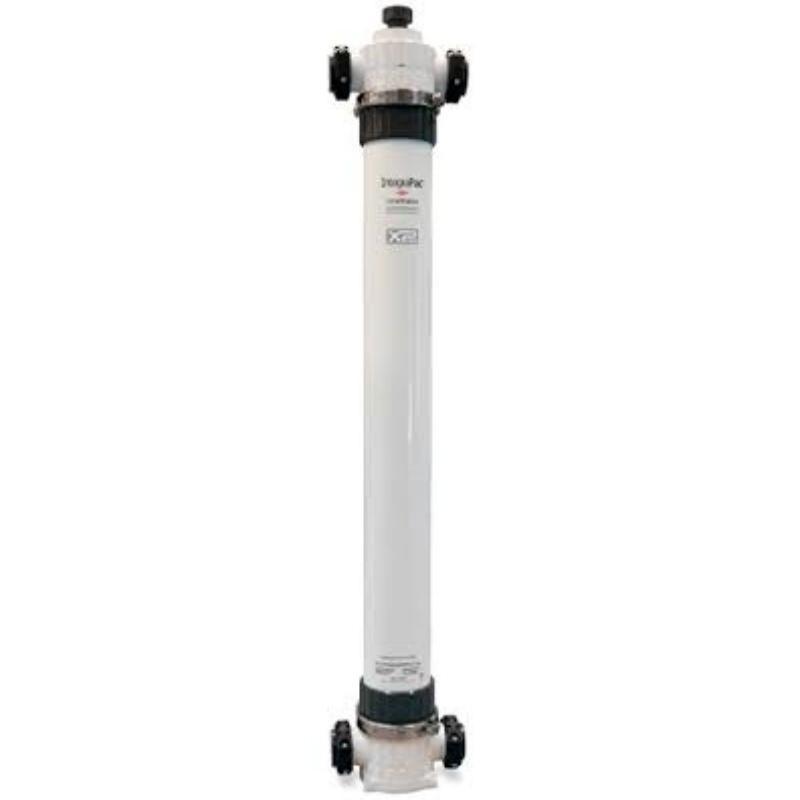

IntegraTec™ XP 51 IG Compact UF Membrane Module – Space-Saving PVDF Ultrafiltration Solution
IntegraTec™ XP 51 IG Compact UF Membrane Module
Space-Saving PVDF Ultrafiltration Solution for Modular Water Treatment Systems
Product Overview

The IntegraTec™ XP 51 IG Ultrafiltration Membrane Module is a compact high-performance UF membrane solution designed for water treatment systems where installation height and available space are limited.

Featuring advanced hydrophilic PVDF hollow fiber membrane technology, the XP 51 IG provides excellent filtration performance, strong fouling resistance, and reliable operation under demanding industrial conditions.

With a compact module structure and optimized integration design, this UF module is particularly suitable for containerized treatment systems, modular RO pretreatment units, and customized skid-mounted water treatment equipment.

The XP 51 IG combines high filtration efficiency with flexible system integration, making it an ideal choice for standardized export systems and space-constrained industrial applications.

Key Advantages
Compact Design for Limited Installation Space

The XP 51 IG is engineered for applications where conventional UF modules may not fit.

  • Reduced module height
  • Space-efficient installation
  • Suitable for containerized systems
  • Flexible skid integration
  • Easy system expansion
Advanced Hydrophilic PVDF Membrane Technology

The module utilizes high-performance PVDF hollow fiber membranes with excellent durability.

  • Strong resistance to fouling
  • High chlorine tolerance
  • Improved membrane wetting performance
  • Easy cleaning and maintenance
  • Long service life
High Filtration Performance

The XP 51 IG effectively removes suspended particles, colloidal substances, bacteria, and microorganisms.

Typical filtration performance:

  • Nominal pore size: 0.03 μm
  • Filtrate turbidity: ≤0.1 NTU
  • Filtrate SDI: ≤2.5
Efficient Operation & Low Maintenance

The optimized module structure provides:

  • High air scour tolerance
  • Stable flux operation
  • Reduced chemical cleaning frequency
  • Lower lifecycle operating costs
Product Specifications
Parameter Specification
Product Model XP 51 IG
Membrane Technology Ultrafiltration (UF)
Membrane Material Hydrophilic PVDF
Nominal Pore Size 0.03 μm
Effective Membrane Area 51 m²
Module Diameter Approx. 203 mm (8 inch)
Module Length Approx. 1520 mm
Filtration Mode Outside-In Dead-End
Application Type Industrial UF / RO Pretreatment
Operating Parameters
Parameter Specification
Filtrate Flux at 25°C 40-110 L/m²*h
Flow Range 2.0-8.5 m³/h
Operating Temperature 1-40°C
Maximum Inlet Pressure 6.25 bar
Maximum Operating TMP 2.1 bar
Maximum Air Scour Flow 12 Nm³/h
Maximum Backwash Pressure 2.5 bar
Operating pH Range 2-11
Maximum NaOCl Concentration 2,000 mg/L
Maximum Particle Size 300 μm
Module Dimensions
Parameter Value
Overall Length 1860 mm
Module Length Options 1500 / 1630 / 1820 mm
Diameter 225 mm
Width Options 180 / 342 mm
Typical Applications

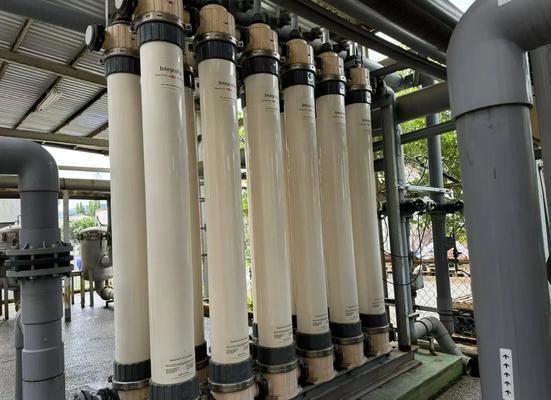

Containerized Water Treatment Systems

The compact XP 51 IG module is ideal for:

  • Mobile water treatment plants
  • Containerized UF systems
  • Emergency water supply units
  • Remote area treatment projects
Industrial RO Pretreatment

Provides high-quality feed water protection for reverse osmosis systems.

Applications:

  • Industrial RO systems
  • Process water purification
  • High-quality feed preparation
Modular Industrial Water Treatment

Suitable for customized skid systems requiring:

  • Compact footprint
  • High reliability
  • Flexible configuration
  • Easy installation
Why Choose XP 51 IG UF Membrane Module?

The IntegraTec™ XP 51 IG provides a balance of compact design, advanced PVDF membrane technology, and reliable filtration performance.

Its space-saving structure makes it especially valuable for containerized and modular water treatment projects where installation flexibility and operational reliability are essential.
