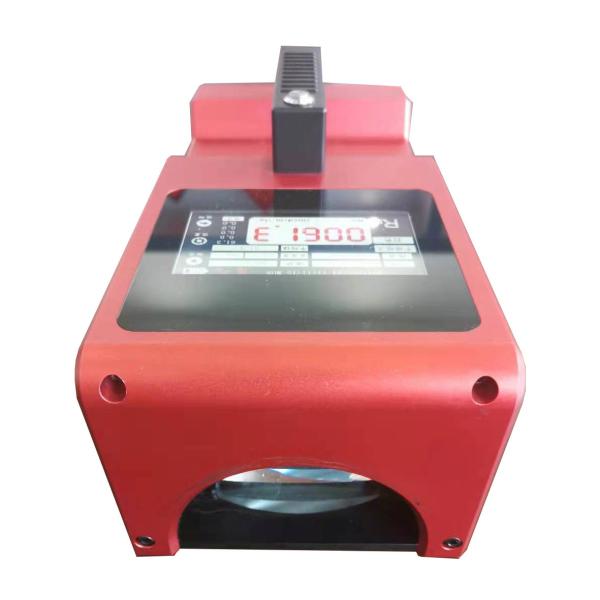

Optical Retroreflector Meter Portable For Road Markings
Optical Retroreflector Meter Portable For Road Markings
Optical Retroreflector Meter Portable For Road Markings
Optical Retroreflector Meter Portable For Road Markings
Optical Retroreflector Meter Portable For Road Markings
Optical Retroreflector Meter Portable For Road Markings
Specifications
Brand Name :
STP
Model Number :
STP-NRRM
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
negotionable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000
Packaging Details :
inner box and master carton , 1pc per carton . carton size : 55*36*23CM
Measurement items :
retroreflective coefficient mcd.m-2.lx-1
Measurement range :
0---4000
Light source color temperature :
2856±50K
Measuring aperture area :
450mm x 65mm
Measurement line color :
white, yellow, red, green or blue
Retroreflective coefficient :
3 seconds
Warranty :
1 year
Error of repeatability measurement :
＜5%
Power supply voltage :
12V DC
Charging voltage/current :
DC12.6V/2A
Description

Portable Instrument And Dry Mode, Wet mode, Rainy Of Retroreflector Meter For Road Markings

The geometric condition rainy night road marking retroreflectometer is to simulate the brightness that the driver observes in the cab reflected from the marking made of retroreflective material on the road by the headlamp when the vehicle is driven on the road at night.

The retroreflective marking measuring instrument is a special optical measuring device used to measure the reflective performance of road markings. The measured parameter is the retroreflective coefficient R '(or specific brightness) of the marking, and the unit is mcd • lx -1 • m -2. The instrument is easy to operate and reliable in value. It can be used in laboratories as well as on-site measurement. It is the first-choice instrument for measuring the retroreflective optical performance of highway markings for production, quality supervision, engineering construction, supervision, teaching and scientific research.

Main technical parameters

Measuring aperture area 450mm x65mm
Error of repeatability measurement ≤5%
Angle of incidence 88.76°
Observation angle 1.05°
Complementary angle 1.24°
Measurement range 0---4000

Packing list

Serial number Name Specification Number
01 Retroreflectiometer For Road Markings 1
02 Charger 1
03 USB Date Line 1
04 Instructions 1
05 Certificate 1
06 Warranty Card 1
07 Calibration Board 1
08 Stylus 1

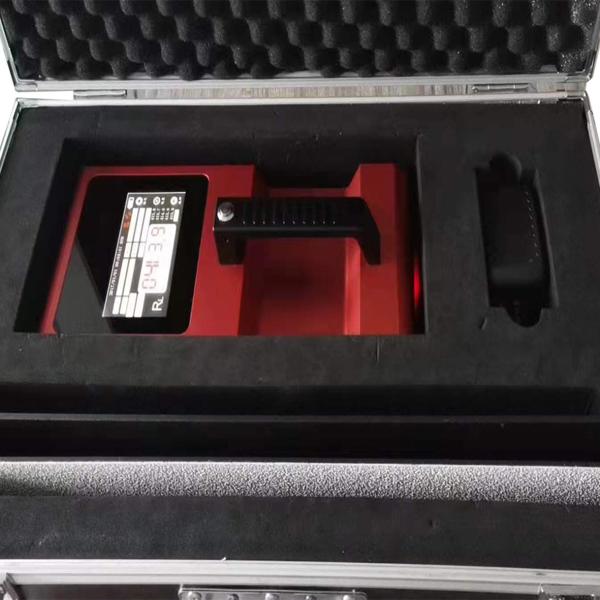

PICTURES

Optical Retroreflector Meter Portable For Road Markings

Optical Retroreflector Meter Portable For Road Markings

Our Service

Customized Logo

Free logo printing will be offered if order quantity is above 1pcs.

Our Warranty

1 Years warranty for all customers .

Spare Parts

A proportion of spare parts will be shipped along with formal orders.

Shipment

DHL , FEDEX , UPS , TNT , EMS :5-7 working days

Any other shipment way could be negoticated
