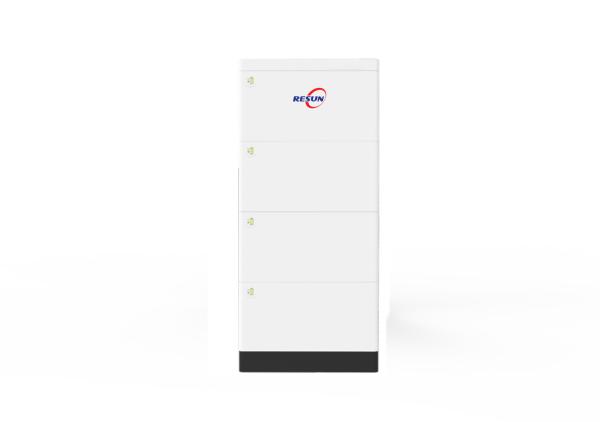

25KWh LiFePO4 Low Voltage Battery Safety Protection IP65
25KWh LiFePO4 Low Voltage Battery Safety Protection IP65
25KWh LiFePO4 Low Voltage Battery Safety Protection IP65
25KWh LiFePO4 Low Voltage Battery Safety Protection IP65
Specifications
Brand Name :
RESUN
Model Number :
LV-BT-L5.12Aa-5
Certification :
CB, IEC62619, UL1973, UL9540A, UKCA, CE-EMC, CE-GPSD, EN62619 ; UN38.3, MSDS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
3-30days
Model :
LV-BT-L5.12Aa-5
Warranty :
5 years
Operating Voltage :
43.2V~56.16V
IP  Rating :
IP65
Cycle Life :
6000cycles@80%DOD,25℃/0.5C
Battery Chemistry :
Lithium-iron phosphate (LiFePO4)
Certifications :
CB, IEC62619, UL1973, UL9540A, UKCA, CE-EMC, CE-GPSD, EN62619 ; UN38.3, MSDS
Description

25KWh LiFePO4 Low Voltage Battery Safety Protection IP65


• Adopting a multi-layer insulation protection structure, the energy storage equipment operates safely under low voltage conditions through a dual mechanism of short circuit protection and over temperature warning, and is compatible with smart home power supply systems. ​
• Equipped with intelligent protection algorithms, real-time monitoring of voltage fluctuations and cell temperature, outdoor power supply provides safe power protection.


FEATURES.
• 1 to 6 layers recommended.
• Can choose common 48V single or three phase 5KW, 8KW,10KW, 12KW off grid or hybrid on and off grid solar inverter.
• Capable of High-Powered Emergency-Backup and Off-Grid Function.
• Life Cycle and Power.
• Capable of High-Powered Emergency-Backup and Off-Grid Function.


Description

TechnicaI Specification LV-BT-L5.12Aa-5
Model 51.2V500Ah
Number of layers
5 layers
Energy 25.6KWh
Dimension
(L*W*H)mm
600*210*1640
Weight(KG) 248
Operating Voltage Range
43.2V~56.16V
Recommend charge current 50A
MAX. continuous charge/discharge current 100A
Peak discharge current 150A600ms
LED Display The information of Battery, such as SOC, battery working status.
Communication Support RS485 / CAN
Charging temperature 0℃~55℃
Discharge temperature -20℃~60℃
Environment Indoor
Relative humidity 5%～95%
Cooling Natural cooling
Cell technology Lithium-iron phosphate (LiFePO4)
Life cycle 6000 times @80%DOD
Protection Rating IP65
Certificates CB, IEC62619, UL1973, UL9540A, UKCA, CE-EMC, CE-GPSD, EN62619 ; UN38.3, MSDS
Single module Technical Specification
Module 51.2V 100Ah, 5.12kWh
Dimension (L*W*H) Battery Box:600*210*300mm
Battery module weight 48KG
