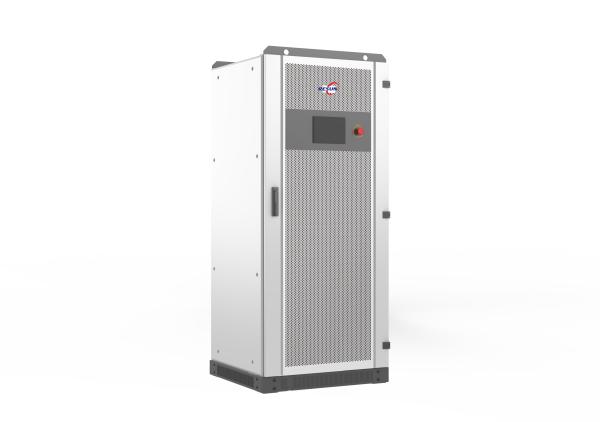

 30KW Microgrid integrated photovoltaic multi machine parallel inverter
 30KW Microgrid integrated photovoltaic multi machine parallel inverter
 30KW Microgrid integrated photovoltaic multi machine parallel inverter
 30KW Microgrid integrated photovoltaic multi machine parallel inverter
Specifications
Brand Name :
RESUN
Model Number :
RPS-30K-MG
Certification :
EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, IEC61727, IEC62116, IEC61683 NRS 097-2-1:2017, ASGC, AS/NZS 4417.1, CEI 0-21, CEI 0-16, G99 EN 50549-1, VDE 4105
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
3-30days
Model :
RPS-30K-MG
Power Rating :
30KW
Max Efficiency :
98%
Operating Temperature Range :
-30 ~ 55℃
Battery Compatibility :
Lead-acid / Li-ion / User-defined
Rated Battery Voltage :
250~850V
Cooling Method :
Air Cooling
Input Voltage Range :
50/60Hz
PV INPUT DC voltage, current :
1000V,36-72A
Communication InterfaceInterface :
RS485/Wifi/GPRS/CAN/DRM
Certifications :
EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, IEC61727, IEC62116, IEC61683 NRS 097-2-1:2017, ASGC, AS/NZS 4417.1, CEI 0-21, CEI 0-16, G99 EN 50549-1, VDE 4105
Warranty :
3 years
Description

• Full module integrated design: integrating photovoltaic modules, MPPT modules, transformers, and STS, with built-in maintenance bypass, one-stop solution for microgrid power conversion needs, simplifying the system construction process. ​
• Flexible expansion and collaboration: supports parallel connection of multiple machines, and can flexibly expand capacity according to the scale of the microgrid; By intelligently regulating the load rate of DG, energy utilization efficiency and fuel economy can be improved. ​
• Efficient and stable operation: With flexible configuration control strategies, precise management of multi energy collaboration within microgrids; Ensure stable power supply for the system under complex working conditions and provide reliable power support for distributed energy scenarios.


KEY STRENGTHS
• Integrated PV/MPPT module/transformer/STS and maintenance bypass.
• Easy expansion, support PV flexible configuration.
• Support 100% unbalance.
• Support DG load rate control to improve fuel economy.

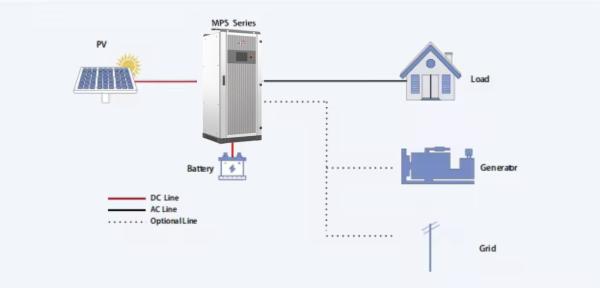

MPS PV and battery configuration principles:
• Boost mode configuration principle - open voltage at low temperature at the limit of PV installation * number of PV panels in series ≤ the lowest voltage of the battery;
• Buck mode configuration principle - the maximum power operating voltage at the extreme high temperature of PV installation≥ the highest voltage of the battery;
• The PV and battery configurations of MPS must comply with the above configuration principles.

Description

Model RPS-30K-MG
AC(on-grid)
Max. output power (kW) 33
Rated output power (kW) 30
Rated voltage(V) 400
Voltage range (V) 320~460
Rated current (A) 43
Rated frequency (Hz) 50/60
Frequency range (Hz) 45~55/55~65
THDi <3%
Power factor 1leading-1lagging(settable)
Grid type 3W+N+PE
AC(off-grid)
Max. output power (kW) 33
Rated power (kW) 30
Rated voltage (V) 400
Rated current (A) 43
THDu ≤1% linear; or≤5% nonlinear
Rated frequency (Hz) 50/60
Overload capacity 110% long-term, 120% 1min
PV input
Max. PV input voltage (V) 1,000
Max. PV power (kW) 36/72
MPPT module quantity 1/2
MPPT voltage range (V) 250~850
Battery
Battery voltage range (V) 250~850
Max. charging power (kW) 36/72
General data
Dimension W*D*H (mm) 800*800*1,900
Weight (kg) 620/650
Operation temperature (℃) -30 ~ 55
Relative humidity 0 ~95% non-condensing
Ingress protection IP20
Noise emission (dB) <70
Operating altitude (m) <5,000(>3,000 Derating)
Cooling Air Cooling
Display and communication
Display LCD touch-screen
BMS communication RS485, CAN
EMS communication RS485, TCP/IP
Certificates EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, IEC61727, IEC62116, IEC61683
NRS 097-2-1:2017, ASGC, AS/NZS 4417.1, CEI 0-21, CEI 0-16, G99 EN 50549-1, VDE 4105
