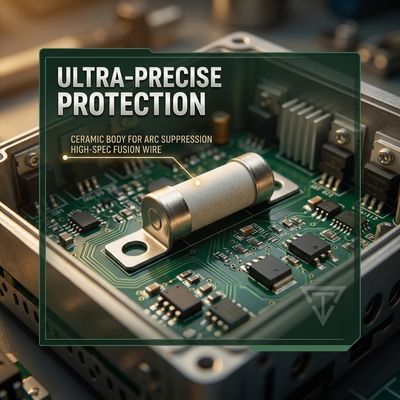

100A 700V Power Fuse Industrial Grade Circuit Protection High Quality RoHS Compliant
100A 700V Power Fuse Industrial Grade Circuit Protection High Quality RoHS Compliant
100A 700V Power Fuse Industrial Grade Circuit Protection High Quality RoHS Compliant
100A 700V Power Fuse Industrial Grade Circuit Protection High Quality RoHS Compliant
100A 700V Power Fuse Industrial Grade Circuit Protection High Quality RoHS Compliant
100A 700V Power Fuse Industrial Grade Circuit Protection High Quality RoHS Compliant
Specifications
Place of Origin :
Made in China
Rated Current :
100A
Certification :
UL
MOQ :
100
Breaking Capacitiy :
700vdc/10KA
Safety Approvals :
UL248-1/-13
Delivery Time :
30-40 Work days
Price :
Negotiable
Name :
Power Fuses
Model Number :
WH40-100-M6
Payment Terms :
T/T
Installation Way :
Stud-mount
Brand Name :
Walter
Supply Ability :
Large volume available
Packaging Details :
100
Size :
18*45
Description
100A 700V Power Fuse - Industrial Grade Circuit Protection
High-quality 100A power fuses rated for 700VDC / 10KA breaking capacity with UL248-1/-13 safety approvals. This 18×45 stud-mount fuse from Walter delivers consistent performance with standard tolerance and rated power, providing designers with a compact component that maintains steady performance under load and temperature variations.
Technical Specifications
Product Name Power Fuses
Dimensions 18×45 mm
Mounting Type Stud-mount
Rated Current 100A
Breaking Capacity 700VDC / 10KA
Safety Approvals UL248-1 / -13
Model Number WH40-100-M6
Certification UL Listed
Key Features
  • Compact 18×45 stud-mount design suitable for industrial applications
  • RoHS and REACH compliant construction for lead-free manufacturing
  • High breaking capacity of 700VDC / 10KA
  • UL248-1/-13 safety approvals for reliable circuit protection
Applications
Ideal for current sensing, power supplies, industrial control systems, and consumer electronics. The ceramic construction and stable electrical characteristics help designers meet tight tolerances in current sensing, power conversion, and protection circuits while maintaining a compact layout.
Quality & Manufacturing Advantages
Sourced directly from the manufacturer for competitive pricing and short lead times. Every batch undergoes comprehensive electrical testing before packaging, ensuring specified resistance and tolerance values are consistently delivered.
Packaging & Quality Assurance
Supplied in standard reel quantities suitable for automated assembly lines. All shipments are RoHS and REACH compliant, with certificates of compliance available upon request. Contact us for samples, datasheets, and volume pricing tailored to your project requirements.
100A 700V Power Fuse Industrial Grade Circuit Protection High Quality RoHS Compliant
Application reference: 100A Power Fuses 700VDC / 10KA High Current Fuses with UL248-1/-13 Safety Approvals
