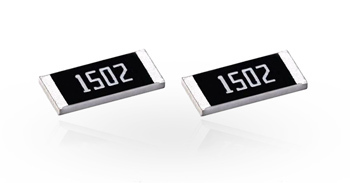

CRH2512F806KE04Z 2512 806 kΩ 2W High-Power Thick Film Chip Resistor for SMPS Feedback
CRH2512F806KE04Z 2512 806 kΩ 2W High-Power Thick Film Chip Resistor for SMPS Feedback
Specifications
Tolerance :
±1%
Model Number :
CRH2512F806KE04Z
Resistance :
806 kΩ
Brand Name :
Ever Ohms
Working Voltage :
200 V
Payment Terms :
T/T
Power :
2 W
Place of Origin :
Made in China
Operating Temp :
-55 ~ +155℃
Delivery Time :
5-8 work days
TCR :
±100 ppm/℃
MOQ :
4000
Description
CRH2512F806KE04Z – A 2512 806K 2W High-Power Thick Film Chip Resistor
Model Breakdown
  • CRH: Ever Ohms high-power thick film series
  • 2512: Imperial case 2512 (6.4×3.2 mm)
  • 806K: 806 kΩ resistance
  • 2W: Rated power at 70℃
  • E04Z: ±1% tolerance, tape & reel
Key Specifications
Parameter Value
Resistance 806 kΩ
Tolerance ±1%
Power 2 W
TCR ±100 ppm/℃
Working Voltage 200 V
Operating Temp -55 ~ +155℃
Technology Thick film

A standard 2512 thick film is usually rated 1 W; the CRH series doubles it via thicker internal electrodes and optimized alumina substrate. The 806 kΩ value sits well in HV divider chains for SMPS feedback (e.g., 806 kΩ top / 13.7 kΩ bottom scales ~51 V to ~0.85 V for ADC).

Applications

SMPS feedback networks, industrial control boards, BMS pack-voltage sensing, medical equipment bias networks — anywhere a 2512 806K 2W​ part saves board space vs. stepping up to 4527.

Sourcing

Shenzhen Shunhai Technology Co., Ltd.​ is an authorized Ever Ohms distributor stocking CRH2512F806KE04Z; Huanian Mall (华年商城)​ carries real-time inventory and datasheets for cross-checking during BOM selection.
