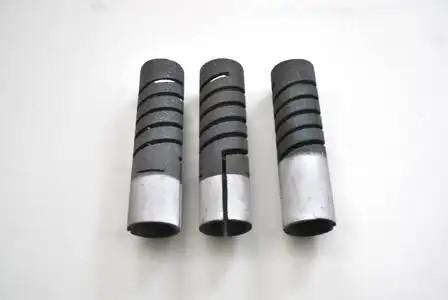

Double Threaded Silicon Carbide Rod SiC Heating Element 300mm Length
Double Threaded Silicon Carbide Rod SiC Heating Element 300mm Length
Specifications
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
Zhengzhou Songyu High Temperature Technology Co., Ltd.
Delivery Time :
15 work days
Packaging Details :
WOODEN CASE
Place of Origin :
China
Brand Name :
SONGYU
Length :
300mm
Maximum Surface Load :
9W/cm²
Hot Zone Length :
75mm
Max. Working Temperature :
1600°C
Diameter :
12mm
Chemical Composition :
SiC ≥ 98%, Free Si ≤ 0.5%
Heating Zone Length :
150mm
Resistance At 20°C :
1.2Ω
Flexural Strength :
≥400MPa
Porosity :
≤15%
Thermal Conductivity :
≥45W/m·K
Cold Zone Length :
75mm
Shape :
U Shape
Bulk Density :
2.7g/cm³
Description

SGR Type SiC Heating Elements

Double threaded rod is an electronic component made by precision calculation and special processing on the basis of U-shaped silicon carbide rod. It is designed to meet the needs of electric furnaces with small furnace space that cannot install normal U-shaped silicon carbide rod, and the temperature can reach 1500. Mainly used for heating kilns with special needs, its characteristics are: more energy-efficient, easy to operate, high operating temperature, and long service life.

Density 2.6-2.8 g/cm3
Product Type Heating Elements
Resistance 1.2-2.5 Ohms
Maximum Power 500-3000 Watts
Max. Working Temperature 1600°C (2912°F)
Thermal Conductivity 100-120 W/m·K
