W Shaped MoSi2 Heating Element 220V 380V Moly Disilicide For Vacuum Furnace
W Shaped MoSi2 Heating Element 220V 380V Moly Disilicide For Vacuum Furnace
Specifications
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
Zhengzhou Songyu High Temperature Technology Co., Ltd
Delivery Time :
15 work days
Packaging Details :
WOODEN CASE
Place of Origin :
China
Brand Name :
SONGYU
Thermal Conductivity :
52 W/m·K
Heating Zone Length :
Up to 1000 mm
Operating Voltage :
Up to 240 V
Shape :
W type
Maximum Power :
Up to 2000 W
Size :
Customizable
Density :
6.5 g/cm3
Electrical Resistivity :
1.2 μΩ·m
Max Temperature :
1800°C
Cold Zone Length :
Up to 200 mm
Application :
High temperature industrial heating
Surface Load :
Up to 4 W/cm2
Material :
Mosi2
Hot Zone Length :
Up to 500 mm
Description

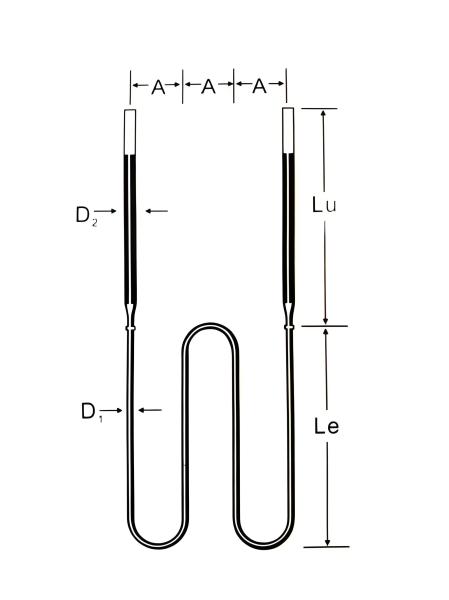

W type Mosi2 Heating Element

The W-shaped MoSi2 heating element is a remarkable innovation in the field of heating technology. Crafted with precision and made from high-quality molybdenum disilicide, it offers exceptional heat resistance and durability. Its unique W-shape design not only enhances the aesthetic appeal but also maximizes heat transfer efficiency. This heating element is capable of withstanding extremely high temperatures, making it ideal for a wide range of industrial applications such as furnaces, kilns, and heat treatment processes. With its reliable performance and long service life, it is a cost-effective solution for businesses looking for efficient heating options.

Voltage 220V/380V
Heating Zone Single/Double
Thermal Shock Resistance Good
Diameter 3/6/9/12mm
Material Mosi2 (Molybdenum Disilicide)
Length 100/200/300/400/500/600/700/800/900/1000mm
Features High temperature resistance, fast heating, long service life
Application High temperature furnace, vacuum furnace, sintering furnace, heat treatment furnace, etc.
