High Temp Silicon Molybdenum MoSi2 Heater 1800 Degree Silicon Molybdenum Rods
High Temp Silicon Molybdenum MoSi2 Heater 1800 Degree Silicon Molybdenum Rods
Specifications
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
Spark Industry (Henan) Co., Ltd.
Delivery Time :
15 work days
Packaging Details :
WOODEN CASE
Thermal Conductivity :
52 W/m·K
Heating Zone Length :
Up to 1000 mm
Operating Voltage :
Up to 240 V
Shape :
W type
Maximum Power :
Up to 2000 W
Size :
Customizable
Density :
6.5 g/cm3
Electrical Resistivity :
1.2 μΩ·m
Max Temperature :
1800°C
Cold Zone Length :
Up to 200 mm
Application :
High temperature industrial heating
Surface Load :
Up to 4 W/cm2
Material :
Mosi2
Hot Zone Length :
Up to 500 mm
Place of Origin :
China
Brand Name :
SONGYU
Description

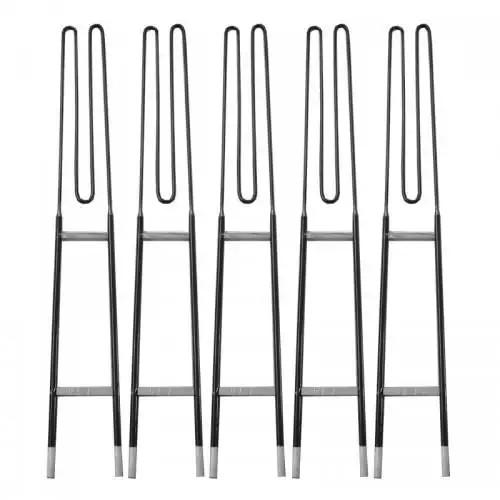

W type Mosi2 Heating Element

1800 degree silicon molybdenum rods are used for ultra-high temperature test furnaces, with a temperature range of around 1700-1800 degrees Celsius. Components with a diameter of 4/9 or 6/12 can be selected. Of course, sometimes if the electric furnace is very small, a diameter of 3/6 can be used (mainly depending on the size of the furnace). Choosing the appropriate specifications of silicon molybdenum rods is crucial for the electric furnace, considering the operating temperature, power, and voltage. Generally, they are arranged according to the length of the furnace, and are mostly U-shaped silicon molybdenum rods. Some manufacturers want to increase the temperature quickly by increasing or decreasing the diameter of the hot end of the silicon molybdenum rod by one millimeter. However, the number of silicon molybdenum rods installed in the electric furnace depends on the power and voltage, but it is also possible to reduce the number of rods if the voltage cannot be reached. The distance between the rods should be the same as the center distance of the same specification, and the diameter of the silicon molybdenum rod should be reasonably determined according to the temperature requirements of the electric furnace.

Voltage 220V/380V
Heating Zone Single/Double
Thermal Shock Resistance Good
Diameter 3/6/9/12mm
Material Mosi2 (Molybdenum Disilicide)
Length 100/200/300/400/500/600/700/800/900/1000mm
Features High temperature resistance, fast heating, long service life
Application High temperature furnace, vacuum furnace, sintering furnace, heat treatment furnace, etc.
