1A1 Diamond Resin Bond Grinding Wheel 4 Inch for Glass Tile
1A1 Diamond Resin Bond Grinding Wheel 4 Inch for Glass Tile
1A1 Diamond Resin Bond Grinding Wheel 4 Inch for Glass Tile
1A1 Diamond Resin Bond Grinding Wheel 4 Inch for Glass Tile
1A1 Diamond Resin Bond Grinding Wheel 4 Inch for Glass Tile
1A1 Diamond Resin Bond Grinding Wheel 4 Inch for Glass Tile
1A1 Diamond Resin Bond Grinding Wheel 4 Inch for Glass Tile
1A1 Diamond Resin Bond Grinding Wheel 4 Inch for Glass Tile
Specifications
Brand Name :
Shine Abrasives
Model Number :
4V2 1A1 14A2
Certification :
ISO
Place of Origin :
China
MOQ :
2 pcs
Price :
FOB
Payment Terms :
L/C, T/T
Supply Ability :
1000 PCS in one week
Delivery Time :
5 work days
Packaging Details :
one in paperbox
Keyword :
diamond grinding wheel
Wheel Grade :
Fine
Feature :
Long Life High Performance
Max Speed :
6,000 RPM
Diamond Rim Size :
12x10mm
Surface Finish :
Smooth
Grit :
#80-400
Wheel Type :
Flat
Hardness :
Super hard, Superhard diamond
Bonding :
Resin Bond
Diameter :
4 inches
Thickness :
1/4 inch
Abrasive Material :
Diamond
Color :
Green, Red
Customized Support :
OEM, ODM, OBM
Description
1A1 Diamond CBN Centerless Resin Bond Grinding Wheel for Tile Glass
Product Specifications
Attribute Value
Keyword diamond grinding wheel
Wheel Grade Fine
Feature Long Life High Performance
Max Speed 6,000 RPM
Diamond Rim Size 12x10mm
Surface Finish Smooth
Grit #80-400
Wheel Type Flat
Hardness Super hard, Superhard diamond
Bonding Resin Bond
Diameter 4 inches
Thickness 1/4 inch
Abrasive Material Diamond
Color Green, Red
Customized Support OEM, ODM, OBM
Product Description

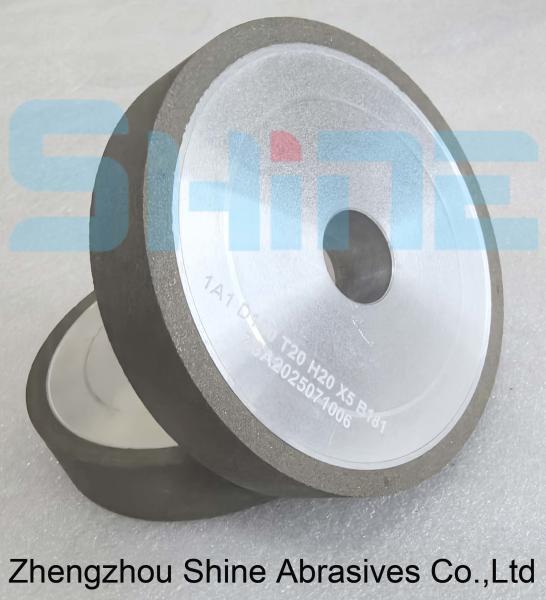

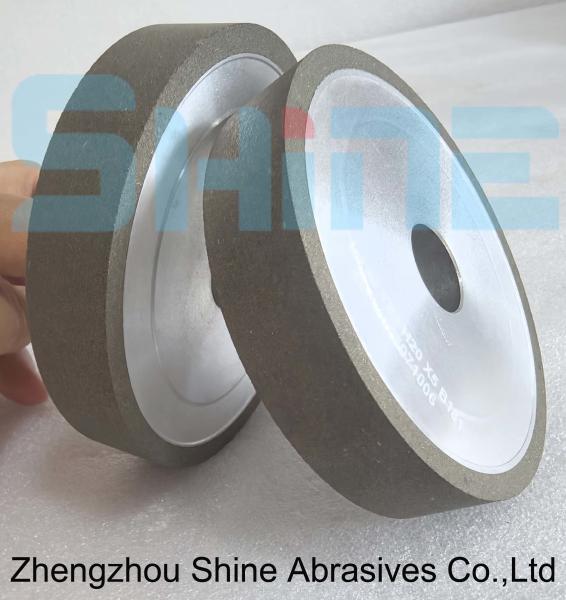

1A1 Diamond CBN Centerless resin bond centerless grinding wheel are used for processing Cemented carbide, ceramics, magnetic materials, stainless steel, PCD, PCBN composite sheets. The diamond layer contains mixed powder of diamond powder, resin powder and metal powder, and resin binder pressed filler. When the aluminum substrates are combined together, a diamond grinding wheel is used to perform rough grinding, semi-fine grinding, and fine grinding on the outer circle, inner circle, and plane of the workpiece such as carbide at high speed.

Type 1A1 Flat resin bond CBN grinding wheel
Concentration 50%,75%,125%,150%
Mesh 46#,60#,80#,100#,120#(coarse grinding);
120#,150#,180#,200#,240#(medium grinding);
280#,320#,400#,500#,600#(fine grinding);
800#,1000#,1200#,1500#,2000#,3000#(polishing)
Specification D75-H10-T5-X10 D150-H19-X5-T5 D125-T10-X10-H20/31.75
D100-T10-X10-H20/31.75 D175-H127-X4-T5 D250-H40-X10-T3
D300-H127-X10-T40 D350-H127-T20-X10 D400-H127-T40-X10
D500-H203-X10-T32
Specification sizes can be customized
Application Hard alloy, high alumina porcelain, optical glass agate gemstone, semiconductor material, ceramics, stone, etc
Why Choose Us
  • SGS, MPA certificate, Established in 2000 year, Rich producing experience.
  • Well approved by our worldwide clients, export more than 70 countries.
  • Success formula for concrete saw blade
  • Quick Delivery time
  • One-Day reply to your inquiry and question.
