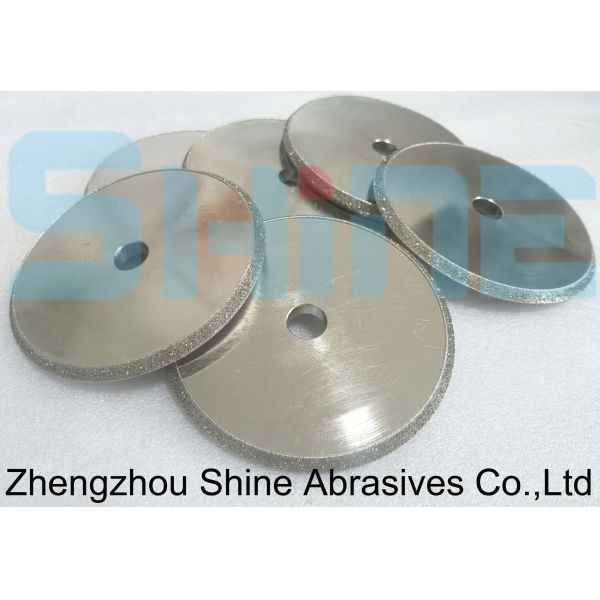

1E1 Electroplated diamond wheel for cast iron profile grinding sharpening
1E1 Electroplated diamond wheel for cast iron profile grinding sharpening
1E1 Electroplated diamond wheel for cast iron profile grinding sharpening
1E1 Electroplated diamond wheel for cast iron profile grinding sharpening
1E1 Electroplated diamond wheel for cast iron profile grinding sharpening
1E1 Electroplated diamond wheel for cast iron profile grinding sharpening
1E1 Electroplated diamond wheel for cast iron profile grinding sharpening
1E1 Electroplated diamond wheel for cast iron profile grinding sharpening
Specifications
Brand Name :
Shine Abrasives
Model Number :
4V2 1A1 14A2 9A3 1E1
Certification :
ISO
Place of Origin :
China
MOQ :
2 pcs
Price :
FOB
Payment Terms :
L/C, T/T
Supply Ability :
1000 PCS in one week
Delivery Time :
5 work days
Packaging Details :
one in paperbox
Product Shape :
Flat
Coolingmethod :
Wet or dry grinding
Bonding Material :
Electroplated
Size :
Required
Inner Hole :
According to your request
Diamond Rim Size :
20x10mm
Type :
wet/dry use
Max Operating Speed :
80 m/s
Corematerial :
Steel or aluminum alloy
Arbor Size :
5/8 inch
Abrasive Material :
Diamond
Bore Size :
12.7mm
Application :
Grinding, cutting, polishing hard materials
Shape :
1V1
Wheeldiameter :
50mm - 300mm
Description

1E1 Electroplated diamond wheel for cast iron profile grinding sharpening

1E1 150mm electroplated diamond wheel" combines a wheel shape code (1E1), a diameter (150 mm), and an electroplated diamond abrasive layer. Here’s what each part means and why this wheel is useful for cast-iron profile grinding and sharpening.Confirm the 1E1 shape with the supplier drawings so the wheel matches the required profile radius/contour precisely.Use appropriate peripheral speed—many electroplated diamond wheels run well at high surface speeds but check the wheel rating.Use intermittent cuts, light infeed, and coolant if recommended to control temperature and prolong wheel life.

Product Name
Electroplated CBN grinding wheel
Material
Diamond/CBN
Size
100mm,130mm,150mm,200mm,250mm,350mm
(Different models have different diameters thicknesses and hole sizes)
We accept customization, so if we don't have one that meets your needs, please contact us to learn more.

Diamond vs iron: Diamond reacts with pure iron at high temperature, so for high-speed heavy stock removal on steel or hot conditions it can degrade. Cast iron (with graphite) is generally less chemically aggressive than pure iron, but monitor wheel wear and temperature.
Cost: Electroplated diamond wheels are more expensive than conventional abrasives, though they often last longer and give better results for precision profiling.
Single-use layer: Electroplated wheels have a single abrasive layer. Once the monolayer wears down the wheel must be replaced or recoated—there’s no gradual self-sharpening like in some porous/bonded wheels.
Machine & speed compatibility: Match wheel RPM and machine setup to the wheel’s rated peripheral speed and the manufacturer’s recommendations. Excessive speed or thrust can shorten life or cause damage.
Safety: Use proper guards, eye and respiratory protection—cast-iron dust and coolant aerosols can be hazardous.
