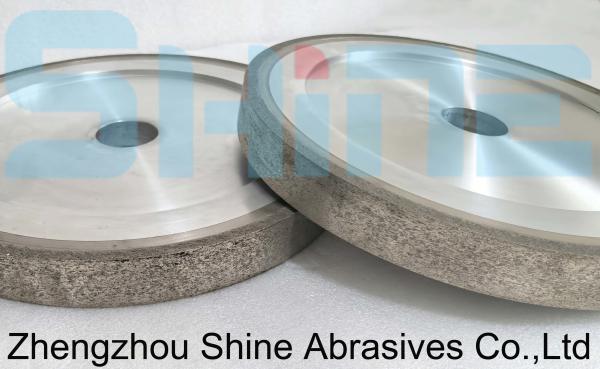

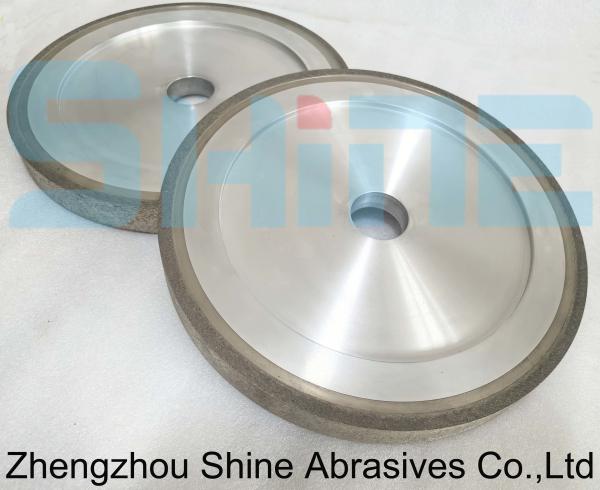

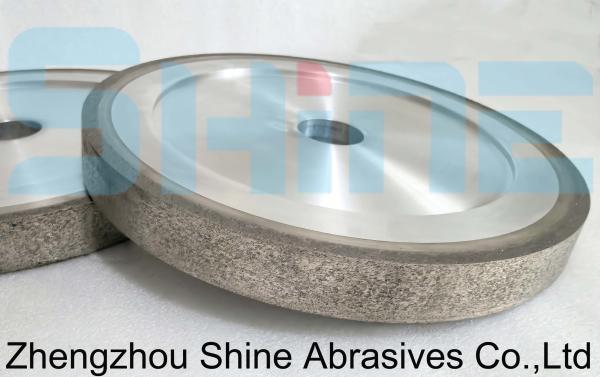

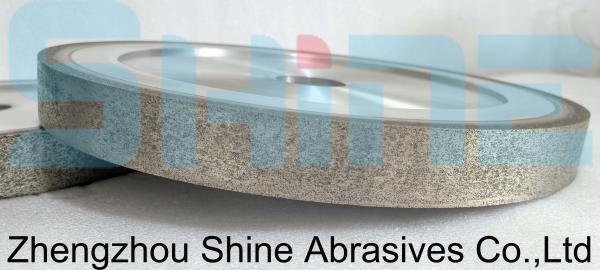

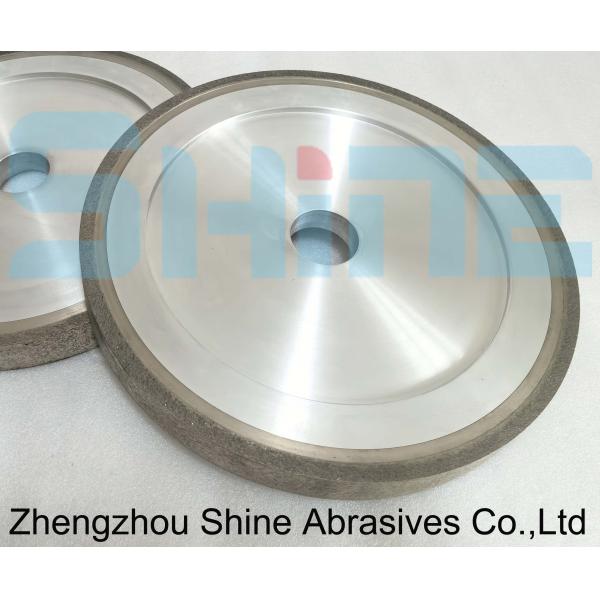

Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding
Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding
Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding
Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding
Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding
Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding
Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding
Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding
Specifications
Brand Name :
Shine Abrasives
Model Number :
4V2 1A1 14A2
Certification :
ISO
Place of Origin :
China
MOQ :
2 pcs
Price :
FOB
Payment Terms :
L/C, T/T
Supply Ability :
1000 PCS in one week
Delivery Time :
5 work days
Packaging Details :
one in paperbox
Bond Material :
Metal
Hole Size :
Customized
Wheel Color :
Silver, Gray, Black
Suitable Materials :
Metal, Ceramic, Glass, Stone
Feature :
Durable
Application :
Grinding and Polishing of Hard and Brittle Materials
Max Load :
Customized
Model :
HT-MW
Cbn Rim Size :
15x10mm
Hardness :
Standard
Bonding Material :
Metal
Machine :
Manual polishing machine
Abrasive Section :
10*10mm,15*10mm
Hole Diameter :
standard
Features :
High Efficiency, Long Lifespan, Good Self-Sharpening
Description

Metal Bond Sintered Diamond Tool Grinding Wheel for Gem Grinding

Shine Abrasives Metal bond diamond wheels are essential tools for grinding glass and ceramics, offering numerous advantages such as high durability, excellent cutting performance, and the ability to achieve superior surface finishes.Their robust design and versatility make them invaluable in various applications, from manufacturing to precision finishing. Proper selection and maintenance will enhance their performance and longevity.

Type 1A1 Flat metal bond diamond grinding wheel
Concentration 50%,75%,125%,150%
Mesh

46#,60#,80#,100#,120#(coarse grinding);

120#,150#,180#,200#,240#(medium grinding);
280#,320#,400#,500#,600#(fine grinding);
800#,1000#,1200#,1500#,2000#,3000#(polishing)
Specification

D75-H10-T5-X10 D150-H19-X5-T5

D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75
D175-H127-X4-T5 D250-H40-X10-T3
D300-H127-X10-T40 D350-H127-T20-X10
D400-H127-T40-X10 D500-H203-X10-T32
Specification sizes can be customized
Application ard alloy,high alumina porcelain,optical glass agate gemstone, semiconductor material,ceramics,stone,etc

If your machine allows, adjust the wheel speed to the recommended setting for dressing. Typically, a lower speed is preferred to enhance control and reduce heat generation.

If applicable, apply coolant to the dressing area to minimize heat buildup and improve the dressing process.
