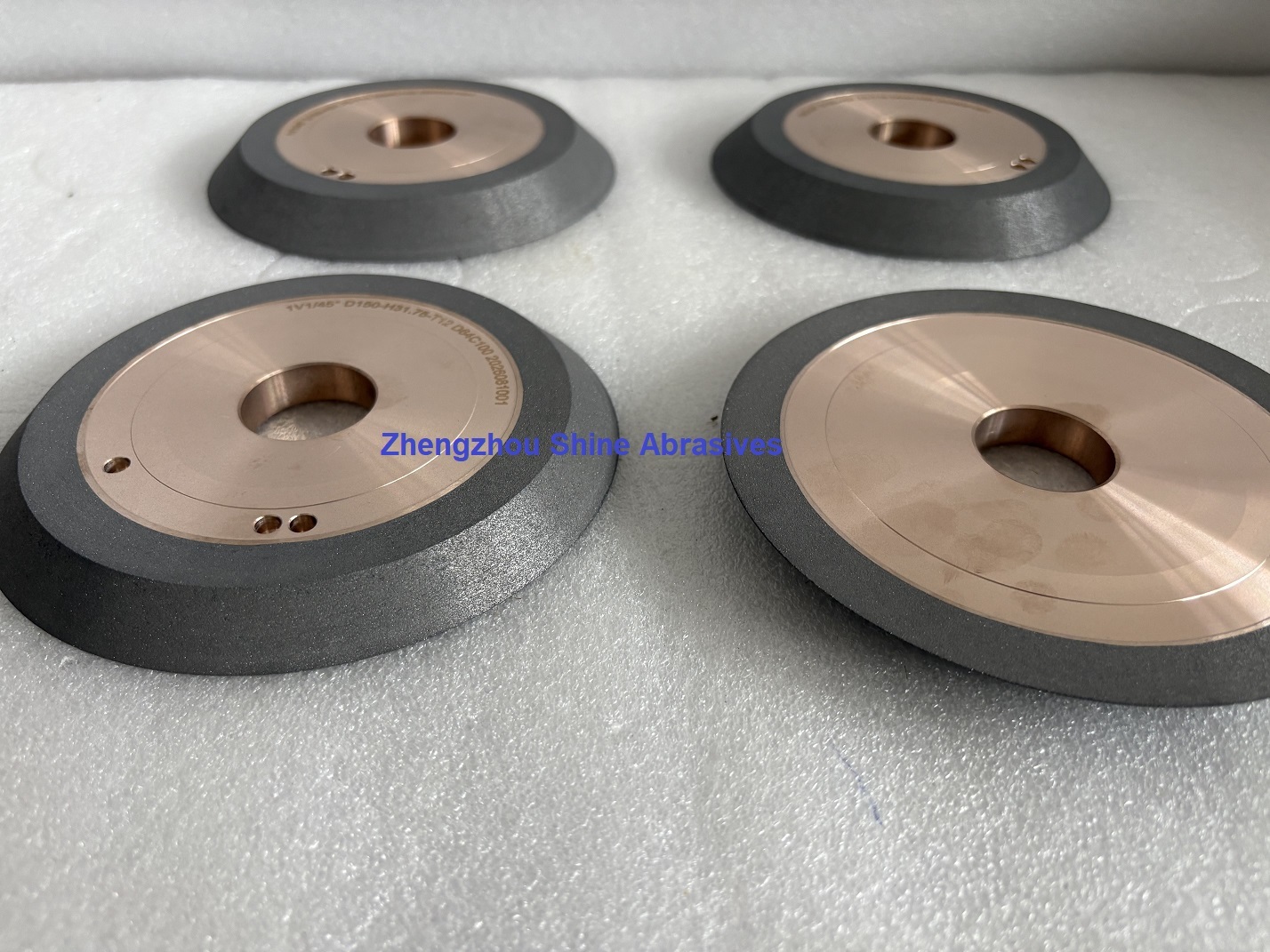

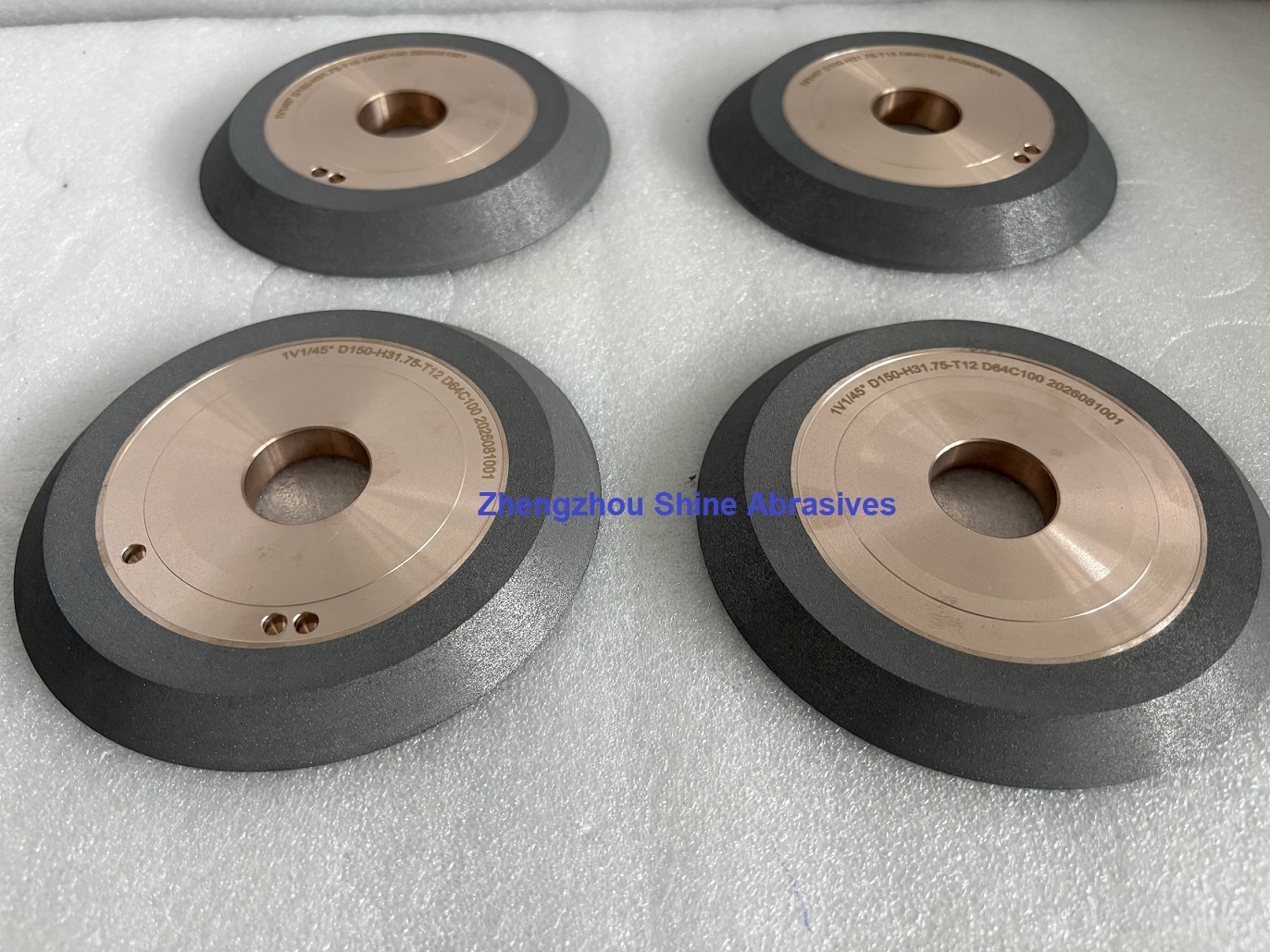

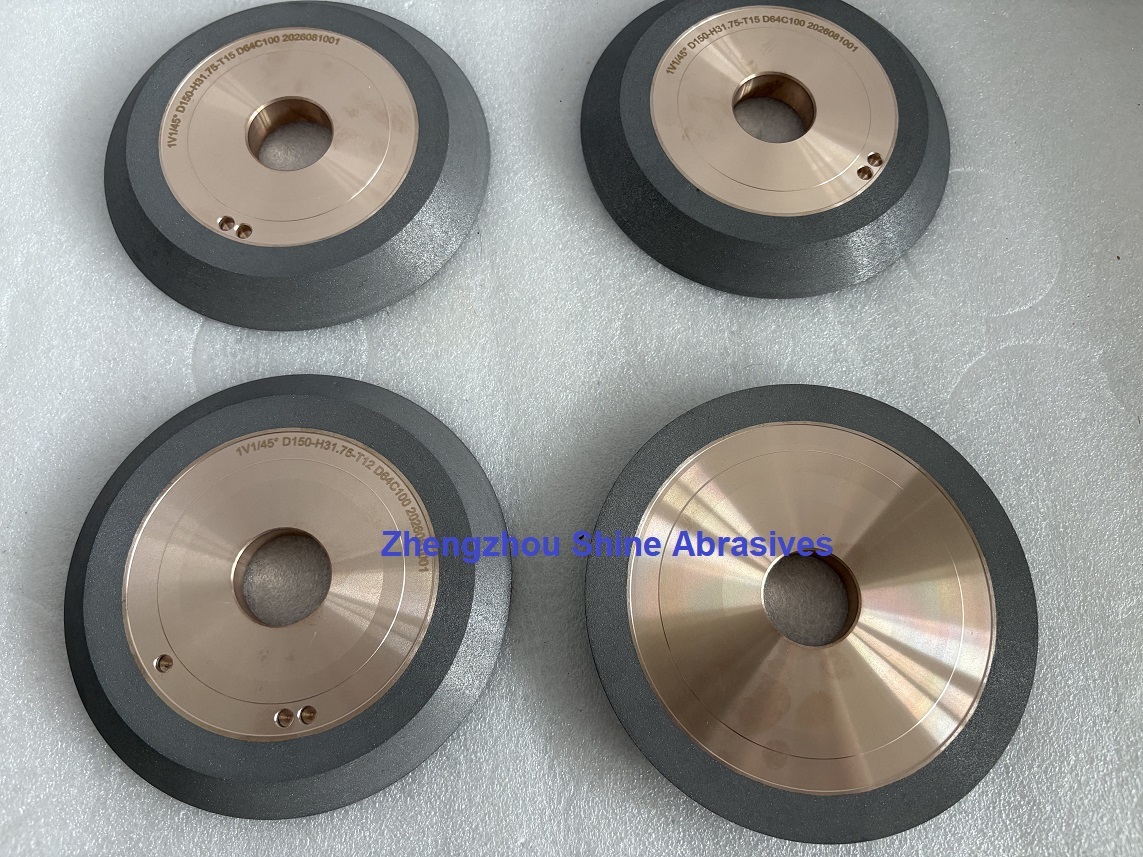

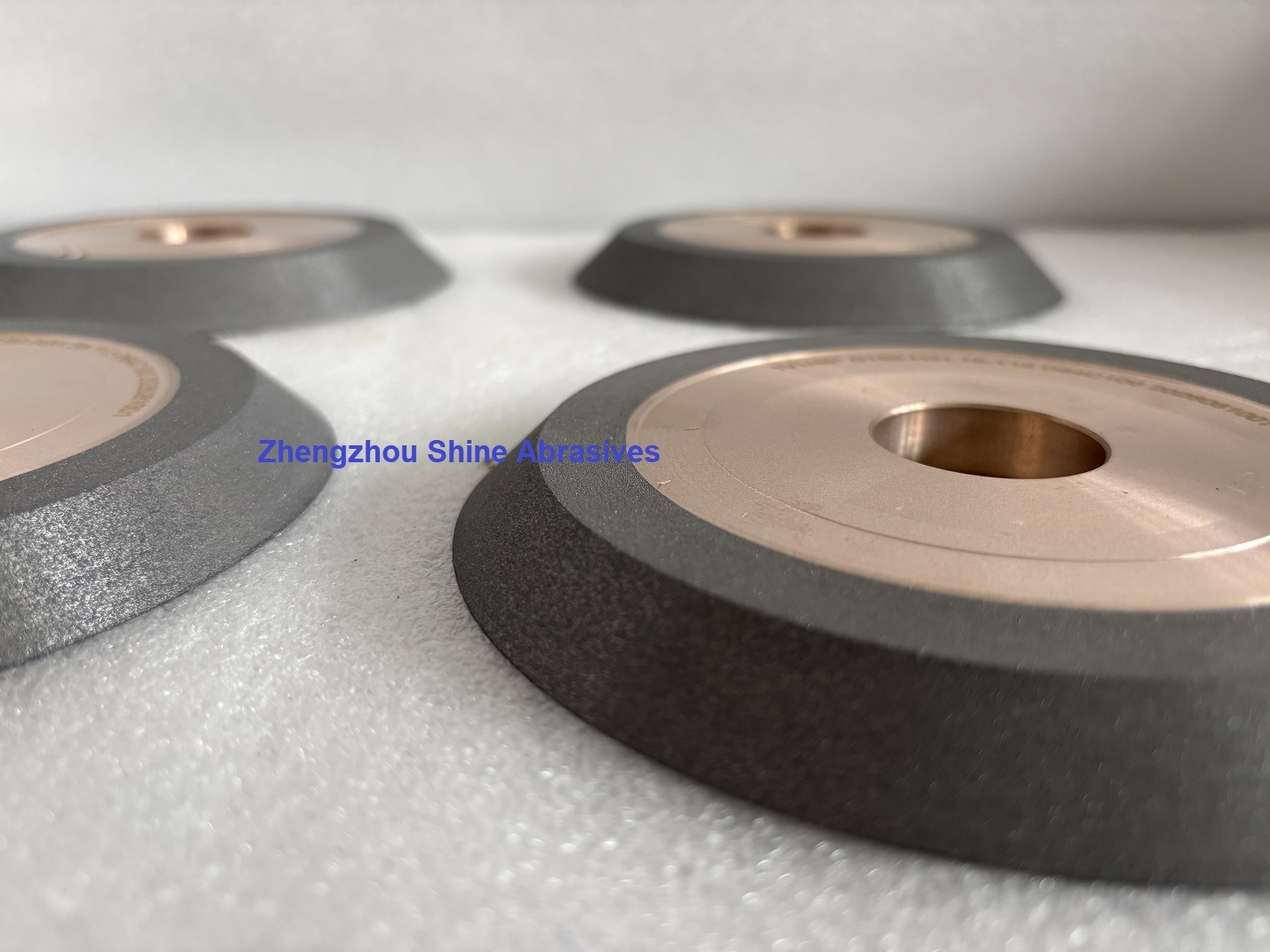

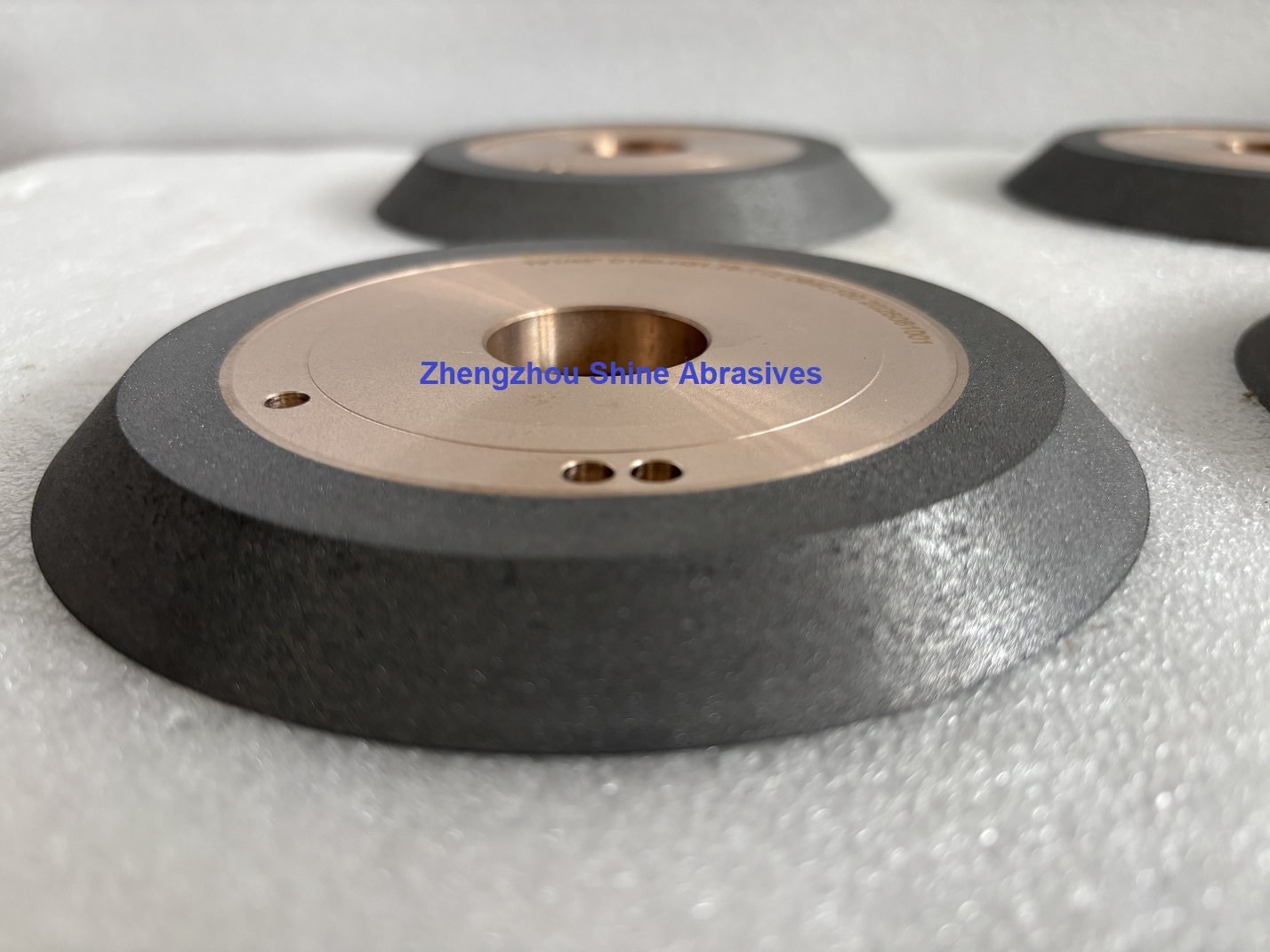

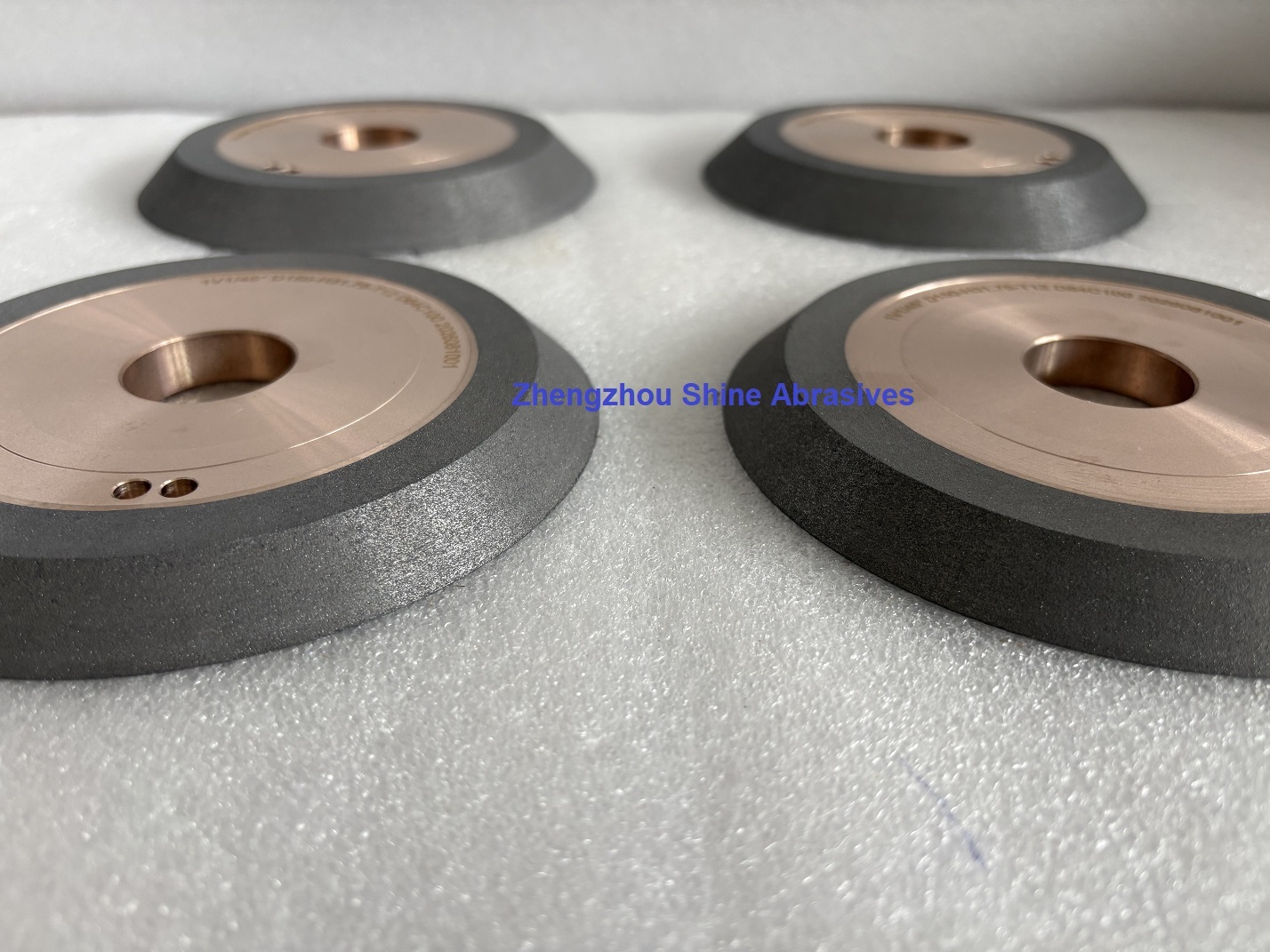

CNC Grinding Wheel 1V1 Diamond Wheel For Carbide Round Tools Fluting

The heavy-duty grooving grinding wheel is specifically designed for high-efficiency grooving operations, primarily used for cutting slots in precision components such as carbide tools and molds. Its key advantages include high efficiency (supporting deep cuts and high feed rates), extended service life (due to a wear-resistant special metal bond), and low vibration (resulting in superior machining precision). Typical applications span sectors such as aerospace, automotive, and tool manufacturing, where it significantly reduces machining costs and boosts productivity. For instance, certain models can achieve a single-pass cutting depth of up to 4 mm and feed rates of 90–130 mm/min, making them suitable for difficult-to-machine materials like hardened steel and superalloys.

Shine Abrasives CNC Grinding Wheel, Diamond wheel For Carbide round tools Flute Grinding

Flutes are the helical or straight grooves in the body of the round tool. it provides a pathway to permit the removal of chips,

allow coolants to reach the cutting surface.

Wheels work on 5-axis CNC grinder, wheels are available for CNC grinder of Anca, Makino, Rollomatic, Star, Walter,

and other CNC grinding systems

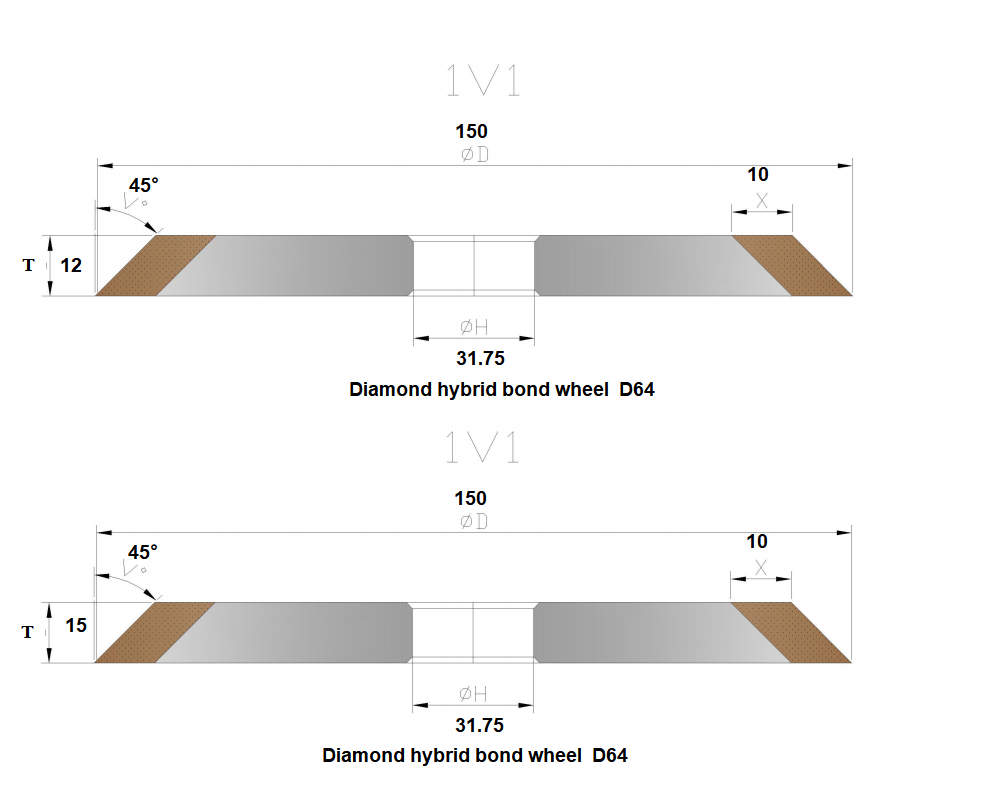

The drawing of Shine Abrasives CNC Grinding Wheel 1V1/45° Diamond Wheel For Carbide Round Tools Fluting

Main sizes form of Shine Abrasives CNC Grinding Wheel 1V1 Diamond Wheel For Carbide Round Tools Fluting

Other standard sizes also are available as requested.

The Super Abrasives Combination for Round Tools Grinding.

General Application parameters recommended.

Wheel Speed:3,000-5,000 SFPM

Infeed Rate:2" - 8" per minute

Depth of Cut:Up to 0.220"

Coolant:Oil or water soluble.

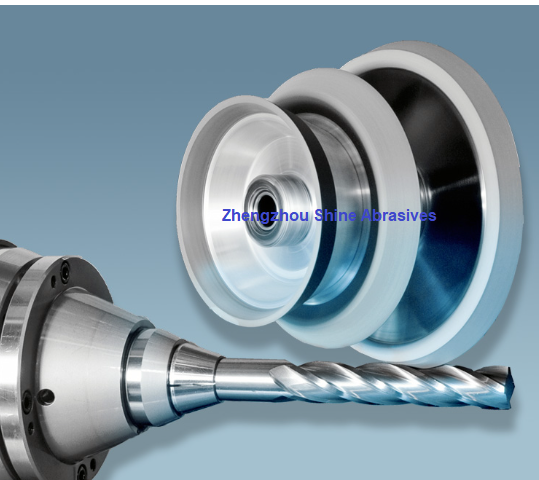

Application picture for reference.
