CBN 1A1 Diamond Wheels OD Grinding
CBN 1A1 Diamond Wheels OD Grinding
Specifications
Brand Name :
Shine Abrasives
Model Number :
1A1
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
1000 PCS per week
Delivery Time :
5 working days
Packaging Details :
1 pcs in one carton or wood box
Shape :
1A1 Straight
Diameter :
350mm
Bond Type :
Resin
Grit Size :
B100
Diamond Rim Size :
25x10mm
HS Code :
6804221000
Description

1A1 Diamond Wheels CBN For High Speed Steel Material OD Grinding

Shine Abrasives Resin bond 1A1 CBN whele For High Speed Steel(HSS)

Material OD Grinding Cylindrical Grinding And Surface Grinding

CBN (cubic boron nitride) abrasives is the second hardest solid material .

It consists of boron and nitrogen in a crystalline structure.

Due to high chemical wear, rotating diamond tools are not suitable for work on steel.

CBN tools are used for grinding below materials.

hardened steels

Roller-bearing and ball-bearing steels

Tools steels

Other steels with a hardness around 54 HRC.

The drawing of Shine Abrasives 1A1 Diamond Wheels CBN For High Speed Steel Material OD Grinding

CBN 1A1 Diamond Wheels OD Grinding

Main sizes form of Shine Abrasives 1A1 Diamond Wheels CBN For High Speed Steel Material OD Grinding

Abrasive Material:CBN Bond Type:Resin
CBN Grit:B100 Wheel Diameter:350mm
Wheel Bore:127mm Wheel Weight:10kgs/PC
Wheel Body Material:Aluminum CBN Ring Width:10mm
Wheel Thickness:25mm Concentrate: 100%

Other standard sizes also are available as requested.

Question:

What's the concentrate?

The concentration is the amount of grit in carats [ct] (= 0.2 g) per cubic centimeter of Diamond or CBN coating.

A concentration of C100% corresponds to 4.4 ct/cm³ and around 25 % of the volume of

the Diamond or CBN abrasive in the total resin bond.

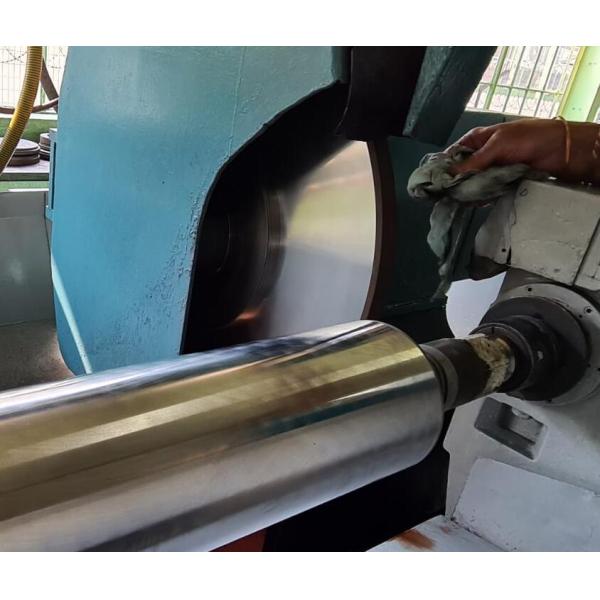

Application picture for reference.

CBN 1A1 Diamond Wheels OD Grinding
