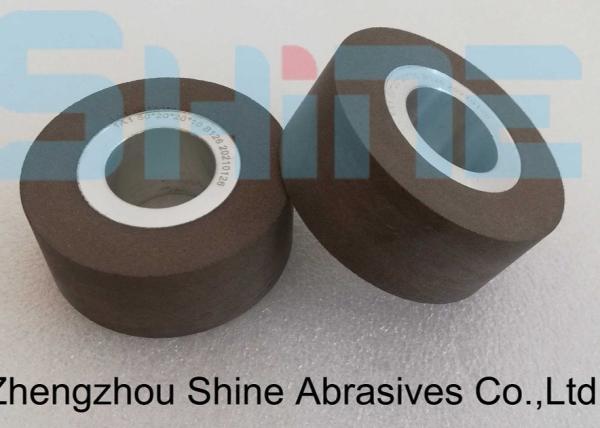

B126 1A1 Diamond Wheels 50mm For Carbide Steel Cbn Internal Grinding
B126 1A1 Diamond Wheels 50mm For Carbide Steel Cbn Internal Grinding
B126 1A1 Diamond Wheels 50mm For Carbide Steel Cbn Internal Grinding
B126 1A1 Diamond Wheels 50mm For Carbide Steel Cbn Internal Grinding
Specifications
Brand Name :
Shine Abrasives
Model Number :
1A1
Certification :
ISO
Place of Origin :
CHINA
MOQ :
5 PCS
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
5000 PCS per week
Delivery Time :
5 working days
Packaging Details :
1 pcs in one paper box or export carton
Shape :
1A1
Diameter :
50mm
Bond :
Resin
Grit Size :
B126
Rim Size :
20mmx10mm
HS Code :
6804221000
Description

1A1 Diamond Wheels 50mm For Carbide Or Steel Internal Grinding

Shine Abrasives resin bond 1A1-50mm Diamond wheels for

Carbide Internal grinding,CBN wheels for HSS materials Internal grinding.

internal holes face grinding.

The drawing of Shine Abrasives 1A1 Diamond Wheels 50mm For Carbide Or Steel Internal Grinding

B126 1A1 Diamond Wheels 50mm For Carbide Steel Cbn Internal Grinding

Specifications of Shine Abrasives 1A1 Diamond Wheels 50mm For Carbide Or Steel Internal Grinding

Abrasive Material:CBN Bond Type:Resin
Diamond Rim Size:20x10mm Diamond Grit:B126,
Concentration:100% Wheel Diameter: 50mm
Wheel Thickness:20mm Wheel Bore: 20mm
Wheel Type:1A1 Wheel Weight:0.2kgs/PC

Question.

What is the Internal Grinding?

The internal Grinding is mainly used for grinding the inner hole surface and its end surface with

Cylindrical, conical or other shapes.

Internal grinding machines have kinds of ordinary internal grinding machines,

planetary internal grinding machines, centerless internal grinding machines,

coordinate grinding machines and special-purpose internal grinding machines.

Application picture for reference

B126 1A1 Diamond Wheels 50mm For Carbide Steel Cbn Internal Grinding
