80mm Rotary Diamond Disc R0.15mm Diamond Dressing Tools
80mm Rotary Diamond Disc R0.15mm Diamond Dressing Tools
80mm Rotary Diamond Disc R0.15mm Diamond Dressing Tools
80mm Rotary Diamond Disc R0.15mm Diamond Dressing Tools
80mm Rotary Diamond Disc R0.15mm Diamond Dressing Tools
80mm Rotary Diamond Disc R0.15mm Diamond Dressing Tools
Specifications
Brand Name :
Shine Abrasives
Model Number :
1F1
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
1000 PCS per week
Delivery Time :
10 working days
Packaging Details :
1 pcs in one wooden box
Materials :
CVD Diamond and steel body
Bond :
Sinter
Diameter :
80mm
HS Code :
8207901000
Description

80mm CVD Rotary Diamond Disc CNC Dressers For Grinding Wheels

Shine Abrasives CNC dressing discs with natural diamond or CVD diamond

Main used for dressing abrasives grinding wheel.Bearing races,Gears,Engine valves,etc.

CNC dressing discs are not dedicated to specific component profile and so give flexibility.

The form is generated by CNC control. CNC dressing discs are used on specialized dressing spindles.

These contain high precision bearings with close roundness tolerances to ensure out repeatability

and accurate geometries are achieved.

CNC dressing discs with natural diamond or CVD diamond are used to dress conventional grinding wheels.

Self-sharpening rotary dressers for dressing superabrasive grinding wheels are available.

Main sizes form of Shine Abrasives 80mm CVD Rotary Diamond Disc CNC Dressers For Grinding Wheels

Abrasive Material:CVD Bond Type:Sintering
Radius:R0.15mm Diameter: 80mm
Bore:40mmH3 Wheel Weight:0.8kgs/PC
Thickness:10mm Body Material: Steel

Other standard sizes also are available as requested.

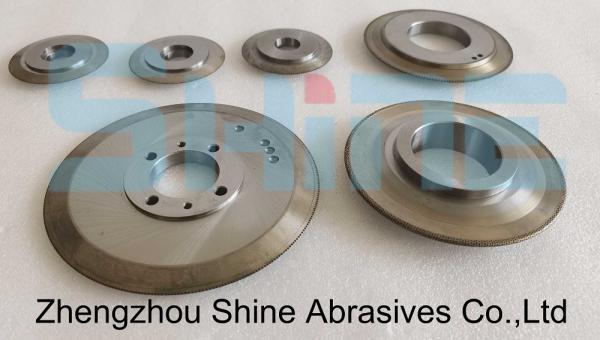

Typical profile shapes of Shine Abrasives Diamond Dressing Tools CVD Rotary Disc

For Grinding Wheels Dressing.

80mm Rotary Diamond Disc R0.15mm Diamond Dressing Tools

Features of Shine Abrasives 80mm CVD Rotary Diamond Disc CNC Dressers For Grinding Wheels

CVD and radius optimized for greater consistency and longer life

Precision tools with a radius as small as 0.100mm

Relapping to original tolerances, reducing the need for new dressers
Wear evenly over the dresser's entire length
Outstanding thermal stability

Good run-out and sizes tolerances

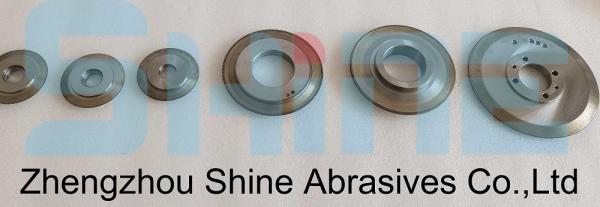

Application picture for reference.
80mm Rotary Diamond Disc R0.15mm Diamond Dressing Tools
