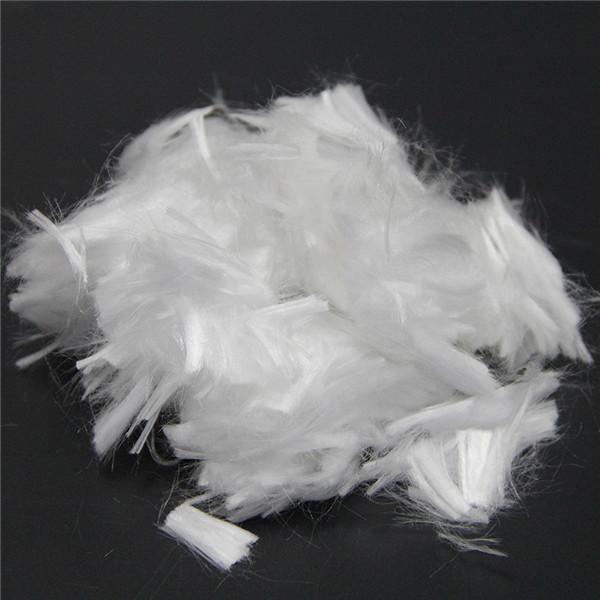

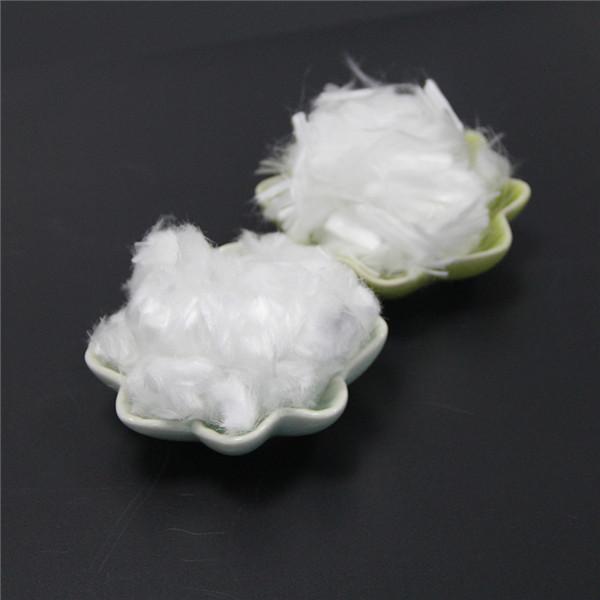

Pale Yellow Shortcut Fiber Of Polyacrylonitrile Fiber For Concrete Use PAN Fiber
Pale Yellow Shortcut Fiber Of Polyacrylonitrile Fiber For Concrete Use PAN Fiber
Pale Yellow Shortcut Fiber Of Polyacrylonitrile Fiber For Concrete Use PAN Fiber
Pale Yellow Shortcut Fiber Of Polyacrylonitrile Fiber For Concrete Use PAN Fiber
Specifications
Brand Name :
Briture
Place of Origin :
China
MOQ :
1000kg
Price :
USD1.80- USD2.20
Payment Terms :
L/C, T/T
Supply Ability :
2000 ton annual
Delivery Time :
2-3 weeks
Packaging Details :
1kg per PE bag, 10kg per plastic woven bag or water soluble paper bag.
Appearance :
short cut pale yellow
Use :
Concrete reinforcement
Strength :
750 Mpa.
Material :
PAN
Diameter :
13 microns.
Moludus :
10 Gpa.
Description

Polyacrylonitrile fiber is an advanced organic fiber aimed at the modern projects and constructions. It has many advantages such as large original modulus, high tensile strength, anti-acid, alkali, corrosion, good dispersing, large oil-absorbency and stable with chemicals. It also has good bearing ability in bad weather and strong light.

Product name
PAN Fiber
Diameter
13microns
Length
6mm 12mm
Tensile Strength
>750Mpa
Moludus
10Gpa
Acid & Alkali
Resistance
Strong

Applying Instruction:

Compounding amount: generally, 1.0kg/m3,fiber to cement mortar are enough. Particularly it depends on the designing.The proper amount of fiber to bitumen concrete depends on the traffic flux. When the traffic flux is below 5000, the admixture quantity is 1.5~2.0kg/ton, when the flux is about 5000~60000, the quantity is about 2.5~3.0kg/ton, when the flux exceeds 60000, the quantity is about 3.5kg/ton.

Applying Field

Bridge projects: deck, expansion joint, quiver, pier column, pile foundation work, etc.

Road projects: road surface, the stop way of the bus station and toll station, etc.

Irrigation projects: port, port, road deck, channel, spillway, moraine dam channel, etc.

Construction projects: damp proof for roof, columniation, putty, industrial terrace, natatorium, etc.

Tunnel and underground projects: jet aiming support, concrete lining, timber, etc. Airport projects: runway, packing apron sleeper, etc.

Specification:

Raw Material
PAN
Fiber Type
monofilament
Length (mm)
6, 12
Diameter (microns)
13
Strength (Mpa)
750 min.
Crack Elongation (%)
15-20.
Moludus (Gpa)
10min.
Density (g/cm3)
1.18
titer (dtex)
1.5+/-0.2
Acid & Alkali resistance
Strong
