1. Parameter
| Module | Module Size | 250mm(W)*250mm(H) |
| Pixel Pitch | 2.6mm/ 2.9mm/ 3.91mm/ 4.81mm |
| Pixel Density | 147928dot /㎡ 118906dot /㎡ 65536dot /㎡ 43264 dot/m2 |
| Pixel Configuration | 1R1G1B |
| LED Specification | SMD1415 SMD1921 |
| Pixel Resolution | 96dot*96dot 86dot*86dot 64dot*64dot 52dot*52dot |
| Max Power Consumption | 40W |
| Panel Weight | 0.6KG |
| Cabinet | Cabinet Size | 500*500mm,500*1000mm |
| Cabinet Resolution | 192*192 172*172 128*128 104*104 |
| Quantity of Panel | 4pcs, 8pcs |
| Hub Connecting | HUB75-E |
| Material | Die-casting aluminum cabinet |
| Maintenance Method | Front/Back service |
| Best Viewing Angle | 170/120° |
| Power Supply | AC110V/220V-5V40A |
| Max Power Consumption | 1200W/㎡ |
| Average power consumption | 600W/m² |
| Technical Signal Index | Driving IC | ICN2153 |
| Scan Rate | 1/24S 1/21S 1/16S 1/13S |
| Refresh Frequency | 3840-7680HZ/S |
| Display Color | 4096*4096*4096(16bit) |
| Contrast Ratio | 4000:1 |
| Brightness | 4000-4500 cd/㎡ |
| Life Span | 100000Hours |
| Best Viewing Distance | 2-30M |
| Operating Temperature | -20℃~60℃ |
| Operating Humidity | 10-90% |
| IP Protective Index | IP65 |
2. Core Features and Advantages
- High Brightness and Strong Anti-Glare Performance: Utilizes high-brightness LED modules to maintain clear and vivid images even under direct sunlight, ensuring exceptional visual impact in daytime outdoor settings.

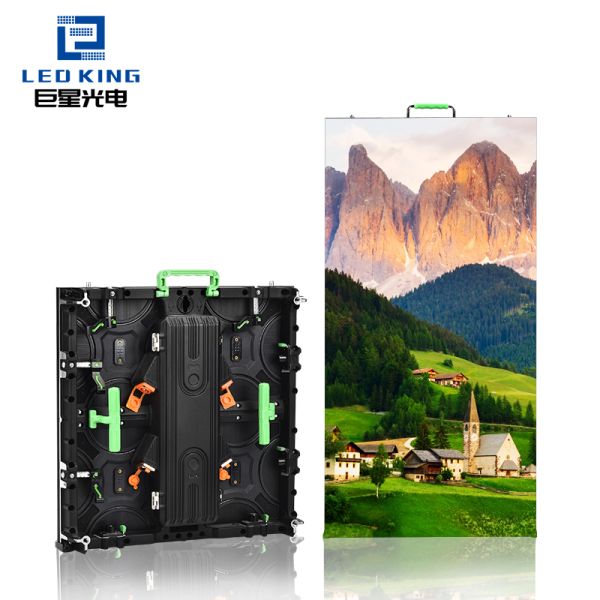

- Quick Assembly/Disassembly and Modular Design: Features lightweight enclosures (e.g., die-cast aluminum) supporting front/rear maintenance. Enables tool-free rapid assembly and disassembly, significantly boosting installation efficiency and accommodating frequent rental turnover demands.
- Robust Durability and All-Weather Adaptability: Featuring IP65 protection rating, dustproof and waterproof, withstands outdoor challenges like wind, rain, high temperatures, and humidity, ensuring stable operation in harsh weather conditions.
- Simple Operation, Effortless Control: Paired with industry-standard controllers like Nova, featuring an intuitive software interface that supports real-time content switching, color calibration, and fault monitoring. Non-technical personnel can quickly master operation, substantially lowering the learning curve.
- Energy Efficiency & Low Operating Costs
Employs energy-saving drive technology and intelligent brightness adjustment systems to reduce power consumption without compromising performance. The rental model itself eliminates high purchase and maintenance costs for customers, enabling asset-light, on-demand usage.

3. Application Scenarios

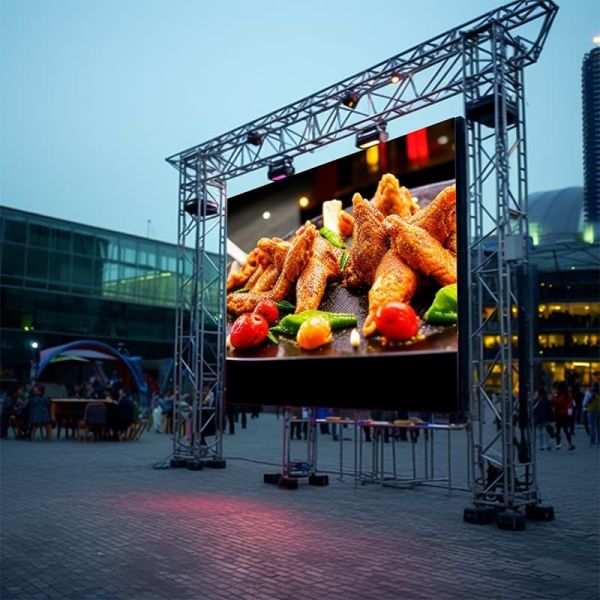

- Large-scale performances: Serving as the main and side screens for music festivals and concerts, simultaneously displaying singer close-ups, cool VJ visual effects, and lyrics, creating an immersive and celebratory atmosphere.
- Commercial launch events: Used for new product launches and brand recruitment events, serving as a core information window to showcase product details, speeches, and data charts in high definition, highlighting a professional and high-end brand image.
- Celebrations and ceremonies: Serving themed weddings, anniversary celebrations, and award ceremonies, serving as a dynamic backdrop to play love stories, life journeys, and moments of honor, greatly enhancing the sense of ceremony and atmosphere of the event.
- Cultural exhibitions: Applied to auto shows, art exhibitions, and temporary museum exhibitions, serving as a digital display terminal to continuously play promotional videos or in-depth explanations, bringing static exhibits to life.
- Public festival plazas: Used for large-scale outdoor celebrations such as city cultural festivals, sports event plazas (fan plazas), and New Year's countdowns, serving as a public information screen to broadcast the event live and create a festive atmosphere with crowds flocking to the area.
- High-end Business Meetings: Set up at high-level forums, summits, and thank-you banquets, serving as the main visual backdrop to clearly present speaker, topic, and guest information, enhancing the meeting's prestige and professionalism.
- Temporary Information Hub: In scenarios such as emergency command, temporary policy dissemination, and large-scale event entrance guidance, serving as a temporary information dissemination center to efficiently transmit key instructions and dynamic information.
4. Certification
The product has obtained CE, FCC, and ISO certifications.
5. Packaging Ways

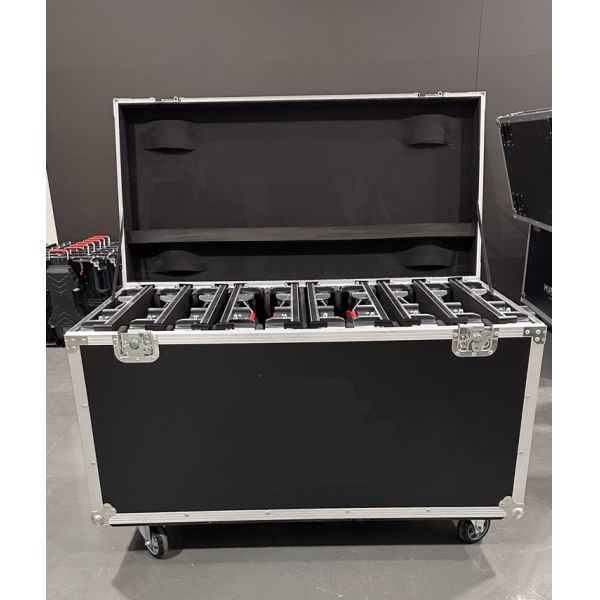

To ensure rental transport safety and enhance brand visibility, we provide standard impact-resistant flight cases with complimentary custom branding services. This safeguards your screens and transforms shipping into a mobile advertisement for your brand.

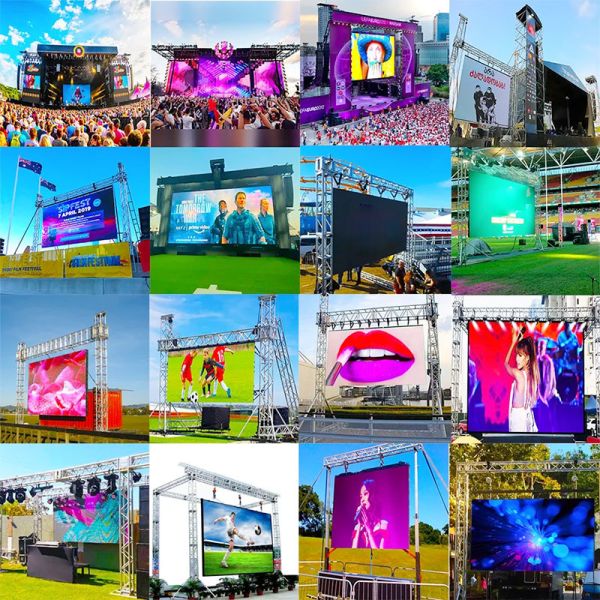

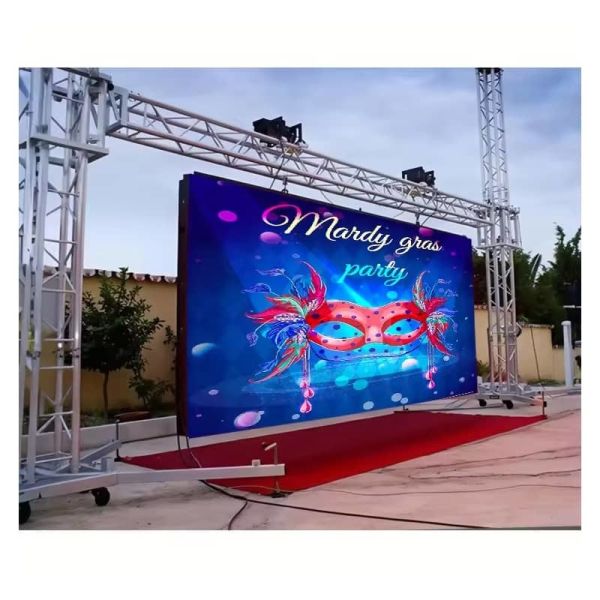

6. Case
