1. Parameter
| Module | Module Size | 250mm(W)*250mm(H) |
| Pixel Pitch | 3.91mm |
| Pixel Density | 65536 dot /㎡ |
| Pixel Configuration | 1R1G1B |
| LED Specification | SMD1921 |
| Pixel Resolution | 64dot*64dot |
| Max Power Consumption | 40W |
| Panel Weight | 0.6KG |
| Cabinet | Cabinet Size | 500*500mm |
| Cabinet Resolution | 128 dot*128 dot |
| Quantity of Panel | 4pcs |
| Hub Connecting | HUB75-E |
| Material | Die-casting aluminum cabinet |
| Maintenance Method | Front/Back service |
| Best Viewing Angle | 170/120° |
| Power Supply | AC110V/220V-5V60A |
| Max Power Consumption | 800W/㎡ |
| Average power consumption | 400W/m² |
| Technical Signal Index | Driving IC | ICN1065 |
| Scan Rate | 1/16S |
| Refresh Frequency | 3840-7680HZ/S |
| Display Color | 4096*4096*4096(16bit) |
| Contrast Ratio | 4000:1 |
| Brightness | 800-1000 cd/㎡ |
| Life Span | 100000Hours |
| Best Viewing Distance | 3-30M |
| Operating Temperature | -10℃~45℃ |
| Operating Humidity | 10-90% |
| IP Protective Index | IP43 |
2. Core Features and Advantages
- Stunning visual experience with ultra-high-definition, detailed picture quality: An ultra-small 3.91mm pixel pitch delivers higher pixel density, resulting in clear, sharp images without graininess. Even when viewed up close in the front row, perfect detail is presented, making it ideal for high-end stages, brand launches, and other occasions demanding in terms of picture quality.
- Lightweight design for quick installation and disassembly: Utilizing a high-strength, lightweight aluminum cabinet design, it can be easily moved and installed by a single person. Equipped with a precise and fast locking mechanism, it greatly improves the efficiency of setup and disassembly, saving rental customers valuable time and labor costs.
- High refresh rate and excellent grayscale performance: Boasting a high refresh rate, it produces no scan lines or water ripples in camera shots, meeting the needs of professional live streaming and photography. Superior grayscale levels result in smoother, more natural color transitions and stronger image depth.
- High contrast and rich, realistic colors: Employing black surface treatment technology, it significantly enhances contrast, making blacks deeper and colors more vibrant and saturated. Whether playing dynamic videos or still images, it delivers outstanding visual impact.
- Dedicated rental structure, stable and reliable: The robust cabinet structure is shock-resistant and pressure-resistant, able to withstand repeated disassembly and assembly. High-quality, reliable power supplies and receiver cards, combined with an efficient heat dissipation design, ensure stable operation of the screen during long-term, high-intensity rental use, with an extremely low failure rate.
- Convenient maintenance, efficient and worry-free: Supports modular front/rear maintenance, allowing for quick replacement of faulty modules or power supplies without disassembling the entire cabinet. This design minimizes troubleshooting and repair time, ensuring the smooth operation of rental activities.
3. Application Scenarios
- High-end stage performances and concerts: As the main or side screen, the P3.91's ultra-high definition and lifelike colors deliver a powerful visual impact, remaining flawless even in close-up shots. It perfectly meets the demands of professional performances for ultimate image quality, making it the top choice for elevating the event's prestige.
- Corporate launches and brand events: In launch events, award ceremonies, and brand roadshows, the exquisite image quality showcases product details, company logos, and promotional videos with crystal clarity, highlighting brand strength and ensuring an optimal viewing experience for front-row guests and media.
- TV studios and program recording: The high refresh rate ensures flicker-free and ripple-free footage under camera lenses, meeting the stringent requirements of live and recorded broadcasts. It can be used as a news background and dynamic background for variety shows, achieving an immersive effect that blends virtual and reality.
- Commercial Exhibitions and Showroom Design: In industry trade shows, museums, and corporate showrooms, its lightweight and easy-to-assemble characteristics make it suitable for building irregularly shaped creative display devices (such as curved or cubic shapes), attracting visitors with stunning dynamic content and creating an immersive viewing experience.
- Large Conference Centers and Hotel Banquets: Used for year-end celebrations, large forums, wedding banquets, etc., as a main backdrop or auxiliary information screen. The high-quality image ensures that audiences, regardless of their seating location, can clearly see the proceedings, presentation slides, and video replays.
4. Certifications
The product has obtained CE, FCC, and ISO certifications.
5. Packaging Ways

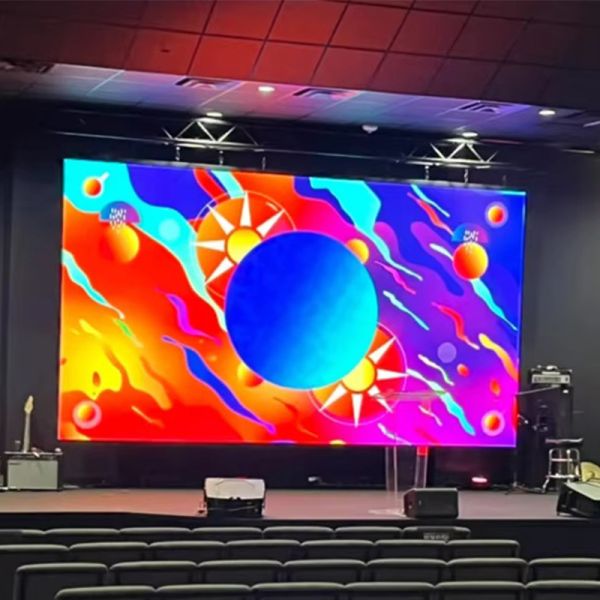

6. Case
