Hot Sale Outdoor P5 Waterproof Smd Led Display Screen for Soccer Football Stadiums Sports Led Video Wall Panel
Hot Sale Outdoor P5 Waterproof Smd Led Display Screen for Soccer Football Stadiums Sports Led Video Wall Panel
Hot Sale Outdoor P5 Waterproof Smd Led Display Screen for Soccer Football Stadiums Sports Led Video Wall Panel
Hot Sale Outdoor P5 Waterproof Smd Led Display Screen for Soccer Football Stadiums Sports Led Video Wall Panel
Specifications
Brand Name :
LED King
Model Number :
Outdoor P5
Certification :
CE FCC ISO
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$522/pc
Payment Terms :
T/T
Supply Ability :
According to your needs
Delivery Time :
15 days
Packaging Details :
Wooden case
Control system :
NOVA Star
Cabinet Size :
960mm*960mm
Cabinet Material :
Die-casting Aluminium
Panel Weight :
40kg
Life Span :
100000Hours
IC :
Chipone ICN2153
Description
1. Parameter
Module Module Size 320mm(W)*160mm(H)

Pixel Pitch 5mm

Pixel Density 40000 dot /㎡

Pixel Configuration 1R1G1B

LED Specification SMD1921

Pixel Resolution 64 dot*32 dot

Max Power Consumption 40W

Panel Weight 0.45KG
Cabinet Cabinet Size 960mm*960mm

Cabinet Resolution 192 dot*192 dot

Quantity of Panel 18pcs

Hub Connecting HUB75-E

Material Die-casting aluminum cabinet

Maintenance Method Front/Back service

Best Viewing Angle 170/120°

Power Supply AC110V/220V-5V60A

Max Power Consumption 1200W/㎡

Average power consumption 600W/m²
Technical Signal Index Driving IC ICN2153

Scan Rate 1/8S

Refresh Frequency 3840-7680HZ/S

Display Color 4096*4096*4096(16bit)

Contrast Ratio 4000:1

Brightness 4500-5500 cd/㎡

Life Span 100000Hours

Best Viewing Distance 5-40M

Operating Temperature -10℃~45℃

Operating Humidity 10-90%

IP Protective Index IP65
2. Core Features and Advantages


  • Ultra-High Brightness, Unfazed by Direct Sunlight: P5 outdoor displays typically feature brightness levels of 5000-8000 nits or higher, effectively countering direct midday sunlight. This ensures vivid, clear visuals with distinct details under varying weather and lighting conditions, guaranteeing optimal viewing experiences from any angle.
  • Exceptional waterproofing and dust resistance for 24/7 stable operation: Featuring a high IP65 protection rating, it effectively blocks dust and insects, ensuring safe, stable 24/7 operation even in harsh conditions like heavy rain or sandstorms.
  • High refresh rate and superior grayscale performance capture high-speed motion: Featuring a high refresh rate (≥3840Hz) and high grayscale levels, it perfectly renders the instantaneous movements of fast-paced football action during filming, broadcasting, or live viewing. Free from motion blur and flicker, the display delivers smooth, detailed visuals, significantly enhancing the quality of live event broadcasts and the immersive experience of on-site spectators.

Hot Sale Outdoor P5 Waterproof Smd Led Display Screen for Soccer Football Stadiums Sports Led Video Wall Panel

3. Application Scenarios
  • On-site Interaction and Entertainment: Interactive segments such as fan cams, live raffles, and Kiss Cam energize the crowd and are key tools for creating a vibrant home-field atmosphere.
  • Event Sponsor Advertising: High-brightness, high-definition rotation of main sponsor and official partner brand ads and product promotions during pre-game, halftime, and match breaks delivers significant commercial value.
  • Venue Perimeter Commercial Promotion: Promote in-venue dining and souvenir shop promotions, or advertisements for nearby commercial district events, directly driving consumer spending and generating revenue.
  • Public Notices and Safety Alerts: Display critical public service information including venue safety guidelines, evacuation routes, weather warnings, and missing person notices.
  • Pre-game light shows and visual spectacles: Combine sound and light effects to play impactful team promotional videos, city image films, or special effects animations, building audience excitement to a fever pitch during player introductions and before kickoff.

4.Certification
The product has obtained CE, FCC, and ISO certifications.

5. Packaging Ways
Hot Sale Outdoor P5 Waterproof Smd Led Display Screen for Soccer Football Stadiums Sports Led Video Wall Panel Hot Sale Outdoor P5 Waterproof Smd Led Display Screen for Soccer Football Stadiums Sports Led Video Wall Panel

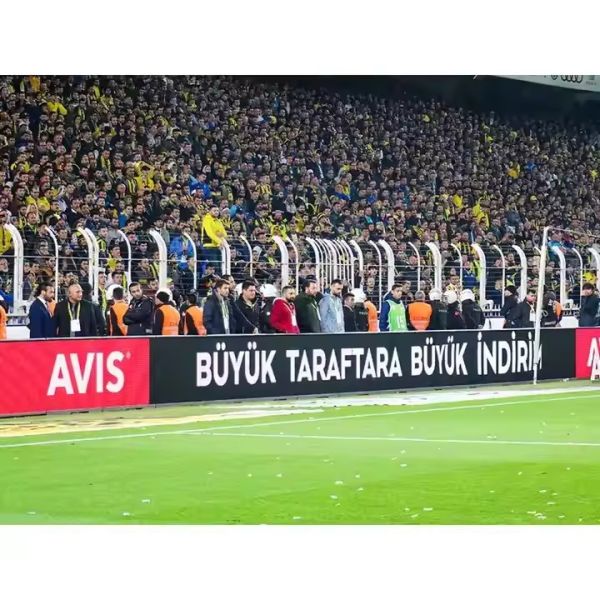

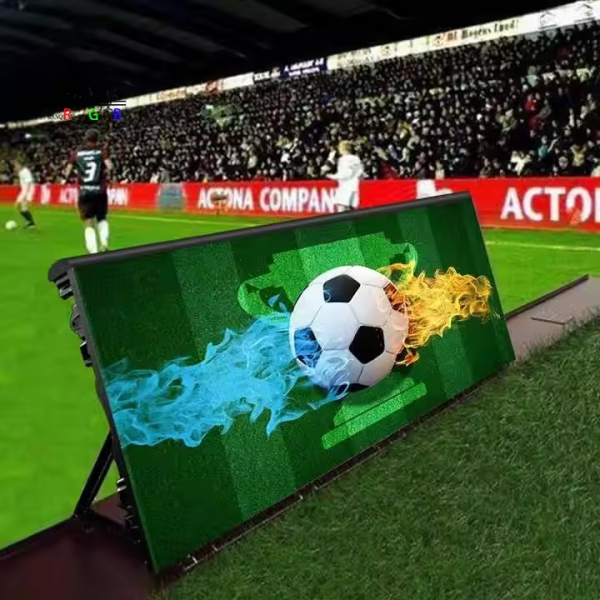

6. Case
Hot Sale Outdoor P5 Waterproof Smd Led Display Screen for Soccer Football Stadiums Sports Led Video Wall Panel
