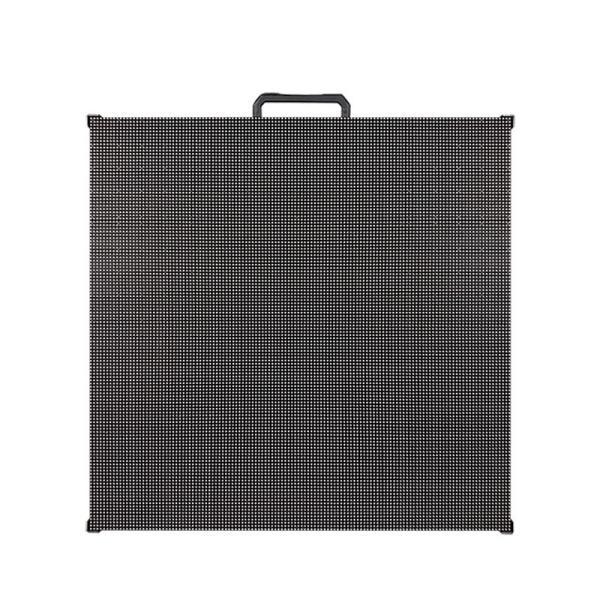

P2.97mm Indoor Rental LED Screen Vedio Panel Prive Aluminum Die Cast Box
P2.97mm Indoor Rental LED Screen Vedio Panel Prive Aluminum Die Cast Box
P2.97mm Indoor Rental LED Screen Vedio Panel Prive Aluminum Die Cast Box
P2.97mm Indoor Rental LED Screen Vedio Panel Prive Aluminum Die Cast Box
Specifications
Brand Name :
CRTOP
Model Number :
P2.97mm
Certification :
CE/FCC
Place of Origin :
CHINA
PITCH :
2.97mm
module size :
250*250mm
box size :
500*500mm
material :
aluminum die cast cabinet
brightness :
≥1000cd
refresh :
3840Hz
power supply :
100-240V
View angle :
≥140º
view distance :
5m
characteristic :
great sense of space and visual tension in the state
Description

P2.97mm Indoor Rental LED Screen Vedio Panel Prive Aluminum Die Cast Box


Rental led display,led wall parameter:

  1. The overall use of frame-type visual design, the combination of the scattered and orderly appearance of the box, the hidden upper handle and the integrated power box , not only improves the operating experience, but also forms a more differentiated brand symbol characteristics. It has a great sense of space and visual tension in the state, giving people the product characteristics of firmness, stability and strong operability
  2. The bump design of the mask enhances the crash resistance of the surface of the module; the glue filling process of the lamp feet enhances the thrust; the maintenance cost of the lamp is reduced; the super edge guard LED lamp protection structure , automatic expansion, is especially suitable for multiple disassembly and assembly, safe and convenient; The bottom of the box is specially designed to avoid bumping the lamp surface when the product is transported;
  3. Arc, corner and various creative shapes can be realized through positioning posts and multi-functional lock connectors ; the standard box can achieve 5° inner arc without adding custom locks or box assembly parts , providing a variety of possibilities for on- site design

4. giving people the product characteristics of firmness, stability and strong operability

5. The bump design of the mask enhances the crash resistance of the surface of the module;

6. the glue filling process of the lamp feet enhances the thrust;
PITICH:
indoor P2.604, P2.97, P3.91
Outdoor P2.97, P3.91, P4.81
Module size:250x250mm
Box size: 500*500mm

project parameter Remark

BASIC PARAMETER

 pixel pitch 2.97mm _
pixel structure 1R1G1B
pixel density 113367 /m 2
Module resolution 8 4 (W) * 8 4 (H)
Module size 250mm*250mm
cabinet size 500mm*500mm die casting

OPTIC PARAMETER

 Single point luminance, chromaticity correction have
white balance brightness ≥ 1000cd/㎡
color temperature 2000K—12500K adjustable
Horizontal viewing angle ≥ 160°
vertical viewing angle ≥ 140°
Visible distance ≥9m
Brightness uniformity ≥97%
Contrast ≥5000:1

Proccessing performace

 Signal processing bits 16 bits*3
grayscale 12-14Bit
control distance Gigabit Ethernet cable: 100 meters, Optical fiber: 10 kilometers
drive mode High gray-scale constant current source driver IC
frame rate ≥ 60HZ
refresh rate ≥1920-3840 Hz
way to control Synchronize
Brightness adjustment range 0 to 100 stepless adjustment

Operation parameter

 Continuous working time ≥72 hours
Typical life 50,000 hours
Protection class IP20
range of working temperature -20℃ to 50℃
Operating humidity range 10 %- 80% RH non-condensing
Storage temperature range -20 ℃ to 60 ℃

Electric parameter

 Operating Voltage DC 5V
Power Requirements AC: 220×(1±10%)V, 50×(1±5%)Hz
Maximum power consumption 700W/ ㎡
Average power consumption 260W/ ㎡
