3525 Series DC24V Silicone Neon Strip Light 2835 CCT 2700K - 6500K

Specifications

MOQ :

100M

Place of Origin :

CHINA

Brand Name :

RELIGHT

Certification :

CE,ETL,UL

Model Number :

3525 Series

Price :

Delivery Time :

2-3weeks

Payment Terms :

T/T

Supply Ability :

10000M/M

Waterproof grade :

IP67

Storage environment temperature :

-25~+70°C

Working temperature :

-25~+60℃

Features :

Good flexibility, small size, light weight, easy installation

Material :

silicone

Application :

hotels, KTVs, homes, cabinets, courtyards, etc.

Description

Features:

1. DC24V low voltage input
2. Silicon extrusion process
3. CCT 2700-6500K available Uniform light emission, good appearance consistency
4. Anti-yellowing, high temperature resistance, corrosion resistance weak acid and alkali resistance
5. Standard single-ended power supply supports a 5-meter connection
6. Waterproof grade lP67
7. 5 years warranty
8. High protection rating IP65/67/68 optional

Technologies: ON/OFF

Application:

This product is suitable for engineering projects, park illumination, buildingshotels, shopping malls, residential spaces, exhibition stands, and other applications.lt can be used for indirect lighting, cove lighting, contour outlining, decorative lighting, and similar purposes.

3525 Series DC24V Silicone Neon Strip Light 2835 CCT 2700K - 6500K

Product Description

P/N	LED Quantity	CCT(K)	CRI	LED (SM)	Lumens (lm/m)	Vf. (v.)	Current (mA/m)	Power (W/m)	Cut Length(MM)	Max Run (M)
RL-FV2420240283524-827-3525	2835	2700	80	240	1300	24	1	24	20	3
		3000
		4000
		6000
RL-FV2420240283528-827-4025	2835	2700	80	240	1500	28	1.16	24	20	3
		3000
		4000
		6000
RL-FV2420240283530-827-5025	2835	2700	80	240	1650	30	1.25	24	20	3
		3000
		4000
		6000

Other Specifications

Protection grade	IP67
Working temperature(°C)	-25~+60
Storage environment temperature (°C)	-25~+70
Standard length	5
Maximum cascade length(m)	5
weight	/

Remark

The test environment temperature is 25±2°C;
The above data are typical values, the actual parameters of the product may be different from the typical data; the data is subject to change without notice;
The above "/" means that this parameter is not required for the time being.

3525 Series DC24V Silicone Neon Strip Light 2835 CCT 2700K - 6500K

Common product faults and their troubleshooting methods

Fault Phenomena	Possible Causes	Troubleshooting Methods
All lights off	1.Mains power failure	Power on
	2.0pen circuit or short circuit at switching power supplyoutput triggering auto-protection	Troubleshoot and restore power
	3.Reverse polarity at LED strip power input	Check wire connection status to ensure correct polarity
Partial lights off	1.Partial switching power supply failure	Inspect power supply system and resolve faults
	2.Wiring error in partial LED strip circuits	Inspect power supply system and resolve faults
	3.Reverse polarity in partial LED strips	Correct wiring
LED uneven brightnessor insufficient brightness	1.Power supply overload	Replace with higher-power supply according to load
	2.Excessive line loss in switching power circuits orsignificant line loss discrepancies	Maintain LED strip operating voltage within +5% of rated voltage 1. Shorten power cable length between power supply and LEDstrip or use larger gauge wires; 2. Ensure number of LED strips per circuit ≤ max allowed cascadingquantity and keep cascading quantities similar per circuit).
	3.Excessive serial connection of LED strips	Adjust LED strip quantity per power branch to meet maxallowed cascading requirements per circuit
LED flickering	1.Poor contact at connection points	Identify and resolve poor contact points
LED flickering	2.Switching power supply malfunction	Replace switching power supply

3525 Series DC24V Silicone Neon Strip Light 2835 CCT 2700K - 6500K

- If the external flexible cable of this product is damaged, the cable must be replaced by the manufacturer or similarly qualified personnel to prevent hazards.

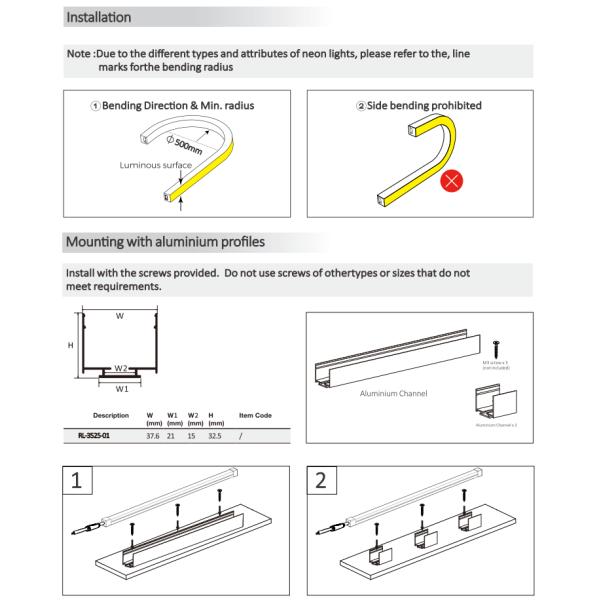

- For specific installation arrangements and precautions, refer to the product user manual.
- Data in this specification is based on standard products, Actual delivered products may vary, subject to physical measurements.
- All product diagrams in this specifcation are schematic diagrams, Actual delivered products may differ, subject to physical obiects
- Technical modifications may be implemented without prior notice.
- Shenzhen Meishang Lighting Co., Ltd. reserves the final interpretation rights of this manual.
