Specifications
MOQ :
100M
Model Number :
0808
Place of Origin :
CHINA
Brand Name :
RELIGHT
Certification :
CE,ETL,UL
Price :
Contact us to get best price
Delivery Time :
2-3weeks
Payment Terms :
T/T
Supply Ability :
10000M/M
Waterproof  grade :
IP67
Working temperature :
-25~+60℃
Features :
long lasting durability
Technologies :
ON/OFF
Description

Features

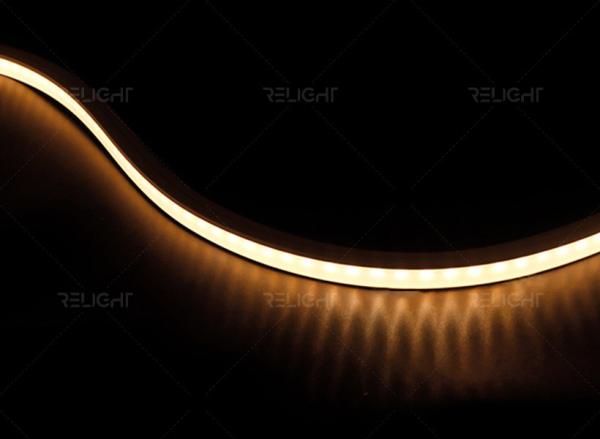

● 8x8mm neon with built-in 15°beam angle. Both the LED and neon tube incorporate optical design, delivering a 15°light emission angle.

● Superior wall washing performance - High coverage with uniform light distribution, no color deviation, and smooth, soft illumination.
● Single-end power supply - Supports connections up to 5meters in length.

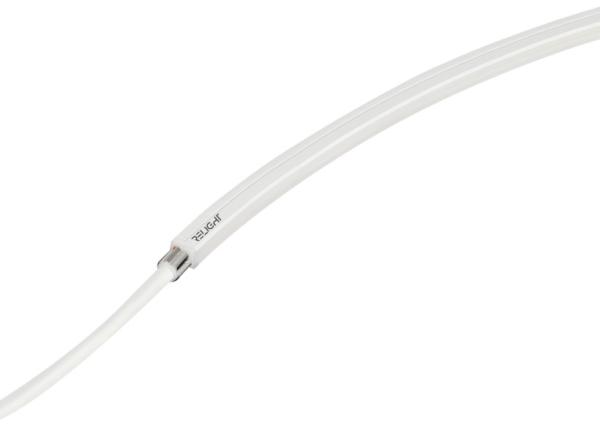

● Seamless silicone construction - Crafted with integrated extrusion molding technology using food-grade silicone material.
● Waterproof grade IP67
● 5 years warranty

Technologies: ON/OFF

Application:

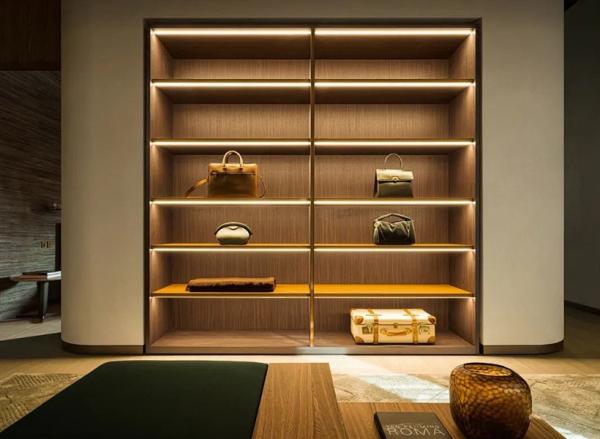

This product is suitable for use in home decoration, hotels, shopping malls, clothing stores, advertising signs, oil painting decoration,
decorative lighting, etc

0808 15°Angle Series Mini Wall Washer Strip IP67 Waterproof Wall Washing Light

Product Specifications

P/N LED Quantity CCT
K		 CRI LEDs/m LUMENS (lm/m) Vf (V) Current (mA/M) Power (W/M) Cut Length (MM) Max Run (M)
RL-FV2406I20283506-X0X-FWD0808 2835 2700 80/90 60 420 24 250 6 50 5
3000 420
4000 460
6500 460

Other Specifications

Protection grade IP67
Working temperature(°c) -25~+60
Storage environment temperature(°c) -25~+70
Standard length 5
Maximum cascade length(m) 5
weight /

Remark

  • The test environment temperature is 25±2℃;

  • The above data are typical values, the actual parameters of the product may be different from the typical data; the data is subject to change without notice;

  • The above “/” means that this parameter is not required for the time being.

Applied Standards

(CE, RoHS, cULus, ETLus, CB, Reach, UKCA)

other features

  • 1. Both the LED and neon tubeincorporate optical design, delivering a 15°light emission angle
  • 2. good wall washing effect, high irradiation intensity, uniform light, no color difference,
  • 3. Waterproof grade IP67
