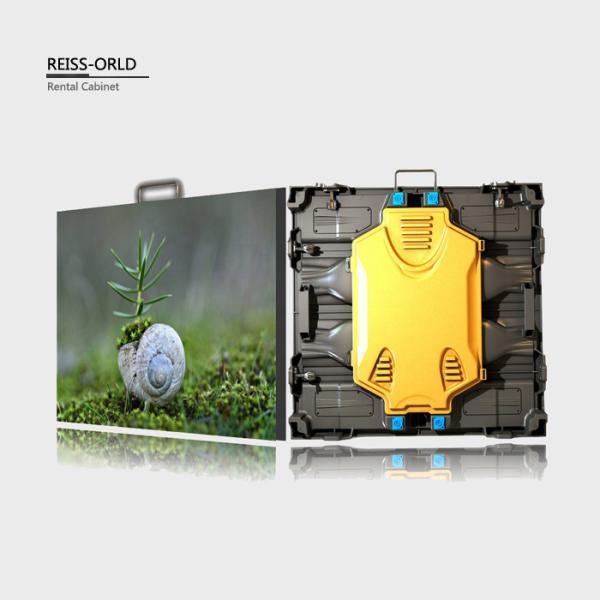

P3 Outdoor LED Video Display Rental Low Attenuation Good Weather Ability
P3 Outdoor LED Video Display Rental Low Attenuation Good Weather Ability
P3 Outdoor LED Video Display Rental Low Attenuation Good Weather Ability
P3 Outdoor LED Video Display Rental Low Attenuation Good Weather Ability
P3 Outdoor LED Video Display Rental Low Attenuation Good Weather Ability
P3 Outdoor LED Video Display Rental Low Attenuation Good Weather Ability
P3 Outdoor LED Video Display Rental Low Attenuation Good Weather Ability
P3 Outdoor LED Video Display Rental Low Attenuation Good Weather Ability
Specifications
Brand Name :
Reiss
Model Number :
ORLD-P3.33
Certification :
ROHS CE FCC EMS
Place of Origin :
Shenzhen
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
7-10 work days
MOQ :
1
Price :
Negotiable
Usage :
Outdoor
Pixels :
3
Screen dimension :
Customized
Tube chip color :
Full Color
Display function :
Video
Brightness :
6500cd/sqm
Warranty :
2-5 Years
Description

Outdoor HD Rental and Fixed LED Screen:
Small Pixel Pitch 3.1mm LED Screen
Small Pixel Pitch 3.9mm LED Screen
Small Pixel Pitch 4.8mm LED Screen
Small Pixel Pitch 5.9mm LED Screen
Small Pixel Pitch 6.25mm LED Screen

P3 Outdoor LED Video Display Rental Low Attenuation Good Weather Ability

P3 Outdoor LED Video Display Rental Low Attenuation Good Weather Ability

Full Color P3.33LED Display
Main
Model
RE-P3.33-16S
Module
Pixel pitch(mm)
3.33
LED Lamp Model
SMD1921
Module Size(W*H)
160*160 mm
Module Size(W*H)
6.3*6.3 inch
Module Resolution(W*H)
64*64
Driving Mode
Constant drive
Scan Mode
1/16
Pixel configuration (R,G,B)
1R,1G,1B
Color temperature (K) :
3200-9300
Grey scale/colors
256levels of each color(RGB)/16.7M colors
Cabinet
Standard Cabinet Size(mm)
480*480*60
(W*H*T)
Cabinet Resolution(W*H)
192*192
Cabinet Module Number
9PCS
IP Grade
IP65
Cabinet Weigh(kg)
5.5
Cabinet Material
Die Casting Aluminum
Display
Best Viewing Distance(m)
3.33-150
Pixel Density (dot/m2)
160000
Brightness(cd/m2)
≥8500
Power Max Consumption (W/m2)
≤1200
Power Average Consumption (W/m2)
400
View angle
H:160; V:160
system Specification
Control host (CPU) :
Pentium4 or above
Operating system:
WIN98/2000/NT/XP
Control method
Synchronous display with control PC by DVI
Control System
Linsn, Nova-star, Colorlight or as you required
Display Content
Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
Interface definition
HUB75
Frame Frequency
≥60Hz
Refresh frequency
1920HZ/3840HZ
Transmission Distance
Multi mode fiber <500m, single mode fiber <30km,internet cable
Operation Parameter
Working Voltage
AC220±10% 50Hz/AC110±10% 60Hz
storage Temperature
35℃～+85℃
Working Temperature
-20℃～+55℃
Humidity
10%-95%
Life Span Time
≥100000 hours
MTBF
≥5,000hours
Screen Plainness
＜±1mm
Blind Spot Rate
＜0.0001
　
Certificate
CE, RoHS, FCC

1)Reply your inquiry in 24 working hours.

2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc

3)Customized design is available,OEM & ODM are welcomed.

4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.

5)Special discount and protection of sales area provided to our distributor.

6)Warmly welcome your visit in our company if available.

7 ) Guidance service: We can guide on line if customers have questions about the installation and usage.
For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go to customer's country for on-site guidance.

8) Warranty period: 5 years after shipment.
