Aluminum Digital Manifold Gauge Set , IP66 Air Conditioning Tools
Aluminum Digital Manifold Gauge Set , IP66 Air Conditioning Tools
Aluminum Digital Manifold Gauge Set , IP66 Air Conditioning Tools
Aluminum Digital Manifold Gauge Set , IP66 Air Conditioning Tools
Aluminum Digital Manifold Gauge Set , IP66 Air Conditioning Tools
Aluminum Digital Manifold Gauge Set , IP66 Air Conditioning Tools
Aluminum Digital Manifold Gauge Set , IP66 Air Conditioning Tools
Aluminum Digital Manifold Gauge Set , IP66 Air Conditioning Tools
Specifications
Brand Name :
HengXiang
Model Number :
SBF-L-05
Certification :
ISO
Place of Origin :
China
MOQ :
100 Sets
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
40000 Sets per Month
Delivery Time :
30 Working days
Packaging Details :
Export stanard box and carton
Material :
Brass
Color :
Red, Blue
Type :
Floating Ball Valve
Working Humidity :
10~900%RH
Working temperature :
-10~50℃
Application Refrigerants :
R12, R22, R32, R123, R134A, R290, R404A, R407C, R410A, R502, R507, R600A .
Customized Support :
OEM, ODM
Protection grade :
IP66
Warranty :
1 Year
Delivery Support :
By Land, by Sea or by Air
Loading Port :
Ningbo or Shanghai
Description

Digital Aluminum Manifold Gauge Set With Recycling Aluminum Valve, Refrigerant Manifold Gauge Set Air Conditioning Tools

Digital Manifold Gauge

Order No.

Model No.

PCS/CTN

H20023

SBF-L-05

5 Pcs/ Ctn

Product Introduction

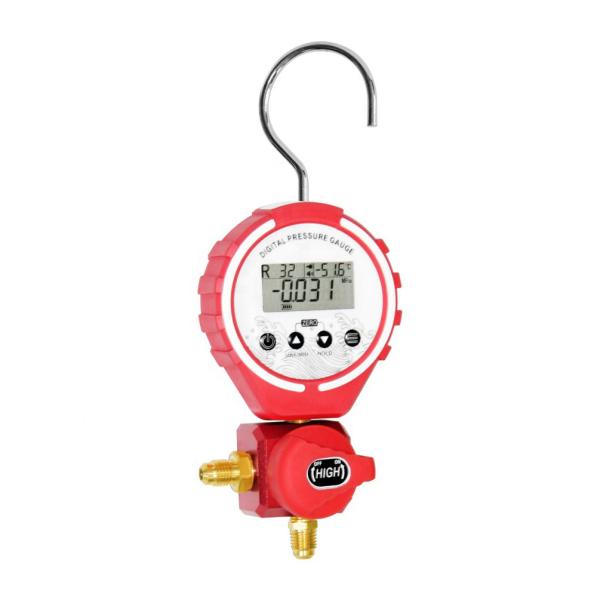

Digital Refrigeration Pressure Gauge adopts the latest Microprocessor Controller, 24-Bit Analog-to-Digital Converter and high precision pressure sensor. It can both accurately measure the pressure of the gas & liquid, and also the vacuum pressure.
It has long life, high stability and precision measurement, because of having no moving parts. It contains the common parameter of the pressure& temperature. The pressure, condensing temperature and evaporation temperature is easy to read by the large screen. It is widely used in the hydraulic and barometric measurement, like refrigeration equipment, air-conditioner refrigerant tools, refrigerant pressure measurement, vacuum equipment, pneumatic equipment, etc.

Product Info

Item Digital Aluminum Manifold Gauge
Model SBF-L-05*GS
Order No. 20023
Packing 1 set/box, 5 boxes/carton
Measuring Speed 1 times/ second
Allowed overload pressure 100% range
Sensor failure pressures 300% range
Pressure connection NPT1/8
Working humidity 10~90%RH
Working temperature -10~50ºC
Temperature of ensuring the accuracy 20±5ºC
Battery 6F22 or 6LR61 laminated 9V battery
Protection level IP66
Productive standard JB/T 7392-2006

Features

1, Gas and liquid can be measured.
2, Vacuum degree can be measured.
3, Common parameter of the refrigerant pressure& temperature is contained.
4, LCD display with back light.
5, Long battery life; No electricity after power off.
6, More durable because of the rubber protective covering.

Aluminum Digital Manifold Gauge Set , IP66 Air Conditioning Tools

Aluminum Digital Manifold Gauge Set , IP66 Air Conditioning Tools

Processing Steps

Aluminum Digital Manifold Gauge Set , IP66 Air Conditioning Tools

Aluminum Digital Manifold Gauge Set , IP66 Air Conditioning Tools
