RC2-470B-Z Hanbell Screw Type Compressor R407C Refrigerant
RC2-470B-Z Hanbell Screw Type Compressor R407C Refrigerant
RC2-470B-Z Hanbell Screw Type Compressor R407C Refrigerant
RC2-470B-Z Hanbell Screw Type Compressor R407C Refrigerant
RC2-470B-Z Hanbell Screw Type Compressor R407C Refrigerant
RC2-470B-Z Hanbell Screw Type Compressor R407C Refrigerant
RC2-470B-Z Hanbell Screw Type Compressor R407C Refrigerant
RC2-470B-Z Hanbell Screw Type Compressor R407C Refrigerant
Specifications
DISPLACEMENT :
567m³/h
WEIGHT :
810KG
MAX PRESSURE :
2.8MPa
REFRIGERANT :
R407C
Model Number :
RC2-470B-Z
MAX CURRENT :
310A
LUBRICANT :
HBR-B08
Brand Name :
HANBELL
Certification :
CE
Place of Origin :
China
MOQ :
1 PIECE
Price :
DISCUSSED
Payment Terms :
T/T,Western Union
Supply Ability :
50000 PER YEAR
Delivery Time :
5-8 WORK DAYS
Packaging Details :
WOODEN CASE
LRA :
1220A
VOLTS :
440V-60HZ/22V-50/60HZ
RATED SPEED :
3550RPM
SERIAL NO :
C91M4736802
Description
RC2-470B-Z Hanbell Screw Type Compressor R407C Refrigerant
Product Parameters
Type Screw Compressor
Model RC2-470B-Z
Displacement 567 m³/h
Speed 3550 RPM
Weight 810 KG
Nominal HP 141 HP
Packing Plywood Case
MOQ 1 Pcs

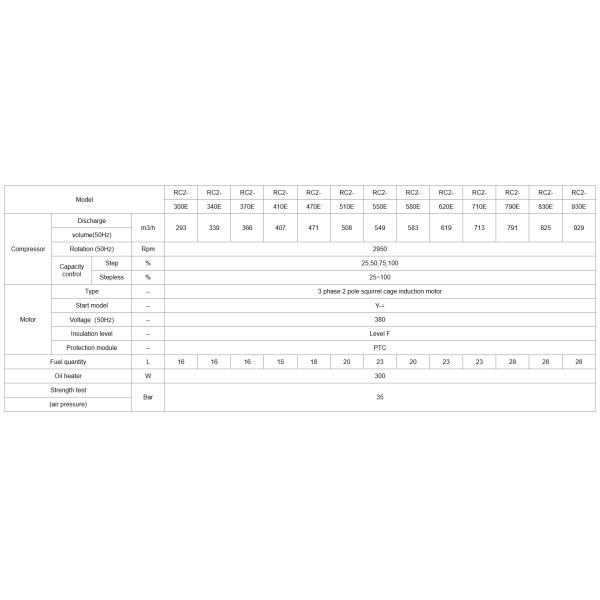

Model Specifications
RC2-470B-Z Hanbell Screw Type Compressor R407C Refrigerant
Product Features
  • The displacement of RC2-E series compressor ranges from 300m³/h to 930m³/h with 13 types available to meet different displacement requirements
  • RC2 series compressors feature motors that ensure high operating efficiency under any load within the operating range
  • Motor housing is specially designed to adapt to R134a refrigerant operation under water cooling conditions
  • Latest motor design optimized for R134a refrigerant with low loss silicon steel core and motor cooling channel design for low condensation conditions
  • Bearings re-optimized according to R134a refrigerant characteristics and water cooling conditions
  • Standard INT69 HBY Diagnose protection module with reverse phase protection, phase loss protection, and fault indicator
  • Lubricating oil: HBR-B08 (special oil requirements available upon request)
RC2-470B-Z Hanbell Screw Type Compressor R407C Refrigerant
Company Information

Shenzhen Ruifujie Technology Co., Ltd. specializes in producing and exporting compressors, condensing units, ice block machines, spare parts, air-coolers, cold rooms, and related products for over 20 years.

We supply leading brands including Danfoss, Carrier, Tecumseh, Hanbell, Hitachi, Daikin, GMCC, LG, and others.

The company has achieved breakthrough development in after-sales service, design, installation, maintenance, and technical consulting, establishing long-term close cooperation with many countries worldwide.

Based on the tenet of "Devotion, Integrity, Innovation, Dedication," we continue to provide the highest quality products for new and existing customers.

Frequently Asked Questions
What is your delivery time?
The time of delivery is 3-10 working days after payment.
What are your main brands?
Danfoss, Bock, Bristol, Carel, Carrier, Daikin, Embraco, Frascold, Fusheng, GMCC, LG, Hanbell, Mitsubishi, Refcomp, Secop, Sporlan, Saginomiya.
What is the price?
Please contact us for the best price.
