Specifications
Rated Voltage :
380/220V
MOQ :
1
Nominal Refrigeration Capacity :
8.2KW (8200W)
Application :
Cold Room,Freezer
Price :
Discussed
Payment Terms :
T/T,Western Union
Delivery Time :
1 Month
Packaging Details :
WOODEN CASE
Model Number :
DL-8.2/40
Warranty :
1year
Place of Origin :
China
Supply Ability :
100PC
Model :
DL-8.2/40
MOQ :
1Sets
Packing :
Woodcase packing
Matched Area :
40㎡
Brand Name :
Ruifujie
Description
Space-saving DL40 Air Cooler for Medium-sized Food Cold Room
Space-saving DL40 Air Cooler for Medium-sized Food Cold Room

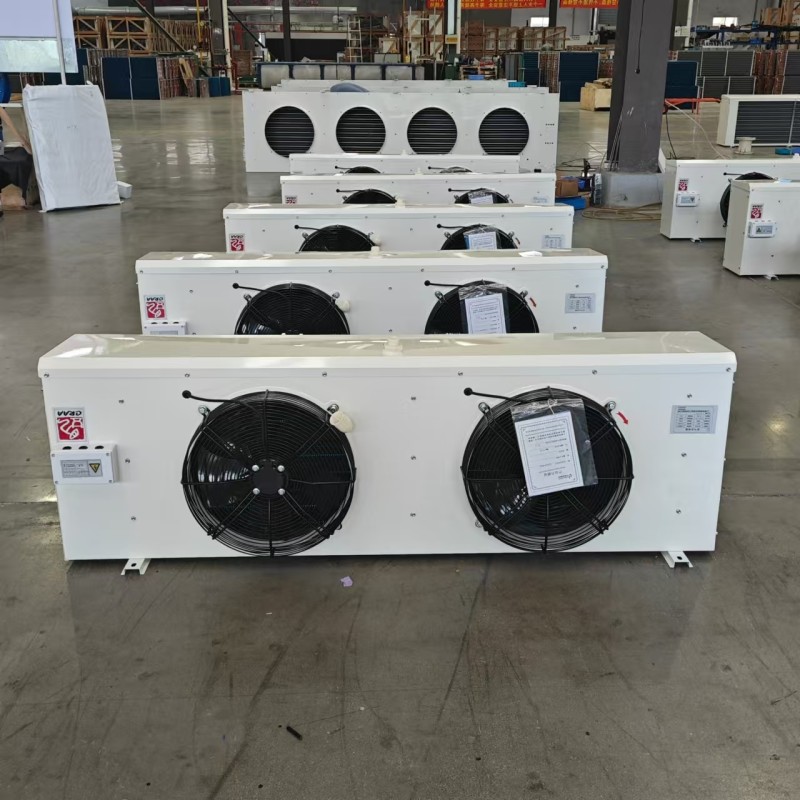

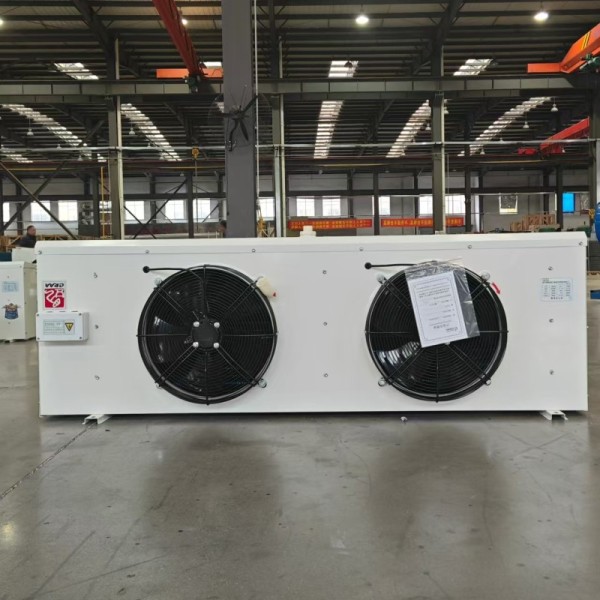

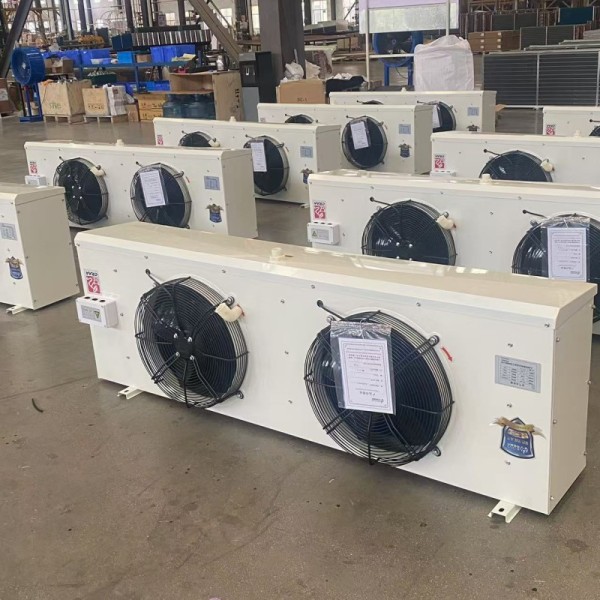

Product Images
Space-saving DL40 Air Cooler for Medium-sized Food Cold Room Space-saving DL40 Air Cooler for Medium-sized Food Cold Room Space-saving DL40 Air Cooler for Medium-sized Food Cold Room
Product Advantages
  • Stable Medium Cooling Capacity: 8.2kW nominal cooling capacity, perfectly matched for 40㎡ medium cold rooms, maintaining constant low temperature for fresh food preservation.
  • Uniform Indoor Air Circulation: 6800m³/H steady airflow with 10m air throw distance, effectively avoid local overheating inside medium-size cold storage.
  • Dual-Voltage Dual-Fan Design: Two 400mm-diameter fans support 380/220V dual voltage input, flexible for different regional power supply environments.
  • Balanced Electric Defrost Configuration: 2400W fin defrost plus 1200W drain pan defrost, rapidly remove accumulated frost under high-humidity refrigeration working conditions.
  • Optimized Heat Exchange Pipeline: 5.8L inner tube volume with φ16/φ22mm inlet-outlet pipes, smooth refrigerant circulation to upgrade overall heat exchange efficiency.
Technical Specifications
Parameter Specification
Model DL-8.2/40 (DL40)
Nominal Refrigeration Capacity 8.2kW (8200 W)
Applicable Cold Room Area 40㎡
Tube Volume 5.8L
Refrigerant Inlet/Outlet Diameter φ16/φ22mm
Fan Quantity 2 units
Fan Diameter 400mm
Working Voltage 380/220V
Total Fan Power 360W (2×180W)
Air Volume 6800m³/H
Air Throw Range 10m
Fin Defrost Power 2400W
Drain Pan Defrost Power 1200W
Company Profile

With a history exceeding 20 years, Shenzhen Ruifujie is a large-scale professional refrigeration enterprise. We produce high-quality scroll, piston, rotor, semi-hermetic and screw refrigeration compressors, which are exported to major global markets. We have strong technical capabilities in refrigeration field, provide customized OEM/ODM refrigeration services, and have established long-term stable partnerships with manufacturers and wholesalers worldwide, gaining wide customer support.

Space-saving DL40 Air Cooler for Medium-sized Food Cold Room Space-saving DL40 Air Cooler for Medium-sized Food Cold Room Space-saving DL40 Air Cooler for Medium-sized Food Cold Room Space-saving DL40 Air Cooler for Medium-sized Food Cold Room Space-saving DL40 Air Cooler for Medium-sized Food Cold Room Space-saving DL40 Air Cooler for Medium-sized Food Cold Room
Packaging and Shipping
Supply Ability 1000000 pieces/year, MOQ is usually one piece
Shipping Time Sample order in stock within 3 days, Bulk order generally 10-15 working days after receiving deposit
Shipping Method Support by sea, by air, by express (DHL, FedEx, UPS...)
Payment Terms TT/Western Union
30% Advance Payment, 70% Final Payment
Shipping Port Ningbo Port, Shanghai Port, Shenzhen Port
Space-saving DL40 Air Cooler for Medium-sized Food Cold Room
Frequently Asked Questions
Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.
Q: What are the main products?
A: Semi-hermetic compressor, Hermetic Compressor, Condenser Unit, Air Cooler, Spare Parts, Chillers and Evaporators
Q: What is your delivery time?
A: The time of delivery is 3-10 working days after payment.
Q: How about the packaging?
A: Ship by sea with refrigerat oil in wooden case. Ship by air without refrigerat oil in wooden case.
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
