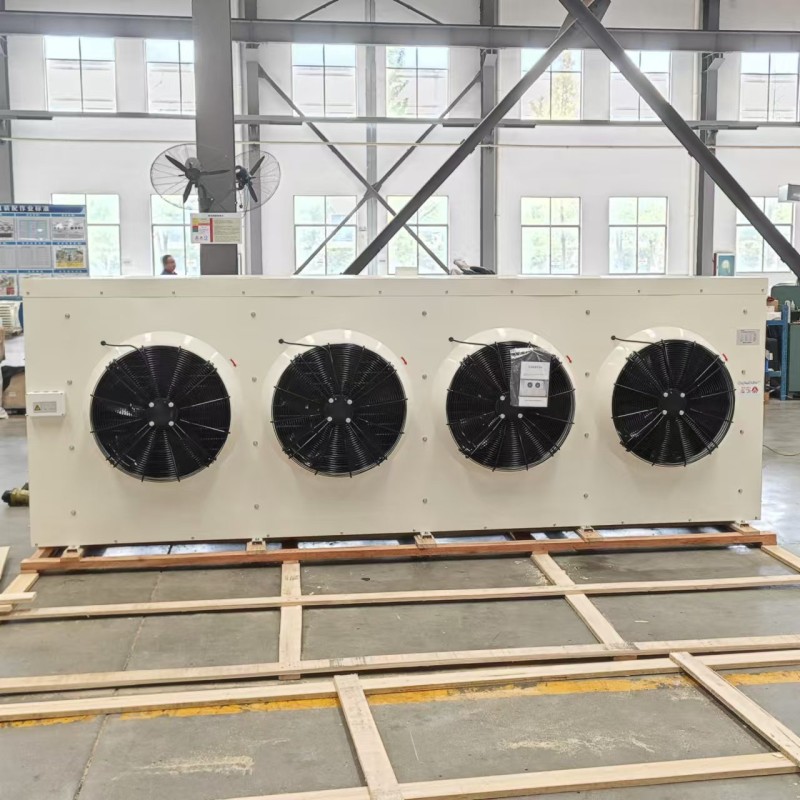

High-Capacity DL210 Evaporator for 210㎡ Large Commercial Cold Storage
High-Capacity DL210 Evaporator for 210㎡ Large Commercial Cold Storage
High-Capacity DL210 Evaporator for 210㎡ Large Commercial Cold Storage
High-Capacity DL210 Evaporator for 210㎡ Large Commercial Cold Storage
High-Capacity DL210 Evaporator for 210㎡ Large Commercial Cold Storage
High-Capacity DL210 Evaporator for 210㎡ Large Commercial Cold Storage
Specifications
Payment Terms :
T/T,Western Union
Delivery Time :
1 Month
Model :
DL-42.9/210
Warranty :
1 year
Application :
Cold Room,Freezer
Price :
Discussed
Model Number :
DL-42.9/210
Nominal Refrigeration Capacity :
42.9 kW (42900 W)
MOQ :
1 Sets
Place of Origin :
China
Matched Area :
210㎡
Rated Voltage :
380V
Packing :
Woodcase packing
Brand Name :
Ruifujie
Supply Ability :
100PC
MOQ :
1
Packaging Details :
WOODEN CASE
Description
High-Capacity DL210 Evaporator for 210㎡ Large Commercial Cold Storage
Product Overview
The DL210 Evaporator delivers robust continuous cooling with 42.9kW nominal capacity, specifically engineered for 210㎡ large commercial cold storage facilities.
High-Capacity DL210 Evaporator for 210㎡ Large Commercial Cold Storage High-Capacity DL210 Evaporator for 210㎡ Large Commercial Cold Storage High-Capacity DL210 Evaporator for 210㎡ Large Commercial Cold Storage
Key Advantages
  • Robust Continuous Cooling: 42.9kW nominal cooling capacity, perfectly matched for 210㎡ large cold rooms, maintaining precise, consistent low temperatures for heavy-duty commercial cold storage.
  • Uniform Wide-Area Airflow: 24000 m³/H high-volume airflow with 15m throw range, eliminating temperature stratification and cooling dead zones in expansive storage spaces.
  • Industrial Quad-Fan Operation: 4×414W 380V fans with 500mm diameter, built for reliable, non-stop airflow delivery in demanding industrial refrigeration applications.
  • Powerful All-Round Defrost: 7200W fin defrost + 2400W drain pan defrost, efficiently clears heavy frost buildup in high-humidity environments to avoid operational downtime.
  • Enhanced Refrigerant Flow Path: 25.8L large tube volume with φ25/φ48mm inlet/outlet tubes, optimizing refrigerant circulation to boost overall heat exchange efficiency.
Technical Specifications
ModelDL-42.9/210 (DL210)
Nominal Refrigeration Capacity42.9 kW (42,900 W)
Applicable Cold Room Area210 ㎡
Tube Volume25.8 L
Refrigerant Inlet/Outlet Diameterφ25 / φ48 mm
Fan Configuration4 units
Fan Diameter500 mm
Fan Voltage380 V
Total Fan Power1,656 W (4 × 414 W)
Air Volume24,000 m³/H
Air Throw Range15 m
Fin Defrost Power7,200 W
Drain Pan Defrost Power2,400 W
Manufacturer Profile
With over 20 years of experience, Shenzhen Ruifujie Technology Co., Ltd. is a large modern enterprise focusing on R&D, production and sales of refrigeration products. We specialize in developing and manufacturing scroll, piston, rotor, semi-hermetic and screw refrigeration compressors, which are exported worldwide. Endowed with strong technical strength and rich experience in cold storage, freezing, quick-freezing equipment and ice machines, we provide professional OEM/ODM refrigeration services and have stable global cooperative partnerships, winning high praise for high-quality refrigeration compressors and competitive prices.
High-Capacity DL210 Evaporator for 210㎡ Large Commercial Cold Storage High-Capacity DL210 Evaporator for 210㎡ Large Commercial Cold Storage High-Capacity DL210 Evaporator for 210㎡ Large Commercial Cold Storage High-Capacity DL210 Evaporator for 210㎡ Large Commercial Cold Storage High-Capacity DL210 Evaporator for 210㎡ Large Commercial Cold Storage High-Capacity DL210 Evaporator for 210㎡ Large Commercial Cold Storage
Packaging & Shipping
Supply Ability1000000 pieces/year, MOQ is usually one piece
Shipping TimeSample order in stock within 3 days, Bulk order generally 10-15 working days after receiving deposit
Shipping MethodSupport by sea, by air, by express (DHL, FedEx, UPS...)
Payment TermsTT/Western Union - 30% Advance Payment, 70% Final Payment
Shipping PortNingbo Port, Shanghai Port, Shenzhen Port
High-Capacity DL210 Evaporator for 210㎡ Large Commercial Cold Storage
Frequently Asked Questions
Q: What is your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer's exact situation.
Q: What are the main products?
A: Semi-hermetic compressor, Hermetic Compressor, Condenser Unit, Air Cooler, Spare Parts, Chillers and Evaporators.
Q: What is your delivery time?
A: 1. For Sample order in stock, we aim to ship the compressor within 3 days.
2. For any Bulk order, generally we ship compressor in 10-15 working days after receiving deposit.
Q: What about the services and aftersale?
A: We guarantee product quality with a 1-year warranty. Our team ensures reliable support throughout and after your purchase.
Q: What are your price terms?
A: We offer EXW or FOB Shenzhen pricing.
