Carlyle 06TTA356 R22 Air Cooled Refrigeration Screw Compressor
Carlyle 06TTA356 R22 Air Cooled Refrigeration Screw Compressor
Carlyle 06TTA356 R22 Air Cooled Refrigeration Screw Compressor
Carlyle 06TTA356 R22 Air Cooled Refrigeration Screw Compressor
Carlyle 06TTA356 R22 Air Cooled Refrigeration Screw Compressor
Carlyle 06TTA356 R22 Air Cooled Refrigeration Screw Compressor
Carlyle 06TTA356 R22 Air Cooled Refrigeration Screw Compressor
Carlyle 06TTA356 R22 Air Cooled Refrigeration Screw Compressor
Specifications
Model Number :
06TTA356
Cooling Type :
Air Cooled
MOQ :
1
Delivery Time :
1 Month
Warranty :
1 Year
Payment Terms :
T/T,Western Union
Rated Horse Power :
150 HP
Price :
Discussed
Refrigerant :
R134a
Supply Ability :
100000Pcs/Year
Application :
Air Conditioner,Cold Room,Freezer,HVAC System
Certification :
CE
Packing :
Woodcase packing
Place of Origin :
China
Displacement(60/50Hz) :
356/296 cfm, 596/494 m3/hr
Brand Name :
Carrier/Carlyle
MOQ :
1 Sets
Packaging Details :
WOODEN CASE
Description
Carlyle 06TTA356 R22 Air Cooled Refrigeration Screw Compressor
Product Advantages
Integrated Check Valve & Safety Valve Protection
Built with an internal discharge check valve, this refrigeration screw compressor effectively eliminates reverse rotor rotation during system shutdown, preventing potential wear on delicate screw profiles. Additionally, a built-in safety relief valve protects against unexpected over-pressure conditions, ensuring continuous equipment safety under heavy commercial loads.
Economizer Integration & System Efficiency
Supporting subcooler economizer operation, this refrigeration screw compressor significantly boosts overall system cooling capacity and coefficient of performance (COP). Dual capacity modulation via slide valve and variable frequency compatibility maximizes energy savings during part-load cooling cycles.
High-Efficiency Robust Motor Design
Engineered with high-efficiency stator windings and embedded NTC thermal sensors, the refrigeration screw compressor motor supports both Star-Delta (Y-Δ) and Direct-On-Line starting across standard global voltages. A suction inlet strainer traps circulating system contaminants to safeguard motor longevity.
Applications
  • Large Commercial Air-Cooled Chillers - Optimized for high-capacity air-cooled liquid chillers used in commercial complexes, office towers, and hotel central AC systems.
  • Process Water Cooling Lines - Suitable for industrial manufacturing plants requiring continuous, precision-controlled R134a chilled water delivery.
  • Rooftop Packaged Air Conditioners - Designed for large-scale rooftop packaged units requiring reliable stepless capacity regulation under varying outdoor temperatures.
  • Commercial Heat Pump Systems - Ideal for large commercial heat pumps and energy-recovery HVAC installations demanding high seasonal COP.

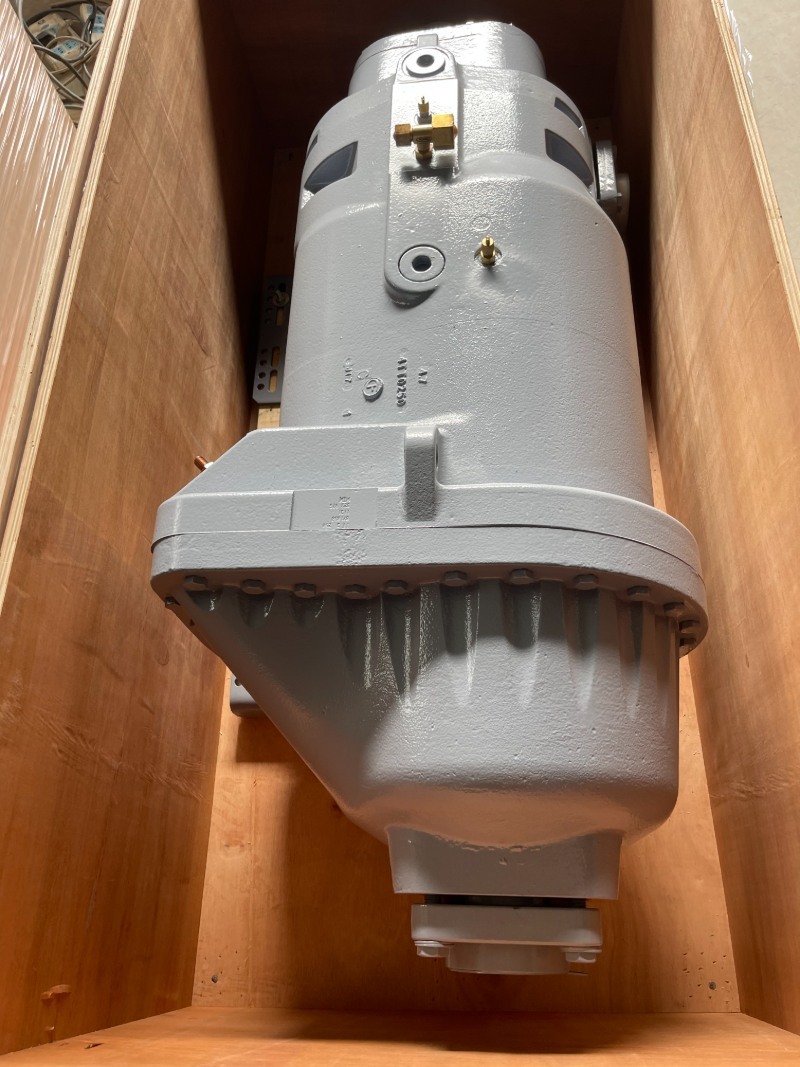

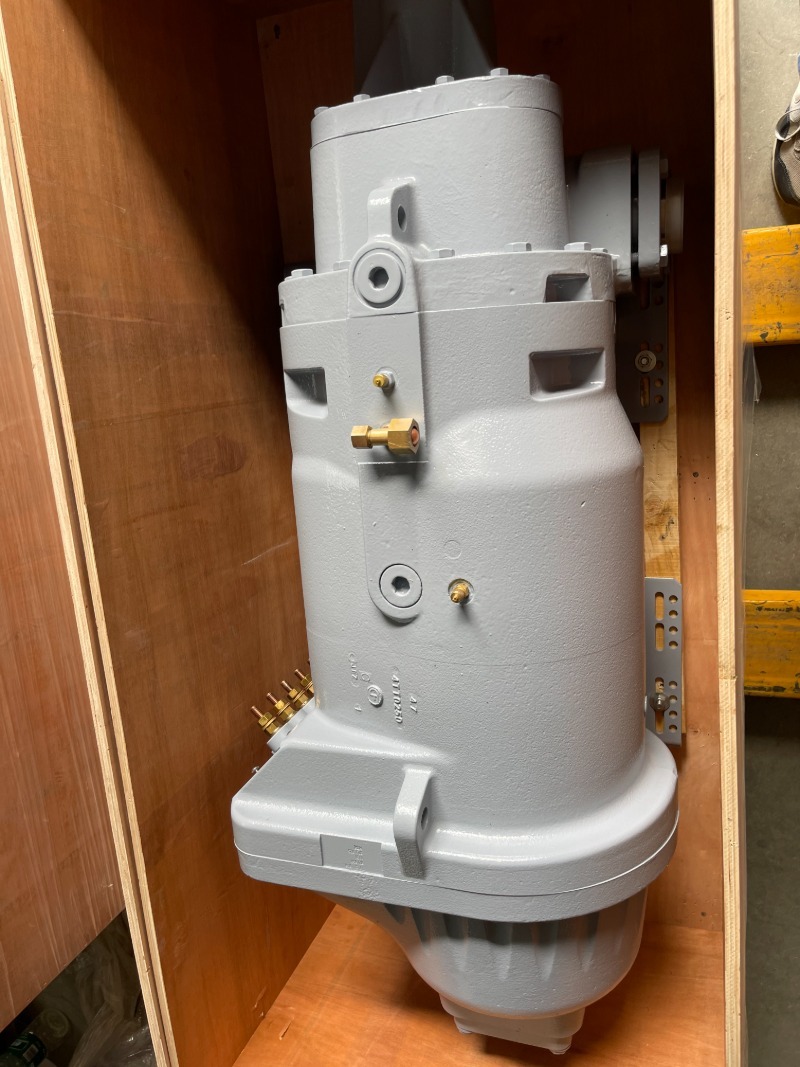

Product Images
Carlyle 06TTA356 R22 Air Cooled Refrigeration Screw Compressor
Technical Specifications
Parameter Value
Model 06TTA356
Displacement (60/50hz) 356/296 cfm
596/494 m³/hr
Capacity Control Stepless Adjustment 25-100%
Horse Power (HP) 150HP
Rated Voltage (V-Hz, A) 06TTA356SS1D: 460V-3-60Hz-226A, 400V-3-50Hz-218A
06TTA356XS1D: 230V-3-60Hz-452A, 200V-3-50Hz-414A
Weight 662KG
Carlyle 06TTA356 R22 Air Cooled Refrigeration Screw Compressor
Company Profile
As a modern enterprise backed by over 20 years of specialized manufacturing experience, Ruifujie supplies high-performance refrigeration solutions to engineering contractors and B2B buyers across the United States, Russia, the United Kingdom, the United Arab Emirates, Saudi Arabia, and over 60 global regions. Our extensive product portfolio encompasses scroll, reciprocating, rotary, semi-hermetic, and screw compressors, alongside cold storage systems, quick-freezing equipment, and ice-making machinery. With comprehensive OEM/ODM customization capabilities and rigorous quality control, Ruifujie has earned long-term trust worldwide for exceptional reliability and competitive pricing.
Carlyle 06TTA356 R22 Air Cooled Refrigeration Screw Compressor
Packaging and Shipping
Carlyle 06TTA356 R22 Air Cooled Refrigeration Screw Compressor
Frequently Asked Questions
Q1: What refrigerant and operating conditions are specified for model 06TTA356?
A: Model 06TTA356 is specifically designed for R134a air-cooled systems operating with an economizer loop, providing high-displacement cooling for commercial HVAC and process cooling systems.
Q2: How do the integrated check valve and safety valve protect the compressor?
A: The discharge check valve prevents high-pressure refrigerant backflow from spinning rotors backward during shutdown, while the internal safety valve venting system guards against extreme internal pressure spikes.
Q3: What electrical voltages and starting options does model 06TTA356 support?
A: It supports 460V/60Hz, 400V/50Hz, 230V/60Hz, and 200V/50Hz 3-phase power, with Y-Δ or direct-on-line starting options and embedded motor temperature protection.
Q4: What is your typical shipment lead time for sample and bulk orders?
A: In-stock sample units ship within 3 business days. Commercial production orders complete manufacturing and testing within 10 to 15 working days.
Q5: What warranty and payment terms are supported?
A: We provide a 1-year factory warranty across all product lines. Orders are processed under FOB Shenzhen or EXW terms, with USD settlement via T/T or Western Union.
Get Your Custom Engineering Quote Today
Accelerate your system design with engineered compressor solutions from Ruifujie. Our technical sales team provides tailored unit selections and direct factory pricing within 8 hours. Please submit your project details including Model, Quantity, Refrigerant, Voltage, Operating Conditions, and Project Requirements to receive an immediate response.
