06TSR223 90HP Industrial Semi-Hermetic Screw Refrigeration Compressor
06TSR223 90HP Industrial Semi-Hermetic Screw Refrigeration Compressor
06TSR223 90HP Industrial Semi-Hermetic Screw Refrigeration Compressor
06TSR223 90HP Industrial Semi-Hermetic Screw Refrigeration Compressor
06TSR223 90HP Industrial Semi-Hermetic Screw Refrigeration Compressor
06TSR223 90HP Industrial Semi-Hermetic Screw Refrigeration Compressor
06TSR223 90HP Industrial Semi-Hermetic Screw Refrigeration Compressor
06TSR223 90HP Industrial Semi-Hermetic Screw Refrigeration Compressor
Specifications
Model Number :
06TSR223
Application :
Air Conditioner,Cold Room,Freezer,HVAC System
Supply Ability :
100000Pcs/Year
Displacement(60/50Hz) :
483/403 cfm, 809/670 m3/hr
MOQ :
1
Delivery Time :
1 Month
Cooling Type :
Low Temperature
Payment Terms :
T/T,Western Union
MOQ :
1 Sets
Price :
Discussed
Rated Horse Power :
90 HP
Certification :
CE
Refrigerant :
R22/R404A/R507
Place of Origin :
China
Warranty :
1 Year
Brand Name :
Carrier/Carlyle
Packing :
Woodcase packing
Packaging Details :
WOODEN CASE
Description
06TSR223 90HP Industrial Semi-Hermetic Screw Refrigeration Compressor
Product Advantages
Stepless Load Matching & Capacity Control
Equipped with dual solenoid valve control, the system enables smooth stepless capacity regulation from 25% to 100% full load. Optimized built-in volume ratio (Vi) during partial load operations reduces parasitic energy loss, ensuring precise thermal demand matching while reducing operational energy costs.
Unmatched Operating Performance
Featuring patented rotor profile geometry and precision CNC manufacturing, this high-capacity screw refrigeration compressor delivers exceptionally high volumetric efficiency in severe low-temperature freezing environments. Designed to operate reliably with standard refrigerants including R22, R404A, and R507 with economizer support, it maintains stable discharge output across broad operating envelopes.
High-Efficiency Robust Motor Design
Built with premium stator windings and embedded NTC winding thermal sensors, the screw refrigeration compressor motor supports flexible direct-on-line (DOL) or Star-Delta (Y-Δ) starting options across global standard voltage configurations. An integrated suction port strainer shields internal motor components from system debris, ensuring long-term operational integrity.
Applications
  • Low-Temperature Cold Storage: Suitable for commercial deep-freeze warehouses and cold storage facilities requiring reliable low-temperature holding.
  • Quick-Freezing Tunnel Lines: Ideal for food processing plants operating blast freezers and quick-freezing tunnels with high thermal load fluctuations.
  • Industrial Process Cooling: Suitable for chemical, pharmaceutical, and industrial process refrigeration systems requiring exact capacity regulation and high operational stability.
  • Refrigerated Logistics Hubs: Designed for centralized cold-chain logistics centers operating multiple low-temperature evaporator circuits.

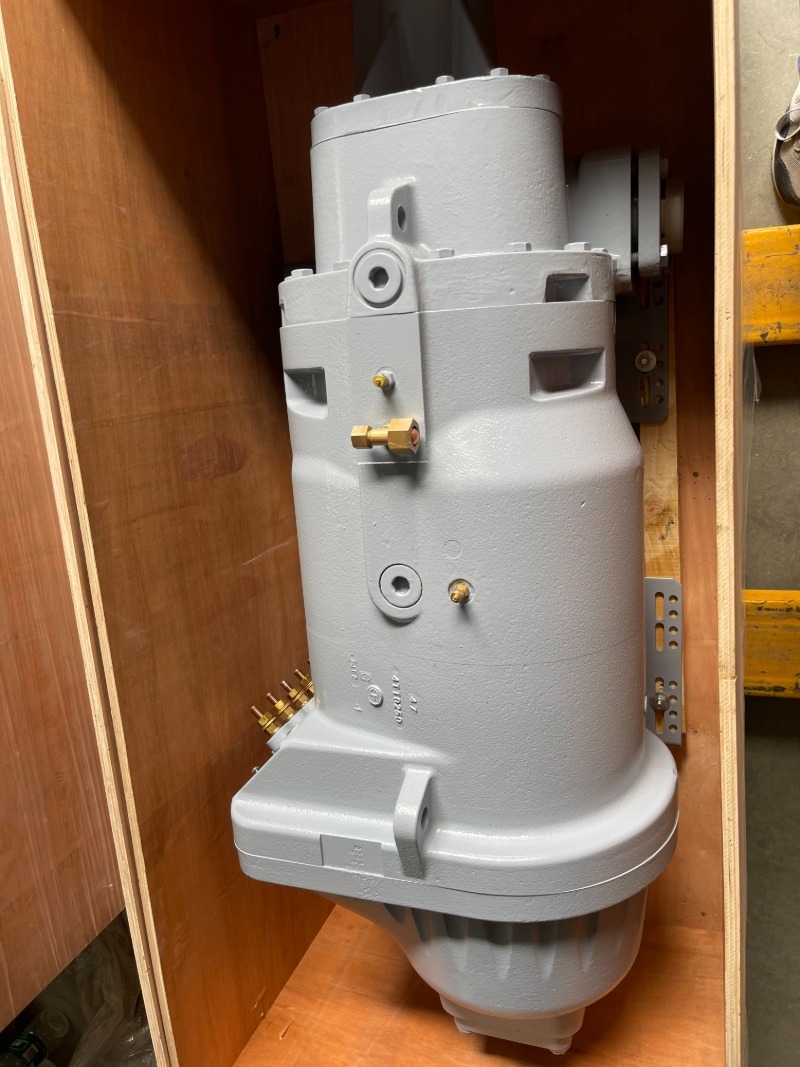

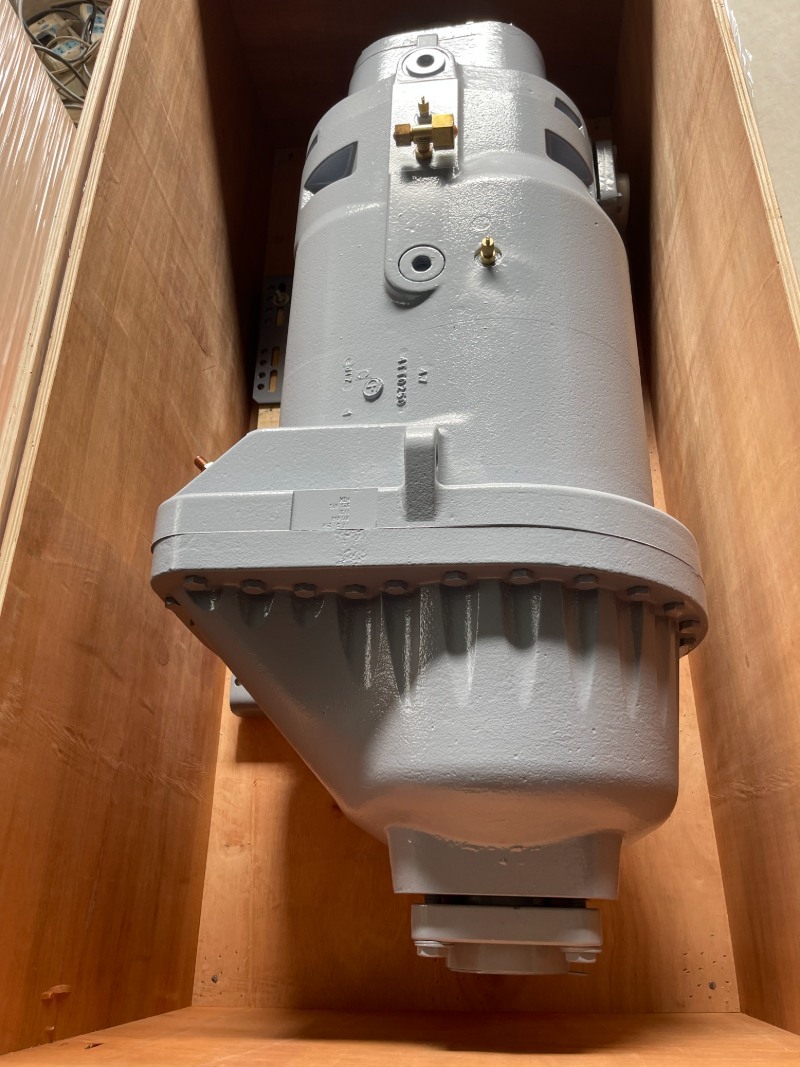

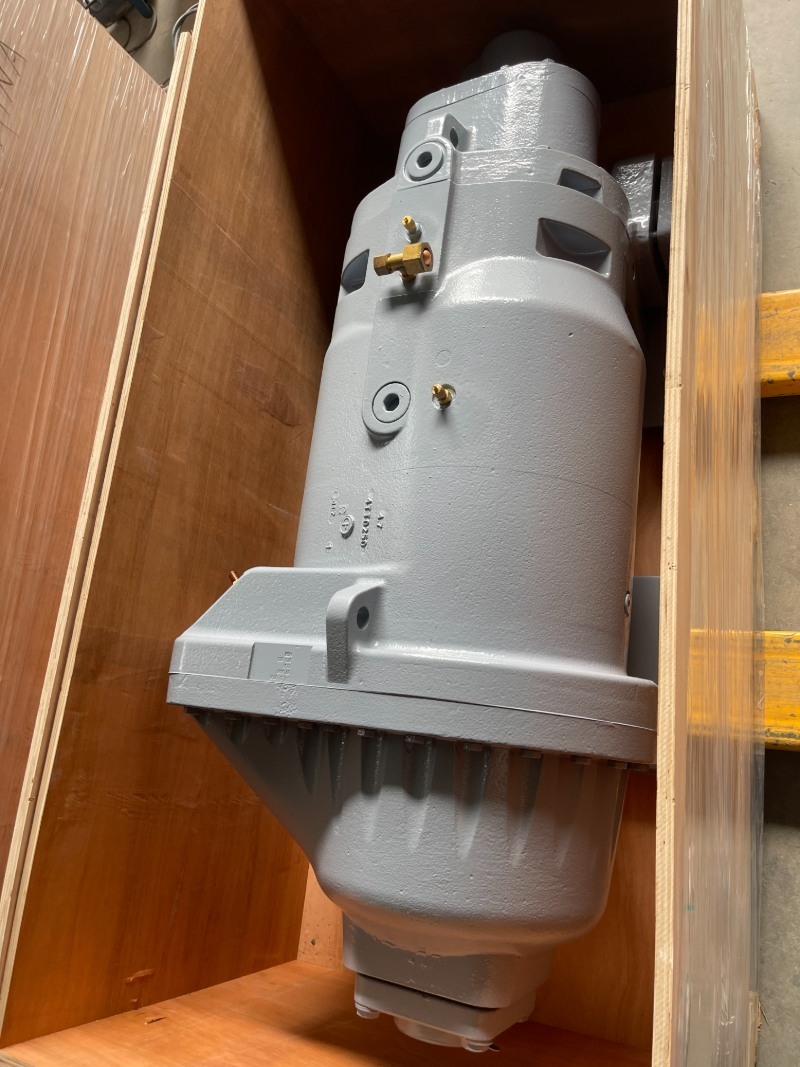

Product Images
06TSR223 90HP Industrial Semi-Hermetic Screw Refrigeration Compressor
Technical Specifications
Parameter Value
Model 06TSR223
Displacement (60/50hz) 483/403 cfm
809/670 m³/hr
Capacity Control Stepless Adjustment 25-100%
Horse Power (HP) 90HP
Rated Voltage (V-Hz, A)
06TSR223SM3D		 460V-3-60Hz-166A
400V-3-50Hz-160A
Weight 421KG
06TSR223 90HP Industrial Semi-Hermetic Screw Refrigeration Compressor
Company Profile
Ruifujie is a modern, large-scale enterprise with over 20 years of technical expertise in the commercial and industrial refrigeration industry. We specialize in providing high-reliability refrigeration solutions across global markets.
Core Product Scope: Scroll compressors, Reciprocating compressors, Rotary compressors, Semi-hermetic compressors, Screw compressors, Cold storage equipment, Quick-freezing systems, and Ice-making machinery. Supporting full OEM/ODM custom development, Ruifujie exports to the United States, Russia, United Kingdom, United Arab Emirates, Saudi Arabia, and over 60 countries worldwide, earning high acclaim for engineered performance and exceptional cost-efficiency.
06TSR223 90HP Industrial Semi-Hermetic Screw Refrigeration Compressor

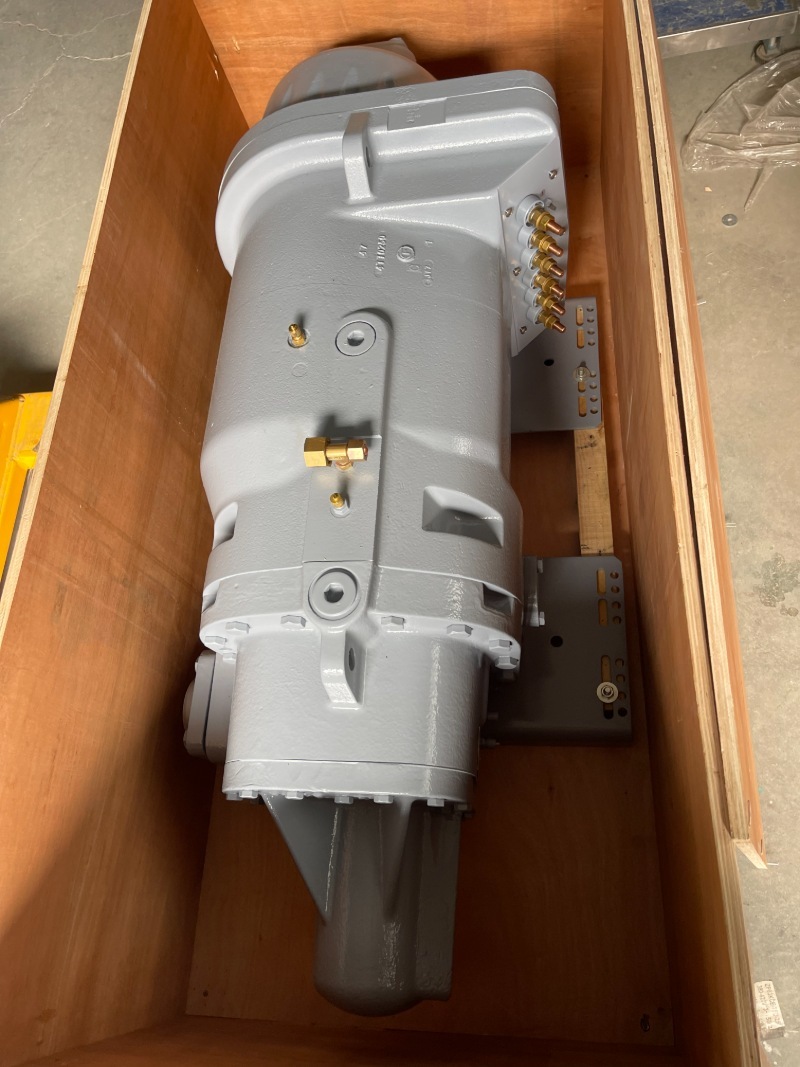

Packaging and Shipping
06TSR223 90HP Industrial Semi-Hermetic Screw Refrigeration Compressor
Frequently Asked Questions
Q1: Which refrigerants and operating conditions are supported by the 06TSR223 screw refrigeration compressor?
A: The 06TSR223 screw refrigeration compressor is engineered specifically for low-temperature freezing applications with economizer connection capability, fully supporting R22, R404A, and R507 refrigerants.
Q2: How does the stepless capacity control benefit system performance?
A: The stepless capacity adjustment between 25% and 100% allows the compressor to continuously match dynamic cooling loads, reducing electrical power spikes and stabilizing evaporator temperatures.
Q3: What electrical protection and motor options are standard on model 06TSR223SM3D?
A: The compressor supports 400V/50Hz and 460V/60Hz 3-phase power with dual Y-Δ or direct starting, featuring integrated motor thermal protection, suction inlet filtration, and phase protection.
Q4: What is your minimum order quantity (MOQ) and shipment lead time?
A: In-stock sample models have no MOQ requirement and ship within 3 days. Standard volume production orders carry negotiable MOQs and complete production within 10 to 15 working days.
Q5: What warranty coverage and standard trade terms do you offer?
A: All products carry a 1-year global manufacturer warranty. We support FOB Shenzhen and EXW terms with USD settlement via Wire Transfer (TT) or Western Union.
Request a Fast Quotation & Technical Selection
Partner with Ruifujie for reliable, high-efficiency refrigeration equipment. Contact our engineering team today to receive detailed CAD dimensional drawings, performance curves, and competitive direct pricing. Please include your required Model, Quantity, Refrigerant, Voltage, Operating Conditions, and Project Requirements in your inquiry for a fast response within 8 hours.
