Hanbell RC2-260B-W Refrigeration Semi Hermetic Screw Air Conditioning Compressor
Hanbell RC2-260B-W Refrigeration Semi Hermetic Screw Air Conditioning Compressor
Hanbell RC2-260B-W Refrigeration Semi Hermetic Screw Air Conditioning Compressor
Hanbell RC2-260B-W Refrigeration Semi Hermetic Screw Air Conditioning Compressor
Hanbell RC2-260B-W Refrigeration Semi Hermetic Screw Air Conditioning Compressor
Hanbell RC2-260B-W Refrigeration Semi Hermetic Screw Air Conditioning Compressor
Hanbell RC2-260B-W Refrigeration Semi Hermetic Screw Air Conditioning Compressor
Hanbell RC2-260B-W Refrigeration Semi Hermetic Screw Air Conditioning Compressor
Specifications
Certification :
CE
Displacement(60/50Hz) :
309/257 m3/hr
Model Number :
RC2-260B-W
Warranty :
1 Year
Price :
Discussed
Cooling Type :
Water Cooled
Supply Ability :
100000Pcs/Year
Application :
Air Conditioner,Cold Room,Freezer,HVAC System
MOQ :
1
Delivery Time :
1 Month
Rated HP(60/50Hz)) :
90/75 HP
Payment Terms :
T/T,Western Union
MOQ :
1 Sets
Place of Origin :
China
Refrigerant :
R22, R407C, R404A, R507, R134a
Brand Name :
Hanbell
Packing :
Woodcase packing
Packaging Details :
WOODEN CASE
Description
Hanbell RC2-260B-W Refrigeration Semi Hermetic Screw Air Conditioning Compressor
Product Advantages
Adaptable with Additional Cooling
Equipped with specialized auxiliary ports, this screw air conditioning compressor easily accommodates liquid injection at the motor casing or compression chamber, an external oil cooler, or a middle-pressure economizer circuit. This versatility allows system integration across wide commercial HVAC operating conditions while maintaining low discharge temperatures.
Perceptive Protection Modules
Featuring integrated PTC thermistors and advanced motor protection modules, this screw air conditioning compressor continuously monitors discharge temperatures, motor coil heat, phase loss, and phase sequence mismatch. Standard safety provisions also support optional oil level switches, differential pressure switches, and pressure relief valves.
Multinational Patents of High-Efficiency Screw Rotors
Driven by a patented 5:6 high-efficiency rotor profile protected across Taiwan, the UK, the US, and China, this screw air conditioning compressor is optimized for high volumetric performance. Precision CNC machining and ZEISS 3D coordinate inspection ensure smooth rotor meshing, exceptional durability, and low-noise operation.
Applications
  • Commercial Chilled Water Air Conditioning Systems
    Designed for large-capacity central water chillers serving commercial office buildings, hotels, and shopping malls.
  • Industrial Process Air Conditioning & Cooling
    Ideal for environmental control plants in pharmaceutical manufacturing, cleanrooms, and data centers.
  • Large Hydronic Heat Pump Systems
    Suitable for commercial heat pump central HVAC plants requiring flexible step or stepless load modulation.

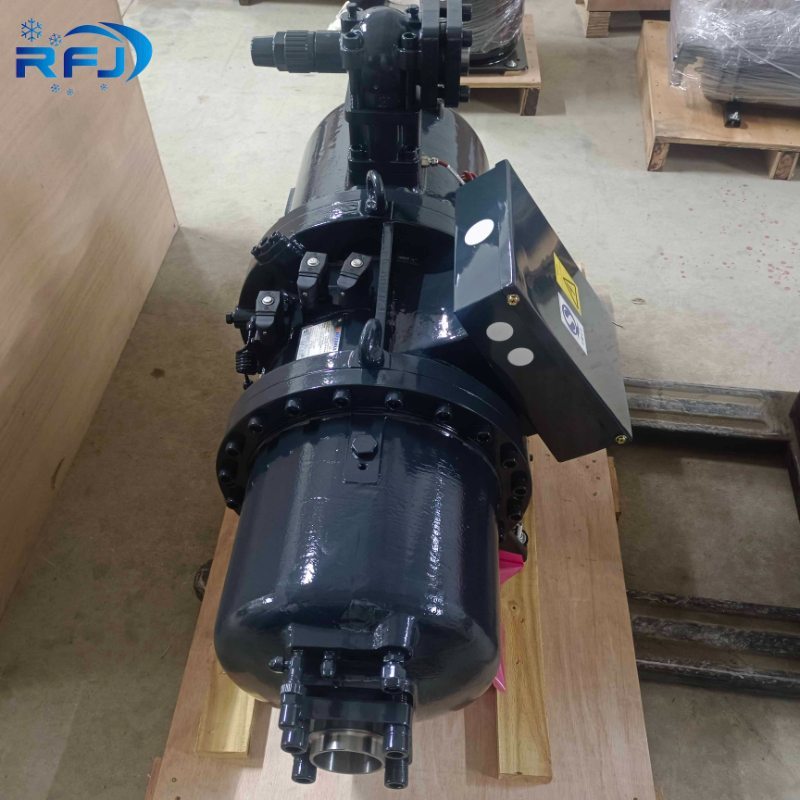

Product Images
Hanbell RC2-260B-W Refrigeration Semi Hermetic Screw Air Conditioning Compressor
Technical Specifications
Parameter Value
Model RC2-260B-W
Displacement (60/50Hz) 309/257 m³/hr
Capacity Control (step) 25-50-75-100%
Capacity Control (stepless) 25-100%
Horse Power (60/50Hz) 90/75 HP
Lubricant Charge 14 L
Weight 560 KG
Hanbell RC2-260B-W Refrigeration Semi Hermetic Screw Air Conditioning Compressor
Company Profile
Ruifujie is a professional manufacturer and global B2B exporter of commercial HVAC and refrigeration machinery with over 20 years of industry experience. Our comprehensive product portfolio covers scroll, reciprocating, rotary, semi-hermetic, and screw compressors, as well as industrial ice plants, blast freezing units, and cold storage systems. Backed by extensive OEM/ODM customization capabilities and strict quality testing, Ruifujie serves engineering contractors and original equipment manufacturers across the United States, Russia, the United Kingdom, the United Arab Emirates, Saudi Arabia, and over 60 countries worldwide.
Hanbell RC2-260B-W Refrigeration Semi Hermetic Screw Air Conditioning Compressor
Packaging and Shipping
Hanbell RC2-260B-W Refrigeration Semi Hermetic Screw Air Conditioning Compressor
Frequently Asked Questions
Q1: What is the rated displacement and power of the RC2-260B screw air conditioning compressor?
A: Model RC2-260B-W delivers a displacement of 309 m³/hr at 60Hz (90 HP) and 257 m³/hr at 50Hz (75 HP).
Q2: What auxiliary cooling options can be added to this model?
A: It supports liquid injection into the motor casing or compression chamber, an external oil cooler connection, and a middle-pressure subcooling economizer circuit.
Q3: What capacity regulation modes are provided?
A: The unit features both 4-step capacity regulation (25%-50%-75%-100%) and continuous stepless control (25%-100%).
Q4: What protective features come standard with the compressor?
A: Standard features include PTC thermistor monitoring for motor coil and discharge overheating, phase sequence mismatch protection, phase loss prevention, and an integrated oil heater.
Q5: What are your order lead times and warranty terms?
A: Sample units dispatch within 3 business days, while volume commercial orders finish in 10 to 15 working days. All compressors come with a 1-year factory warranty.
Request Factory Direct Quotations
Upgrade your commercial AC liquid chillers with precision-engineered compressors from Ruifujie. Contact our engineering support team today to receive CAD installation drawings, performance curves, and direct wholesale pricing within 8 hours. Please specify your Model, Quantity, Voltage, Operating Conditions, and Project Requirements in your inquiry for immediate processing.
