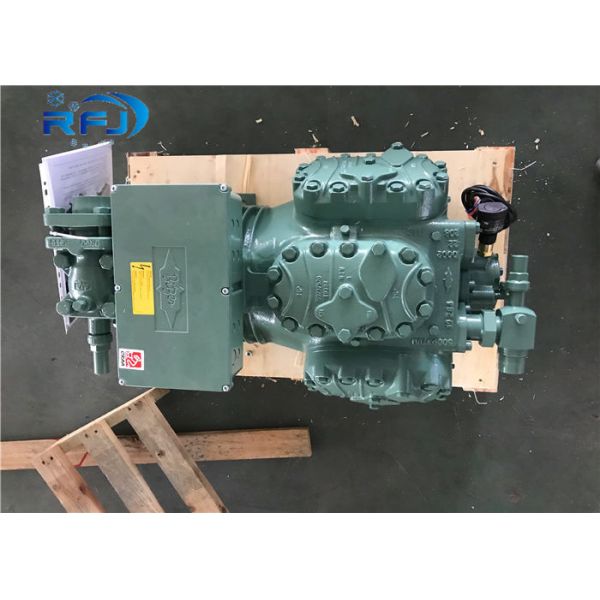

25Hp 32 Bar R407C Semi Hermetic Compressor 6HE-28Y-40P For 380V
25Hp 32 Bar R407C Semi Hermetic Compressor 6HE-28Y-40P For 380V
25Hp 32 Bar R407C Semi Hermetic Compressor 6HE-28Y-40P For 380V
25Hp 32 Bar R407C Semi Hermetic Compressor 6HE-28Y-40P For 380V
25Hp 32 Bar R407C Semi Hermetic Compressor 6HE-28Y-40P For 380V
25Hp 32 Bar R407C Semi Hermetic Compressor 6HE-28Y-40P For 380V
Specifications
Power Source :
AC POWER
Weight :
241 KG
Refrigerant :
R404 R407C R134A
Model Number :
6HE-28Y-40P
Type :
Refrigeration Compressor
Certification :
CE
Warranty :
1 Year
Payment Terms :
T/T,Western Union,
Application :
Refrigeration Parts
Power :
25HP
Place of Origin :
China
MOQ :
1 piece
Price :
US$712-1000/PC
Supply Ability :
10000Pieces/Year
Delivery Time :
5-7 Days
Packaging Details :
Standard Wooden Package
Description
25Hp 32 Bar R407C Semi Hermetic Compressor 6HE-28Y-40P For 380V
Product Overview

25HP 6HE-28Y-40P Semi hermetic Compressor for 380V

Product Introduction

The ECOLINE 6HE-28Y is the creative advancement of the proven, robust and powerful semi-hermetic reciprocating compressor 6H-25.2Y.

It combines high efficiency, smooth running, a wide range of applications, flexibility in refrigerant selection, solid design and high reliability.

The ECOLINE 6HE-28Y replaces its predecessor 6H-25.2Y with the same connection sizes.

Technical Specifications
Specification SI Units Imperial Units
Displacement (1450 RPM 50 HZ) 110.5 m³/h 3902.3 CFH
Displacement (1750 RPM 60 HZ) 133.4 m³/h 4711.0 CFH
No. of cylinder × bore × stroke 6 × 70mm × 55mm 6 × 2.76" × 2.17"
Weight 224 kg 494 lb
Max pressure (LP/HP) 19/32 bar 275/464 psi
Connection suction line 54mm-2 1/8" 54mm-2 1/8"
Connection discharge line 35mm-1 3/8" 35mm-1 3/8"
Motor version 2 2
Starting current (Rotor locked) 141.0 A Y/233.0 A YY 245.0 A
Motor voltage 380-420V PW-3-50 HZ 440-480V Y-3-60 HZ UL
Max operating current 53.2 A 53.2 A
Product Images
25Hp 32 Bar R407C Semi Hermetic Compressor 6HE-28Y-40P For 380V 25Hp 32 Bar R407C Semi Hermetic Compressor 6HE-28Y-40P For 380V 25Hp 32 Bar R407C Semi Hermetic Compressor 6HE-28Y-40P For 380V 25Hp 32 Bar R407C Semi Hermetic Compressor 6HE-28Y-40P For 380V
