SM084S4VC 7HP Scroll Refrigeration Equipment Compressor SM084-4VM 400V 3PH 50Hz
SM084S4VC 7HP Scroll Refrigeration Equipment Compressor SM084-4VM 400V 3PH 50Hz
Specifications
Horse power :
7HP
Voltage :
400/3/50 460/3/60
Model Number :
SM084S4VC(SM084-4VM)
Product name: :
Scroll compressor
Color :
Blue
Segment usage :
Air conditioning
Apllication :
refrigeration
Refrigerant :
R22
Product name :
SM084-4VM
warranty :
1 year
Brand Name :
Danfoss
Certification :
CE UL
Place of Origin :
China
MOQ :
1PCS
Price :
discussed
Supply Ability :
500PCS
Delivery Time :
1-5 Days
Packaging Details :
wooden packaging
Net weight :
64KG
Type :
refrigeration compressor
Payment Terms :
T/T,Western Union
Description
SM084S4VC 7HP Scroll Refrigeration Equipment Compressor SM084-4VM 400V 3PH 50Hz
Product Overview
Scroll Compressor
Fixed Speed
3 Phase
R22 Refrigerant
Gross Weight 69.5 kg
Net Weight 64 kg
EAN 5702424540630
Technical Specifications
Compressor Power Supply 400/3/50 460/3/60
Nominal Cooling Capacity (50Hz) 18.4 kW
Nominal Cooling Capacity (60Hz) 24.6 kW
Rated Load Amps (RLA) 12.1 A
Locked Rotor Amps (LRA) 86 A
Maximum Operating Current 17 A
Rotational Speed (50Hz) 2900 rpm
Rotational Speed (60Hz) 3500 rpm
Oil Charge 3.25 L
Refrigerant Charge (Max) 8.5 kg
IP Protection Class IP54 (with cable gland)
Approval Standards CE, UL
Physical Dimensions & Connections
Total Height 508 mm
Diameter 254 mm
Suction Connection Size 1 1/8 in
Discharge Connection Size 3/4 in
Connection Type Brazed
Power Connections Screw 4.8 mm
Operating Parameters
High Side Max Pressure 30.2 bar
Low Side Max Pressure 25 bar
High Side Temperature Range -35°C to 150°C
Low Side Temperature Range -35°C to 63°C
Maximum Starts per Hour 12

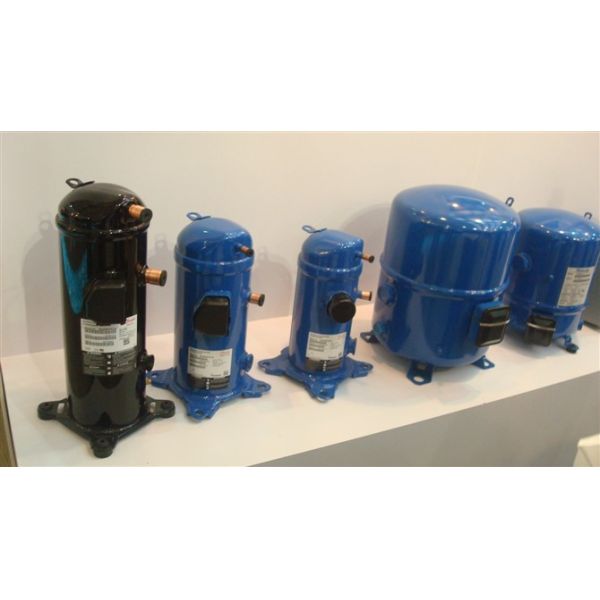

Product Images
SM084S4VC 7HP Scroll Refrigeration Equipment Compressor SM084-4VM 400V 3PH 50Hz SM084S4VC 7HP Scroll Refrigeration Equipment Compressor SM084-4VM 400V 3PH 50Hz SM084S4VC 7HP Scroll Refrigeration Equipment Compressor SM084-4VM 400V 3PH 50Hz
