10HP 50Hz R407C Copeland Scroll Compressor ZR125KCE-TFD-450
10HP 50Hz R407C Copeland Scroll Compressor ZR125KCE-TFD-450
Specifications
Model :
ZR125KCE-TFD
Packing: :
wooden case
Type: :
Scroll
Certification: :
CE,CCC,UL,ISO,RoHs
Power Source :
AC Power
Color: :
Black
Voltage: :
380V/50Hz /3p
Model Number :
ZR125KCE-TFD-450
Certification :
CE, UL
Place of Origin :
China
MOQ :
1
Price :
1-215usd/pc
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
3-7 days
Packaging Details :
wooden case
Refrigerant: :
R407c/R134a/R22
Description
10HP 50Hz R407C Copeland Scroll Compressor ZR125KCE-TFD-450
Product Specifications
  • Model Number ZR125KCE-TFD-450
  • Displacement 36.4 m³/h
  • Sound Power 79 dB
  • Net Weight 64.9 kg
  • Oil Charge 3.3 L
  • Power Supply 380-420V/3/50Hz
  • Winding Resistance 1.1 Ω
ZR Series Compressor Specifications
Model Specifications
ZR22K3E-TFD-522 Refrigerant: R407C
Electrical source: Ph3 50HZ 380-420V/60HZ 460V
Capacity: 17500/20800 Btu/hr
EER: 10.5/9.8 Btu/Wh

Refrigerant: R134A
Electrical source: Ph3 50HZ 380-420V/60HZ 460V
Capacity: 12300/14800 Btu/hr
EER: 10/10 Btu/Wh
ZR28K3E-TFD-522 Refrigerant: R407C
Electrical source: Ph3 50HZ 380-420V/60HZ 460V
Capacity: 22700/27300 Btu/hr
EER: 10.6/10.8 Btu/Wh

Refrigerant: R134A
Electrical source: Ph3 50HZ 380-420V/60HZ 460V
Capacity: 16200/19800 Btu/hr
EER: 10.3/10.3 Btu/Wh
ZR40K3E-TFD-522 Refrigerant: R407C
Electrical source: Ph3 50HZ 380-420V/60HZ 460V
Capacity: 31700/38300 Btu/hr
EER: 10.7/11 Btu/Wh

Refrigerant: R134A
Electrical source: Ph3 50HZ 380-420V/60HZ 460V
Capacity: 22100/26900 Btu/hr
EER: 10.6/10.4 Btu/Wh
ZR28K3-PFJ-522 Refrigerant: R22
Electrical source: Ph1 50HZ 220-240V/60HZ 265V
Capacity: 23600/28500 Btu/hr
EER: 10.8/10.9 Btu/Wh
ZR47KC-TFD-522 Refrigerant: R22
Electrical source: Ph3 50HZ 380-420V/60HZ 380-460V
Capacity: 39400/47500 Btu/hr
EER: 11.5/11.5 Btu/Wh
ZR57KC-TFD-522 Refrigerant: R22
Electrical source: Ph3 50HZ 380-420V/60HZ 460V
Capacity: 47500/57500 Btu/hr
EER: 11.4/11.5 Btu/Wh
ZR61KC-TFD-522 Refrigerant: R22
Electrical source: Ph3 50HZ 380-420V/60HZ 460V
Capacity: 49700/62000 Btu/hr
EER: 11.2/11.5 Btu/Wh
ZR160KCE-TFD-425 Refrigerant: R407C
Electrical source: Ph3 50Hz 380-420V/60HZ 460V
Capacity: 128000/154000 Btu/hr
EER: 11.2/11.2 Btu/Wh

Refrigerant: R134A
Electrical source: Ph3 50Hz 380-420V/60HZ 460V
Capacity: 87000/105000 Btu/hr
EER: 11.5/11.1 Btu/Wh
ZR144KCE-TFD-522 Refrigerant: R407C
Electrical source: Ph3 50HZ 380-420V/60HZ 460V
Capacity: 118000/142000 Btu/hr
EER: 11.6/11.6 Btu/Wh

Refrigerant: R134A
Electrical source: Ph3 50HZ 380-420V/60HZ 460V
Capacity: 79500/96400 Btu/hr
EER: 11.5/11.35 Btu/Wh
ZR81KCE-TFD-522 Refrigerant: R407C
Electrical source: Ph3 50HZ 380-420V/60HZ 460V
Capacity: 63500/77000 Btu/hr
EER: 10.8/10.8 Btu/Wh

Refrigerant: R134A
Electrical source: Ph3 50HZ 380-420V/60HZ 460V
Capacity: 45400/55000 Btu/hr
EER: 11.3/11.1 Btu/Wh

Refrigerant: R22
Electrical source: Ph3 50HZ 380-420V/60HZ 460V
Capacity: 68000/82000 Btu/hr
EER: 11.7/11.8 Btu/Wh
ZR19M3-TWD-522 Refrigerant: R22
Electrical source: Ph3 50HZ 380-420V/60HZ 460V
Capacity: 157000/190000 Btu/hr
EER: 11.5/11.5 Btu/Wh
ZR47K3-TFD-522 Refrigerant: R22
Electrical source: Ph3 50HZ 380-420V/60HZ 460V
Capacity: 38800/47500 Btu/hr
EER: 11.3/11.4 Btu/Wh
Product Images

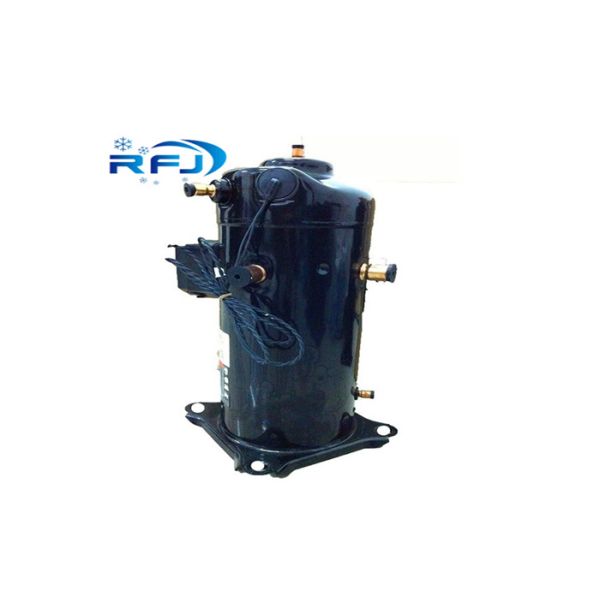

10HP 50Hz R407C Copeland Scroll Compressor ZR125KCE-TFD-450 10HP 50Hz R407C Copeland Scroll Compressor ZR125KCE-TFD-450

Copeland scroll compressor supplied as a direct replacement for the same model, widely used in refrigeration, air conditioning and heat pump systems.
